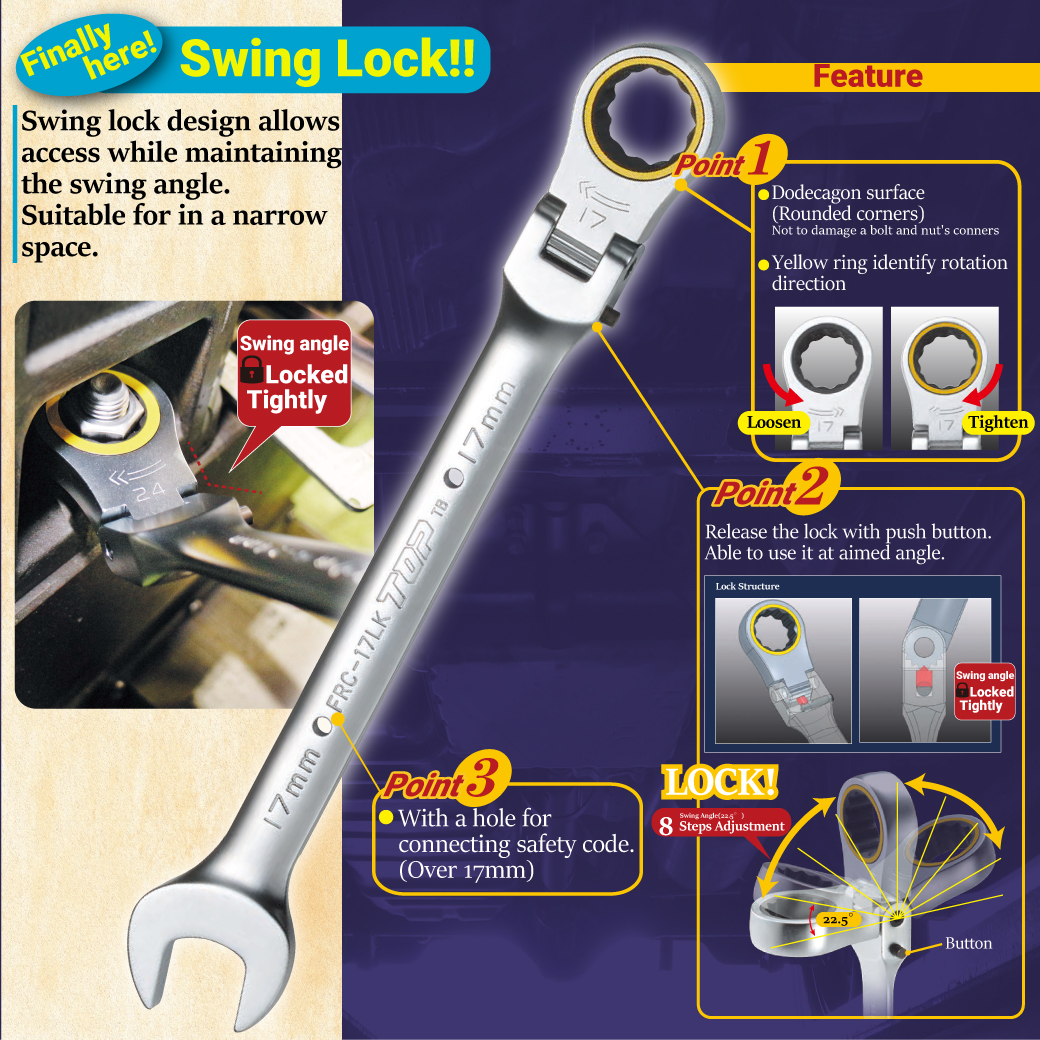

Swing lock design allows access while maintaining the swing angle.
Suitable for working in a narrow space.
Swing angle is 180°, locked 8 steps (Able to lock each 22.5°)
Move the ratchet 5° by fne gear 72°. The ratchet is driven by a fine angle of 5° with 72 gears.
Ratchet part has the intensity for a final tighten.
Able to discriminate the tighten and loosening rotation direction by the color.
Surface type that will not damage the bolt and nut.
17・19・21・22・24mm are with Φ4mm hole for safety code.

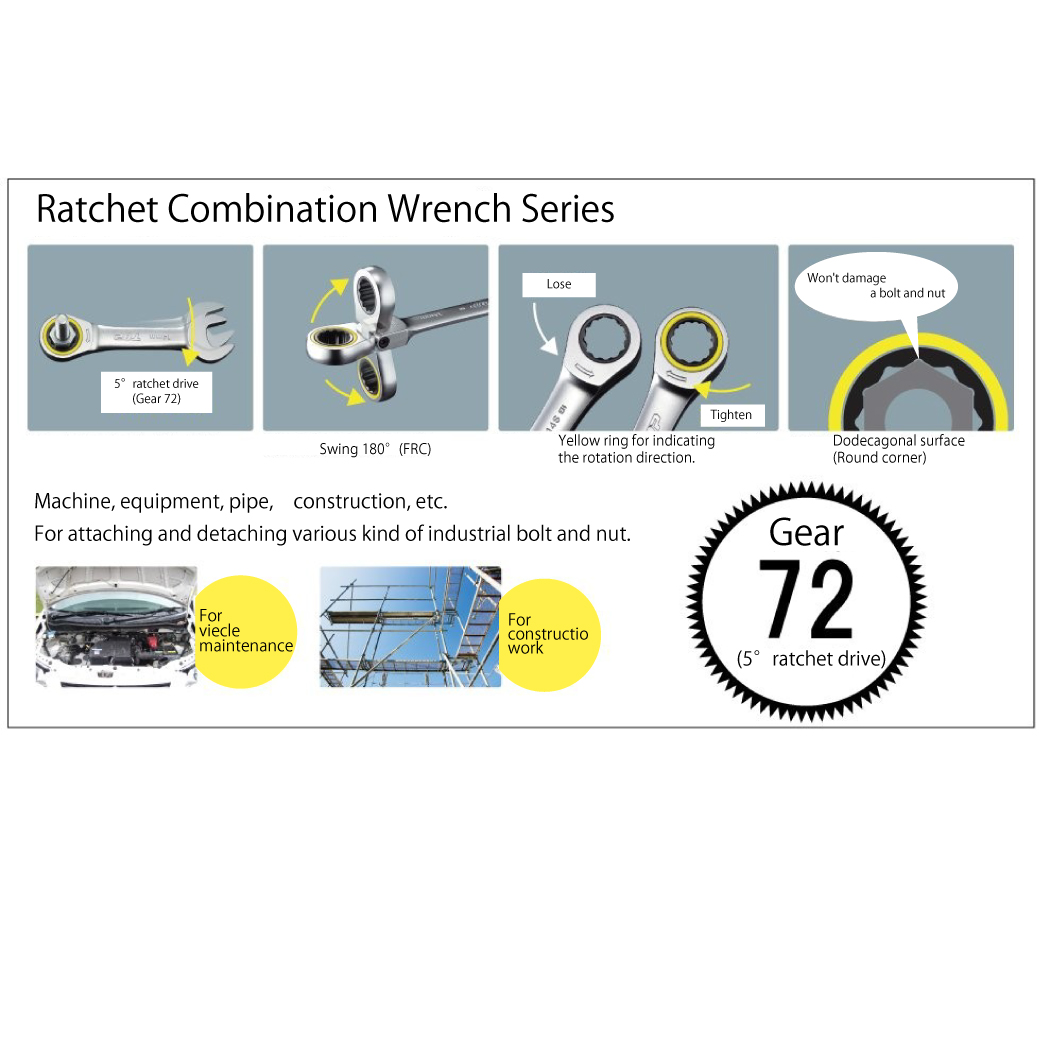

The Ratchet Combi® series has abundant lineup that you can choose according to your application!

Standard RATCHET COMBI® Click here
Super compact size that fits comfortably in the palm of your hand, SHORT RATCHET COMBI®
Able to freely adjusting the swing angle of 180, SWING RATCHET COMBI® Click here
Swing 180°, palm size SWING SHORT RATCHET COMBI®
A partition for each wrench to prevent falling apart and it is convenient, RATCHET COMBI HOLDER®

Material：Cr-V

Item No.	JAN Code	List Price （￥）	Content	Weight （ｇ）	Use	Inner Box

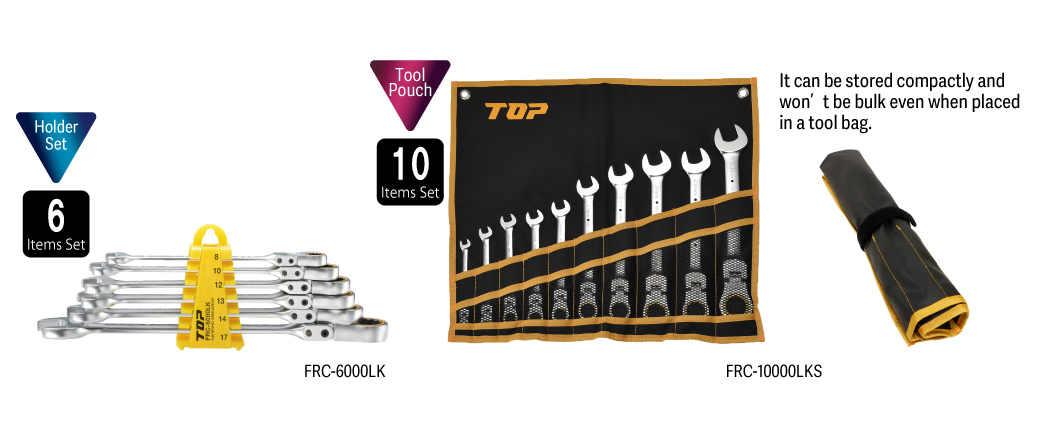

FRC-6000LK	407184	36,850	FRC-8LK・10LK・12LK・13LK 14LK・17LK・Holder	630	Holder	2 sets
FRC-10000LKS	407191	80,100	FRC-8LK・10LK・12LK・13LK 14LK・17LK・19LK・21LK・22LK 24LK・Tool Bag	2,300	Tool Bag	1 set

Item No.	JAN Code	List Price （￥）	Width Across Flats （mm）	Length L （mm）	Weight （ｇ）	Inner Box
FRC-7LK	407108	5,300	7	140	42	6 pcs
FRC-8LK	407207	5,300	8	140	39	6 pcs
FRC-10LK	407221	5,400	10	160	66	6 pcs
FRC-12LK	407245	5,850	12	172	94	6 pcs
FRC-13LK	407252	6,100	13	178	107	6 pcs
FRC-14LK	407269	6,450	14	190	126	6 pcs
FRC-17LK	407290	7,600	17	225	198	6 pcs
FRC-19LK	407313	8,250	19	247	265	6 pcs
FRC-21LK	407320	10,200	21	275	369	6 pcs
FRC-22LK	407337	10,800	22	〃	370	6 pcs
FRC-24LK	407351	11,800	24	312	575	6 pcs

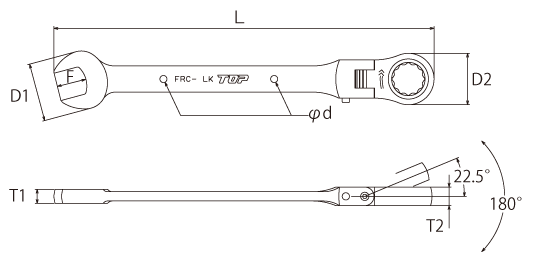

Item No.	Opening Width		Opening Depth	Head Thickness		Guaranteed Torque 　N・ｍ		Φd(mm)
Item No.	Spanner D1(mm)	Ratchet D2(mm)	F(mm)	Supanner T1(mm)	Ratchet T2(mm)	Supaner	Ratchet	Φd(mm)
FRC-7LK	16.5	17	8.5	4.8	6.8	9.8	17.5	–
FRC-8LK	16.5	17	8.5	4.8	6.8	15	21	–
FRC-10LK	21	20.5	10.3	5.7	8	30	42	–
FRC-12LK	25	23.3	12.9	6	8.6	50	69	–
FRC-13LK	27	25.2	13.3	6.3	8.9	62	83	–
FRC-14LK	29	27.5	14.4	6.8	9.3	78	110	–
FRC-17LK	35.5	32.3	17.8	7.3	10.9	132	179	4
FRC-19LK	39.7	34	19.7	7.8	12.3	170	220	〃
FRC-21LK	45.5	38.6	22.1	8.9	13	226	267	〃
FRC-22LK	〃	〃	24.3	〃	〃	255	296	〃
FRC-24LK	50.3	49	27.1	9.8	14.5	320	330	〃

*JAN Codes are shown by 6 digits numbers which removed as maker code (4975180).

*The price is for each unit.

12 points (round corners)12 points (round corners) sockets are easier to insert nut. This surface fit design prevents damaging of bolts or nuts.

Suitable for attaching and detaching machine, equipment, piping, construction, or etc.
Able to widely use it for electronic components and maintenance tools.
