Ratchet Combi®

Ratchet Combi®

  • 72 gears. 5°Ratchet drive.
  • Ratchet part is strong enough for final tighten.
  • Bihexagon surface not to damage bolt/nut.

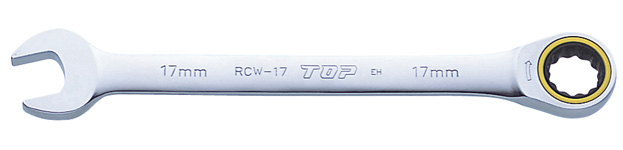

  • 17・19・21・22・24㎜ are with ring for safety code.



























Item No. JAN code List Price(¥) Contain W(g) Specification Inner Box

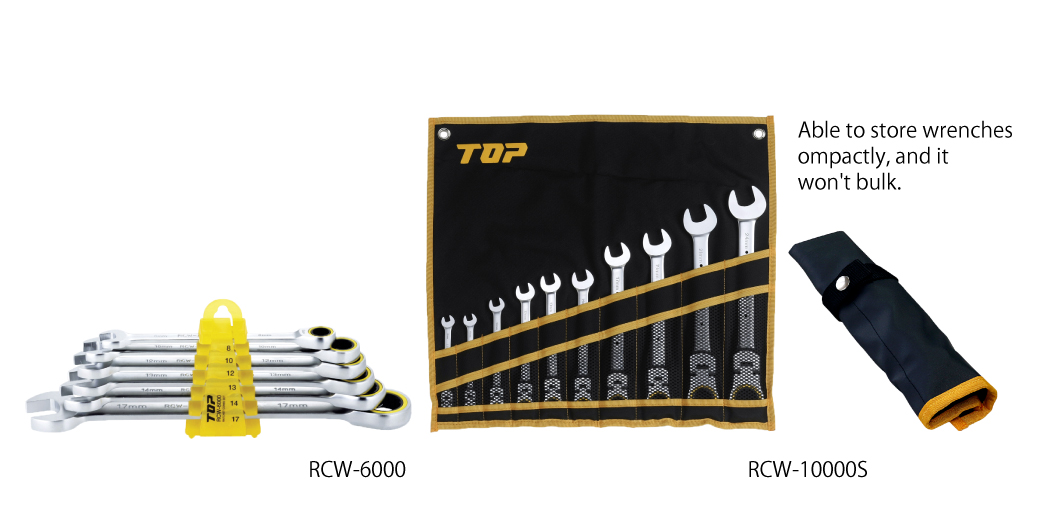

RCW-6000 409058 15,850 RCW-8・10・12・13・14・17・Holder 555 Holder 2 set
RCW-10000S 409065 32,050 RCW-RCW-7・8・10・12・13・14・17・
19・21・24・RCW-10S-K(Tool Bag)
1,790 Tool Bag 1 set
Item No. JAN code List Price(¥) Use of Range(㎜) L(㎜) W(g) Inner Box
RCW-7 409072 2,150 7 140 35 6 pcs
RCW-8 409089 2,150 8 140 35 6 pcs
RCW-9 409096 2,150 9 160 60 6 pcs
RCW-10 409102 2,250 10 160 55 6 pcs
RCW-11 409119 2,400 11 165 70 6 pcs
RCW-12 409126 2,550 12 172 75 6 pcs
RCW-13 409133 2,700 13 178 90 6 pcs
RCW-14 409140 2,850 14 190 110 6 pcs
RCW-15 409157 3,000 15 200 135 6 pcs
RCW-16 409164 3,250 16 206 150 6 pcs
RCW-17 409171 3,350 17 225 170 6 pcs
RCW-18 409188 3,600 18 235 210 6 pcs
RCW-19 409195 3,700 19 248 225 6 pcs
RCW-21 409218 4,200 21 290 345 6 pcs
RCW-22 409225 4,550 22 290 365 6 pcs
RCW-24 409249 5,000 24 334 500 6 pcs
Item No. Jaw Width

D (mm)

Jaw Depth (mm) Head Thickness

T (mm)

Torque N・m Material
Spanner Ratchet F Spanner Ratchet Spanner Ratchet
RCW-7 16.5 16.7 8.5 4.8 6.6 9.8 25 Cr-V
RCW-8 16.5 16.7 8.5 4.8 6.6 15 30 Cr-V
RCW-9 21.5 21.5 11.0 5.5 7.3 23 44 Cr-V
RCW-10 20.5 20.5 11.0 5.7 7.9 30 60 Cr-V
RCW-11 23.5 23.5 13.4 6.0 8.3 40 80 Cr-V
RCW-12 25.0 22.8 13.4 6.0 8.5 50 98 Cr-V
RCW-13 27.0 25.2 14.0 6.3 8.8 62 118 Cr-V
RCW-14 29.0 27.5 15.0 7.0 9.2 78 157 Cr-V
RCW-15 32.0 29.5 17.5 7.5 9.5 95 186 Cr-V
RCW-16 33.5 31.0 17.5 7.5 9.5 118 216 Cr-V
RCW-17 35.5 32.3 18.7 7.3 10.8 132 255 Cr-V
RCW-18 37.0 34.5 20.0 8.5 10.2 155 275 Cr-V
RCW-19 39.7 34.5 21.0 7.8 12.2 170 315 Cr-V
RCW-21 45.5 42.0 22.8 8.9 13.0 226 382 Cr-V
RCW-22 45.5 42.0 22.8 8.9 13.0 255 422 Cr-V
RCW-24 52.0 48.5 26.5 9.8 14.5 320 471 Cr-V
※JAN codes are shown without the first digital maker code(4975180).
※List Price is for each unit.

Item No.  RCW-7 RCW-8 RCW-9 RCW-10 RCW-11 RCW-12 RCW-13 RCW-14 RCW-15 RCW-16 RCW-17 RCW-18 RCW-19 RCW-21 RCW-22 RCW-24 RCW-6000 RCW-10000S

  • 12 points (round corners)

    12 points (round corners)12 points (round corners) sockets are easier to insert nut. This surface fit design prevents damaging of bolts or nuts.

Use

  • For various kind of industrial bolt/nut.
  • Also for maintenance tool of electronics/vehicles.

Caution

  • Chose size which suit to bolt/nut.
  • Grasp bolt/nut firmly.
  • DO NOT add pipes as extension.
  • DO NOT use as a hammer.
  • DO NOT use as any other purposes than as hand tool.
