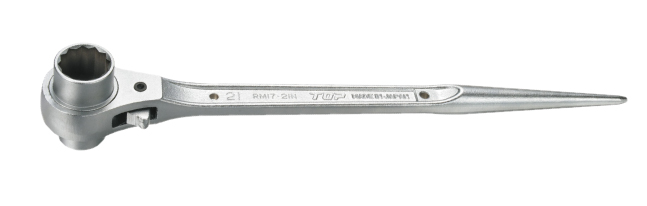

DOUBLE-SIZED RATCHET WRENCH

DOUBLE-SIZED RATCHET WRENCH(Metal plating)

  • Safty    Hight
    Desined preventing bolts and nuts penetrating and allowing for stable work, ensuring safety as you work at hights.
  • Strength　 High
    By strengthening even the smallest parts which is applied the most load, it brings the strength to withstand even the hard work.
  • Drive   Smooth
    Filling the head hole prevents contaminants from entering the gear part, it keeps smooth socket rotation.

Material：S55C(Body)/Cr-V(Socket)

Item No. List Price
（¥）		 Width Across Flats
（mm）		 Length
（mm）		 Weight
（g）		 Inner Box JAN Code
RM-17×19N-ST 4,950 17×19 310 430 6 391902
RM-17×21N-ST 4,600 17×21 310 430 6 391919
RM-19×24N-ST 5,800 19×24 310 430 6 391933
Item No. Head Diameter

D
（mm）

 Socket Diameter（mm） Head Thickness

T
（mm）

 Socket Length（mm） Guarantee Torque（N・m）
Small d1 Large d2 Small ℓ1 Largeℓ2 Small Large
RM-17×19N-ST 41 23.5 26 18 16 16 308.9 367.7
RM-17×21N-ST 41 23.5 28.5 18 16 16 308.9 426.6
RM-19×24N-ST 41 26 32.5 18 16 16 367.7 426.6
*JAN Codes are shown by 6 digits numbers which removed as maker code (4975180).
*The price is for each unit.

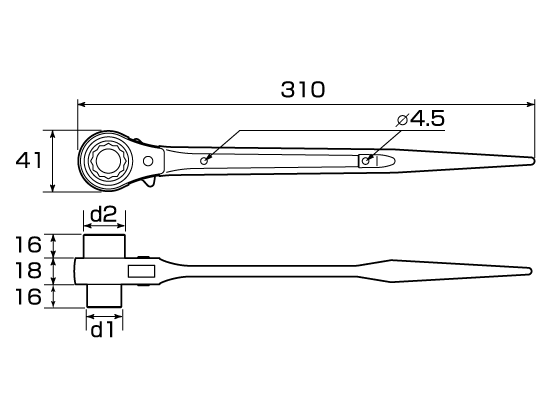

DOUBLE-SIZED RATCHET WRENCHDrawings

Use

Caution

  • Please use the size that matches the width across flats of the bolt and nut.
  • DO NOT extend the handle by inserting a pipe.
  • DO NOT use this item as a hammer.
  • Connect to safety code for fall prevention to use at height.
  • DO NOT use for purposes other than as a hand tool.
