DOUBLE-SIZED RATCHET WRENCH

DOUBLE-SIZED RATCHET WRENCH(With podger)

  • Not only the body, the claw is also forged and excellent strength.
  • Filled with hole on the head part during processing, it maintains smooth ratchet drive.
  • The podger is useful to aline the holes of steels.
  • The size φ4.5mm 2 holes for safety code.
  • Surface of the body is finished by cationic coating, it resists getting rusted.



Material：Cr-V

Item No. JAN Code List Price

（￥）

 Range

（mm）

 Length

（mm）

 Weight

（ｇ）

 Inner Box
RM-10×12 380166 5,,900 10・12 235 190 2
RM-10×13 382887 5,900 10・13 235 190 2
RM-10×14 380241 5,900 10・14 235 190 2
RM-11×13 382610 5,900 11・13 235 190 2
RM-12×14 380326 5,900 12・14 235 190 2
RM-13×17 382450 6,400 13・17 278 260 2
RM-14×15 385390 6,400 14・15 278 280 2
RM-14×17 380401 6,400 14・17 278 260 2
RM-13×19 380593 7,400 13・19 312 430 2
RM-16×18 380623 7,400 16・18 312 440 2
RM-17×19 380678 7,400 17・19 312 430 2
RM-17×21 380753 7,400 17・21 312 430 2
RM-17×22 382535 7,400 17・22 311 470 2
RM-19×21 380838 7,750 19・21 312 430 2
RM-19×22 380913 8,350 19・22 311 460 2
RM-19×24 381057 8,550 19・24 358 770 2
RM-21×24 381101 8,800 21・24 358 760 2
RM-21×26 381132 9,000 21・26 358 760 2
RM-21×27 382108 9,000 21・27 358 760 2
RM-22×24 381217 9,500 22・24 358 760 2
RM-22×27 382375 9,500 22・27 358 760 2
RM-23×26 382962 9,500 23・26 358 760 2
RM-24×26 381255 9,700 24・26 358 800 2
RM-24×27 381309 9,700 24・27 358 760 2
RM-24×30 381484 10,200 24・30 415 1,100 2
RM-26×32 381569 10,750 26・32 415 1,100 2
RM-27×30 381644 10,950 27・30 415 1,100 2
RM-27×32 381996 10,950 27・32 415 1,100 2
RM-30×32 385710 10,950 30・32 415 1,140 2
RM-32×35 381729 13,600 32・35 460 1,540 2
RM-32×36 382023 13,600 32・36 460 1,540 2
RM-35×41 381804 16,500 35・41 503 2,000 2
RM-36×41 382290 16,500 36・41 503 2,000 2
RM-41×46 383181 23,000 41・46 516 2,400 2
Item No. Head Diameter

（mm）

 Socket  Diameter

（mm）

 Head Thickness

（mm）

 Socket Length

（mm）

 Guaranteed Torque

（N・m）
D d1 d2 T ℓ1 ℓ2 Smaller Bigger
RM-10×12 30.5 14.0 16.4 15.5 11.0 11.0 98.1 98.1
RM-10×13 30.5 14.0 18.0 15.5 11.0 11.0 98.1 117.7
RM-10×14 30.5 14.0 19.0 15.5 11.0 11.0 98.1 132.4
RM-11×13 30.5 15.2 18.0 15.5 11.0 11.0 98.1 117.7
RM-12×14 30.5 16.4 19.0 15.5 11.0 11.0 98.1 132.4
RM-13×17 35.0 18.0 23.0 16.0 14.0 14.0 156.9 225.6
RM-14×15 35.0 19.0 20.0 16.0 14.0 14.0 176.5 205.9
RM-14×17 35.0 19.0 23.0 16.0 14.0 14.0 176.5 225.6
RM-13×19 41.0 18.0 26.0 18.0 16.0 16.0 156.9 367.7
RM-17×19 41.0 23.5 26.0 18.0 16.0 16.0 308.9 367.7
RM-17×21 41.0 23.5 28.5 18.0 16.0 16.0 308.9 426.6
RM-17×22 44.0 23.5 30.0 18.0 16.0 16.0 308.9 456.0
RM-19×21 41.0 26.0 28.5 18.0 16.0 16.0 367.7 426.6
RM-19×22 44.0 26.0 30.0 18.0 16.0 16.0 367.7 456.0
RM-19×24 52.0 27.0 33.5 20.0 18.0 18.0 367.7 514.8
RM-21×24 52.0 28.5 33.5 20.0 18.0 18.0 426.6 514.8
RM-21×26 52.0 30.0 35.0 20.0 18.0 18.0 426.6 573.7
RM-21×27 52.0 30.0 36.5 20.0 18.0 18.0 426.6 598.2
RM-22×24 52.0 30.0 32.5 20.0 18.0 18.0 367.7 514.8
RM-22×27 52.0 30.0 36.5 20.0 18.0 18.0 367.7 598.2
RM-23×26 52.0 31.5 35.0 20.0 18.0 18.0 485.4 573.7
RM-24×26 52.0 32.5 35.0 20.0 18.0 18.0 514.8 573.7
RM-24×27 52.0 32.5 36.5 20.0 18.0 18.0 514.8 598.2
RM-24×30 59.0 35.0 41.0 22.0 20.5 20.5 514.8 671.8
RM-26×32 59.0 35.0 43.0 22.0 20.5 20.5 573..7 720.8
RM-27×30 59.0 36.5 41.0 22.0 20.5 20.5 598.2 671.8
RM-27×32 59.0 36.5 43.0 22.0 20.5 20.5 598.2 720.8
RM-30×32 59.0 40.5 43.0 22.0 20.5 20.5 671.8 720.8
RM-32×35 67.0 43.0 47.0 24.0 21.5 21.5 720.8 794.3
RM-32×36 67.0 43.0 49.0 24.0 21.5 21.5 720.8 818.9
RM-35×41 75.0 47.0 55.0 26.0 24.0 24.0 794.3 941.4
RM-36×41 75.0 49.0 55.0 26.0 24.0 24.0 818.9 941.4
RM-41×46 82.0 55.0 61.5 28.0 24.0 24.0 941.4 1064.0
*JAN Codes are shown by 6 digits numbers which removed as maker code (4975180).
*The price is for each unit.

13　RM-10×14　RM-11×13　RM-12×14　RM-13×17　RM-13×19　RM-14×15　RM-14×17　RM-17×19　RM-17×21　RM-17×22　RM-19×21　RM-19×22　RM-19×24　RM-21×24　RM-21×26　RM-21×27　RM-22×24　RM-22×27　RM-23×26　RM-24×26　RM-24×27　RM-24×30　RM-26×32　RM-27×30　RM-27×32　RM-30×32　RM-32×35　RM-32×36　RM-35×41　RM-36×41　RM-41×46

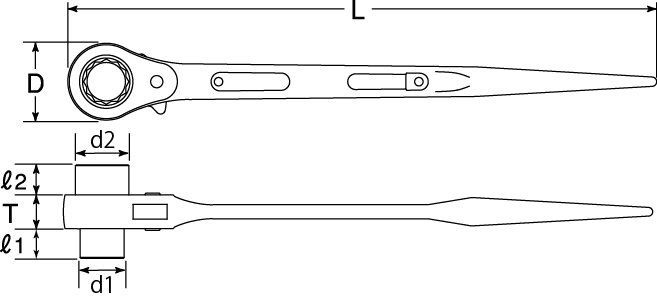

DOUBLE-SIZED RATCHET WRENCHDrawings

Use

  • Suitable for attaching and detaching  machine, equipment, piping, construction, or etc.
  • Suitable for bolts need to tighten tightly as well.

Caution

  • DO NOT extend the handle by inserting a pipe.
  • Please DO NOT use this item as a hammer.
  • Use fall preventive tool to use at high place.　（No hole for safety code on RM-35×41、36×41、41×46）
  • DO NOT use for purposes other than as hand tool.
