SWING RATCHET COMBINATION WRENCH

SWING RATCHET COMBINATION WRENCH

  • 72 gears and 5°ratchet drive.
  • Ratchet part is strong enough for final tighten.
  • Dodectagon surface not to damage bolt and nut.
  • 17・19・21・22・24mm are with ring for safety code.



Material:Cr-V

Item No. JAN Code List Price(¥) Content Weight(g) Inner Box

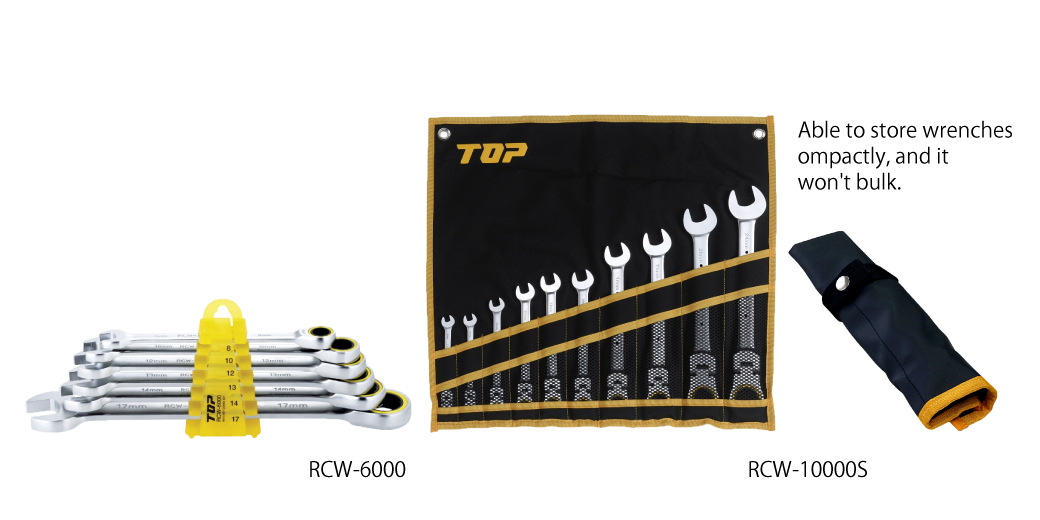

FRC-6000 409805 28,350 8・10・12・13・14・17・Holder 630 2 Set
FRC-10000S 409812 58,300 FRC-7・8・10・12・13・14・17・19・21・24・RCW-10S-K(Tool Bag) 1,985 1 Set
Item No. JAN Code Price List(¥) Range(mm) Length(mm) Weight(g) Inner Box
FRC-7 409317 4,100 7 140 39 6 pcs
FRC-8 409324 4,100 8 140 38 6 pcs
FRC-9 409331 4,100 9 153 52 6 pcs
FRC-10 409348 4,150 10 158 65 6 pcs
FRC-11 409355 4,300 11 167 75 6 pcs
FRC-12 409362 4,450 12 172 93 6 pcs
FRC-13 409379 4,650 13 178 106 6 pcs
FRC-14 409386 4,950 14 190 125 6 pcs
FRC-15 409393 5,350 15 200 147 6 pcs
FRC-16 409409 5,550 16 208 164 6 pcs

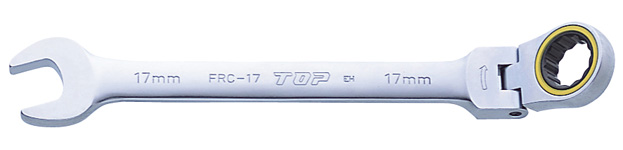

FRC-17 409416 5,900 17 225 197 6 pcs
FRC-18 409423 6,200 18 235 231 6 pcs
FRC-19 409430 6,450 19 247 264 6 pcs
FRC-21 409447 7,950 21 275 369 6 pcs
FRC-24 409461 9,250 24 312 574 6 pcs
Item No. Width of Jaw

D (mm)

Depth of Jaw (mm) Head Thickness

T (mm)

Guaranteed Torque

(N・m)

Spanner Ratchet F Spanner Ratchet Spanner Ratchet
FRC-7 16.5 17 8.5 4.8 6.8 9.8 25
FRC-8 16.5 17 8.5 4.8 6.8 15 30
FRC-9 18.5 19 9.6 4.9 7.4 23 44
FRC-10 21 20.5 10.3 5.7 8 30 60
FRC-11 22.5 22 11 5.8 8.3 40 80
FRC-12 25 23.3 12.9 6 8.6 50 98
FRC-13 27 25.2 13.3 6.3 8.9 62 118
FRC-14 29 27.5 14.4 6.8 9.3 78 157
FRC-15 31 28.9 15.6 6.9 9.8 95 186
FRC-16 33 30.5 16.6 7 10.4 118 216
FRC-17 35.5 32.4 17.8 7.3 10.9 132 255
FRC-18 37.2 33.4 19 7.5 11.1 155 275
FRC-19 39.7 34 19.7 7.8 12.3 170 315
FRC-21 45.5 38.6 22.1 8.9 13 226 382
FRC-24 52 49 27.1 9.8 14.5 320 471
*JAN Codes are shown by 6 digits numbers which removed as maker code (4975180).
*List Price is for each unit.



  • 12 points (round corners)

    12 points (round corners)12 points (round corners) sockets are easier to insert nut. This surface fit design prevents damaging of bolts or nuts.

Use

  • For various kind of industrial bolt and nut.
  • Also for maintenance tool of electronics and vehicles.

Caution

  • Chose proper size which suits to the size of bolt and nut.
  • DO NOT use this tool slant and shallowly to bolt and nut.
  • DO NOT extend the handle by inserting a pipe into the handle.
  • Please DO NOT use this item as a hammer.
  • DO NOT use for purposes other than as hand tool.
