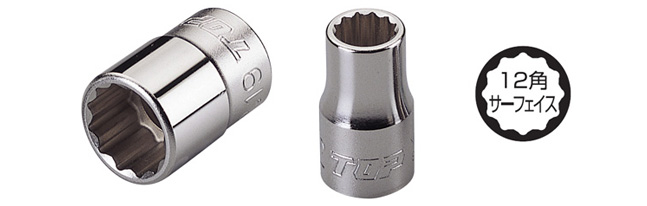

Socket for Socket Wrench

Socket for Socket Wrench(Insertion Square 9.5mm, 12.7mm, 19.0mm)

  • Dodecagon Serface. Less damage on bolt/nut. Quick insertion. For efficient work.
  • Insertion Square 9.5mm（3／8″）
  • Insertion Square 12.7mm（1／2″）
  • Insertion Square 19.0mm（3／4″）
Item No. List Price (￥) Opposit side Dimension(mm) L(mm) H(mm) D1(mm) D2(mm) W(g) Inner Box JANcode
S-306 700 6 26 3.5 9.9 17.3 20 5 797667
S-307 700 7 26 4 10.8 17.3 20 5 797742
S-308 700 8 26 5 12 17.3 22 5 797827
S-309 700 9 26 5 13.3 17.3 23 5 797902
S-310 700 10 26 6 14.5 17.3 24 5 798046
S-311 700 11 26 7 15.8 17.3 25 5 798121
S-312 750 12 26 8 16.8 17.3 25 5 798206
S-313 750 13 26 8 18 17 24 5 798398
S-314 750 14 27 10 19.5 18.5 31 5 798473
S-317 800 17 29 10 23.3 21.5 51 5 798558
S-319 850 19 30 12 25.8 23.5 63 5 798633
S-321 1,000 21 32 12 28 26 77 5 798718
S-322 1,050 22 32 14 29.5 26.5 82 5 798800
S-323 1,050 23 33 14 30.8 27.5 95 5 798985
S-324 1,100 24 34 14 32 28.5 102 5 771445

sashikomikaku_4■Material：SCM435　■ℓ：16㎜

Item No. List Price (￥) Oppsit side Dimension (mm) L(mm) H(mm) D1(mm) D2(mm) W(g) Inner Box JANcode
S-408 800 8 36 8 13.2 21 44 5 771766
S-409 800 9 37 8.5 13.8 21 44 5 771773
S-410 800 10 37 9 15.3 21 45 5 792600
S-411 800 11 37 9.5 16.5 21 46 5 792785
S-412 800 12 37 10 17.8 21 47 5 792860
S-413 800 13 37 10.5 19 22 53 5 792945
S-414 800 14 37 11 20.3 22 56 5 793089
S-415 900 15 37 11.5 21.5 22 52 5 772282
S-416 900 16 37 12 22.8 22 62 5 793249
S-417 900 17 37 12.5 23 23 69 5 793324
S-419 1,000 19 38 14 25 25 89 5 793591
S-421 1,050 21 38 15.5 29 27 102 5 793676
S-422 1,050 22 40 16 30 28 113 5 793751
S-423 1,050 23 40 16.5 31.5 29 128 5 793836
S-424 1,100 24 42 17 32.8 30 140 5 793911
S-426 1,200 26 42 19 35 32 165 5 794055
S-427 1,250 27 43 19.5 36.5 33 182 5 794130
S-429 1,550 29 43 20.5 39 35 205 5 794215
S-430 1,600 30 46 22 40 36 222 5 794307
S-432 1,650 32 46 23 42.8 38 250 5 794482
S-436 2,700 36 47 24 47.2 41 336 5 794567

lh_■Material：SCM435　■ℓ：24㎜

Item No. List Price (￥) Opposit side Dimension (mm) L(mm) H(mm) D1(mm) D2(mm) W(g) JANcode
S-617 2,000 17 50 10 26 34 175 805003
S-619 2,000 19 50 12 28.5 34 179 805010
S-621 2,000 21 50 12 31 34 185 805027
S-622 2,000 22 50 14 32 34 187 805034
S-623 2,100 23 50 14 33.5 34 187 805041
S-624 2,100 24 50 16 34.8 34 200 805058
S-626 2,200 26 50 16 37 34 222 805065
S-627 2,200 27 53 18 38.5 37 254 805072
S-628 2,500 28 53 18 39.5 38 298 805089
S-629 2,500 29 55 18 41 38 292 805096
S-630 2,500 30 55 20 42 38 301 805102
S-631 2,600 31 57 20 43.5 38 294 805119
S-632 2,600 32 57 22 44.5 40 351 805126
S-634 2,900 34 57 22 47 40 397 805133
S-635 2,900 35 59 22 48.5 42 422 805140
S-636 3,050 36 59 24 49.5 42 438 805157
S-638 3,300 38 59 24 52 45 523 805164
S-641 3,600 41 62 27 56 47 633 805171
S-642 4,350 42 62 27 57 47 652 805188
S-646 4,350 46 68 30 62 47 791 805195
S-650 5,600 50 68 33 67 48 880 805201
S-654 9,150 54 72 33 72 55 1,040 805218
S-655 9,150 55 72 36 73.5 53 1,006 805225
S-658 10,850 58 72 36 77 53 1,149 805232
S-660 11,100 60 76 39 79.5 58 1,402 805249
S-663 13,200 63 76 39 83.5 58 1,494 805256
S-665 13,500 65 80 42 86 63 1,608 805263

※JAN codes are shown without maker code (4975180)

Item No.　S-306　S-307　S-308　S-309　S-310　S-311　S-312　S-313　S-314　S-317　S-319　S-321　S-322　S-323　S-324　S-408　S-409　S-410　S-411　S-412　S-413　S-414　S-414.5　S-415　S-416　S-417　S-417.5　S-419　S-421　S-422　S-423　S-424　S-426　S-427　S-429　S-430　S-432　S-617　S-619　S-621　S-622　S-623　S-624　S-626　S-627　S-628　S-629　S-630　S-631　S-632　S-634　S-635　S-636　S-638　S-641　S-642　S-646　S-650　S-654　S-655　S-658　S-660　S-663　S-665

  • 12 points (round corners)

    12 points (round corners)12 points (round corners) sockets are easier to insert nut. This surface fit design prevents damaging of bolts or nuts.
