RATCHET HANDLE

RATCHET HANDLE(Square drive 9.5㎜・12.7㎜・19.0㎜)

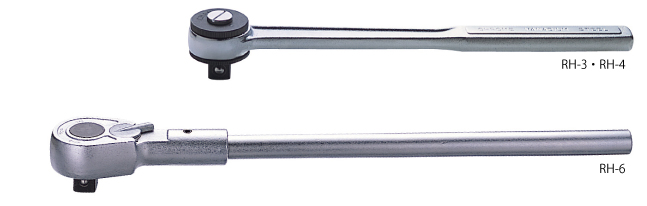

  • wide usage like for  automobile/machine maintenance.

RH-3・4

rh_34

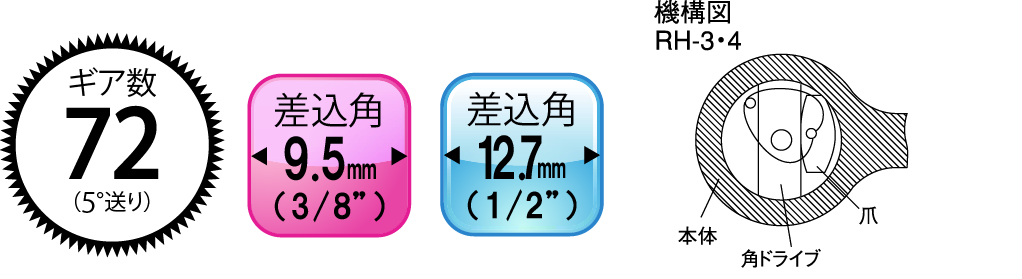

●It is our company’s original ratchet mechanism. the head is small and has 72 gears. able to resist high torque.

●compact head provide easier works in narrow space.

RH-6

rh_6









●Strong type designed for using for large vehicles and heavy machines.

●32 gears. the claw is direct connected with switching leaver.

●No screw is used for assembling.

rh_34_seihinnzurh_6_seihinnzu











■Materials:Cr-V(RH-3,RH-4)/S55C(RH-4N,RH-6)

Item No. Price(¥) Insertion S(mm) Weight (g) Maximum Torque (mm)
JANcode
RH-3 5,150 9.5(3/8″) 245 205.9 6 550774
RH-4 5,500 12.7(1/2″) 390 588.4 6 550859
RH-6 16,650 19.0(3/4″) 2,225 1,372.9 2 551078

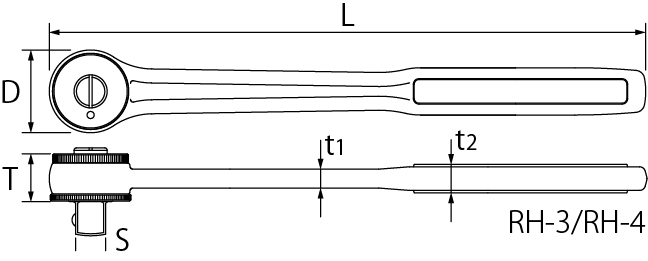

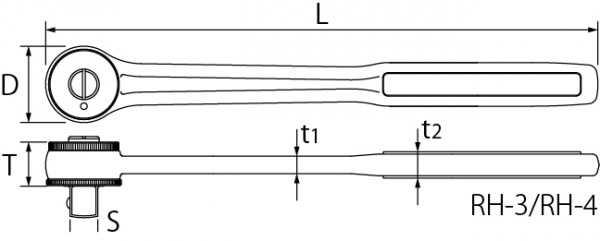

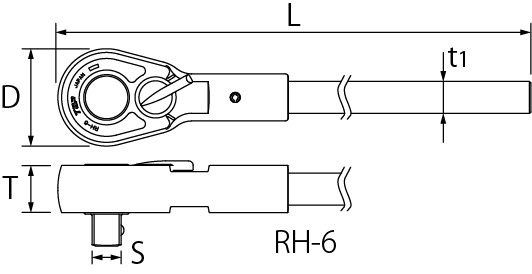

Item No. L(mm) D(mm) T(mm) t1(mm) t2(mm)
RH-3 200 32 16 6 11
RH-4 253 34 20 8 12
RH-6 500 62 31 21

HOW TO CARE

お手入れ方法

RH-3・4

oil sometime.

To get clear operating sound…

Splay  penetrating oil to outside

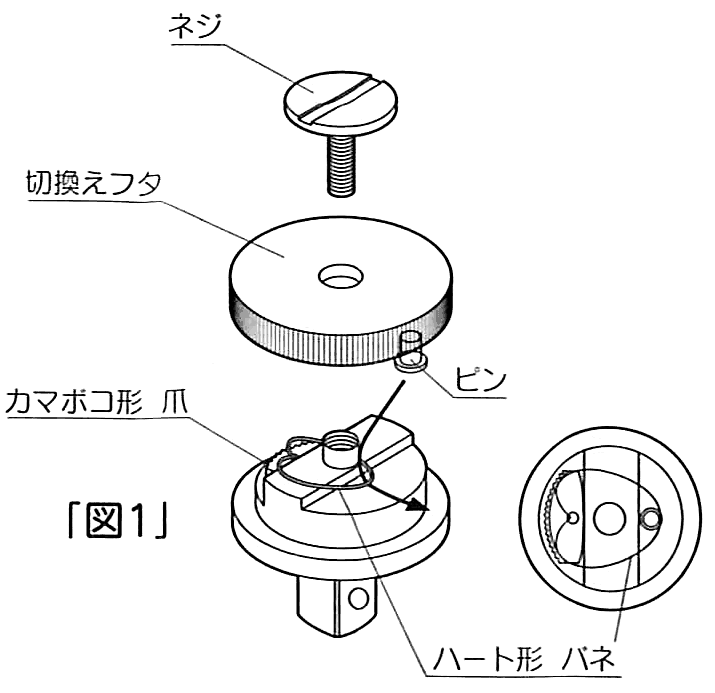

refer to the figure to assemble.

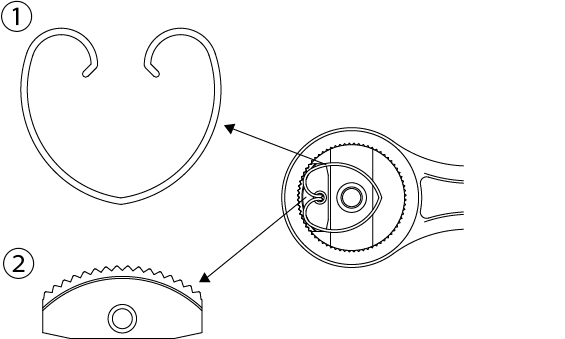

Repairing Parts

RH-部品

■①Heart Spring

Item No. Price(¥) JANcode Specification
RH-3-B 300 938152 For RH-3
RH-4-B 300 938169 For RH-4

■②Craw

Item No. Price(¥) JANcode Specification
RH-3-C 650 938237 For RH-3
RH-4-C 650 938244 For RH-4

※Repair parts are not same as normal pricing structure.

※JAN Codes are shown with 6 digital numbers which removed maker code (4975180).

※The price is for each unit.

Item No. RH-3 RH-4 RH-4N RH-6

Use

For automobile maintenance, machine maintenance and assembly

Caution

  • Please do not apply pressure by installing pipe to handle.
  • Please insert socket drive in its root.
  • Please use only as a hand tool.
