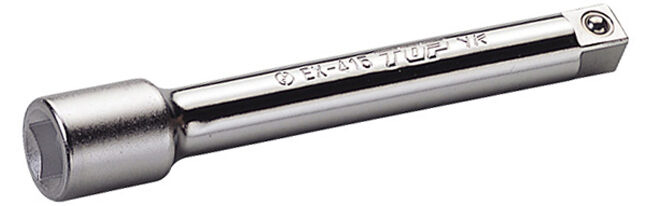

EXTENSION SOCKET

EXTENSION SOCKET(Square drive 9.5mm, 12.7mm, 19.0mm)

  • Suitable to work at narrow space with obstacle.
  • Insertion Square 9.5mm(3/8″)
  • Insertion Square 12.7mm(1/2″)
  • Insertion Square 19.0mm(3/4″)

差込角-3分

Item No. List Price(¥) Insertion Square(mm) L(mm) D(mm) ℓ(mm) W(g) Inner Box
JAN code
EX-3125 1,450 9.5(3/8”) 125 18 114.3 106 5 790903
EX-315 1,700 9.5(3/8”) 150 18 139.3 125 5 791382

sashikomikaku_4

Item No. List Price(¥) Insertion Square(mm) L(mm) D(mm) ℓ(mm) W(g) Inner Box
JAN code
EX-4075 1,700 12.7(1/2″) 75 24 60.4 138 5 791467
EX-415 2,000 12.7(1/2″) 150 24 135.4 266 5 791030
EX-425 2,500 12.7(1/2″) 250 24 235.4 358 5 791542

lh_

Item No. List Price(¥) Insertion Square(mm) L(mm) D(mm) ℓ(mm) W(g) Inner Box
JAN code
EX-6075 3,250 19.0(3/4″) 75 33.9 55 335 805270
EX-620 3,900 19.0(3/4″) 200 33.9 180 815 805287
EX-640 6,100 19.0(3/4″) 400 33.9 380 1,585 805294

※JAN codes are shown without maker code (4975180)

※List Price is for each unit.

Item No.

EX-3125 EX-315 EX-4075 EX-415 EX-425 EX-6075 EX-620 EX-640

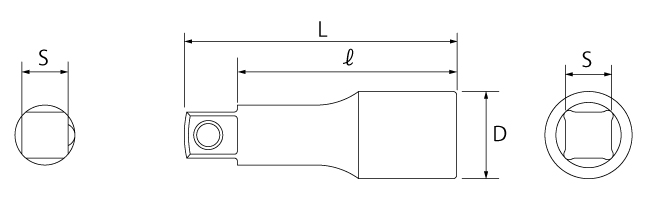

EXTENSION SOCKETDrawings
