RATCHET HANDLE

RATCHET HANDLE

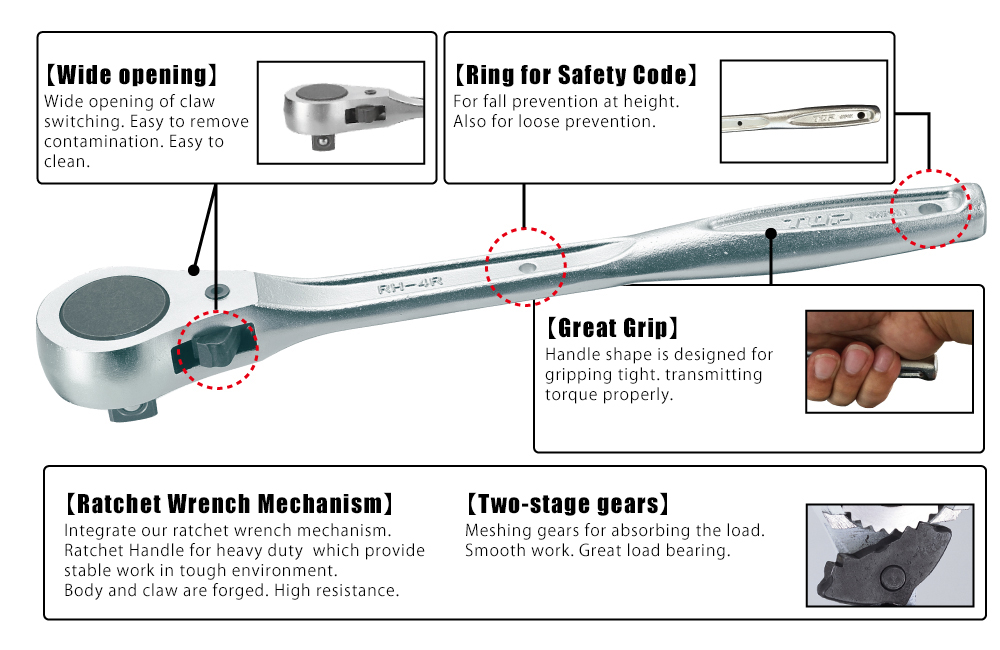

  • Opening of claw switching is wide. Easy to clean.
  • Ring for safety code. for fall prevention.
  • Easy to grip. the handle hang on your fifth finger by load on.
  • Ratchet mechanism.  stable work under tough environment.
  • Two stage gears. absorb the load firmly. Strong Load Residence.





RH-R-特長

4975180550910_3_2 4975180550903_4 4975180550910_4_2 4975180550910_4_3 ■材質:S55C

Item No. Price(¥) S(mm) Weight(g) Guaranteed Torque(N・m) Inner Box JAN code
RH-3R 5,150 9.5(3/8″) 270 205.9 6 550880
RH-4R 5,500 12.7(1/2″) 440 588.4 6 550903
RH-6R 16,650 19.0(3/4″) 1,850 1,412 1 550910
Item No. L(mm) D(mm) T(mm) t1(mm) t2(mm) φd1(mm) φd2(mm)
RH-3R 200 35 16 7 10 4 6
RH-4R 253 41 18 7.5 10 4.5 6
RH-6R 530 59 26 11.5 16 8

※JAN Codes are shown with 6 digital numbers which removed maker code (4975180).
※The price is for each unit.

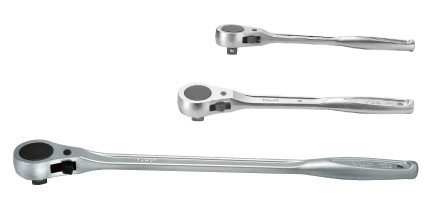

Item No.  RH-3R RH-4R RH-6R

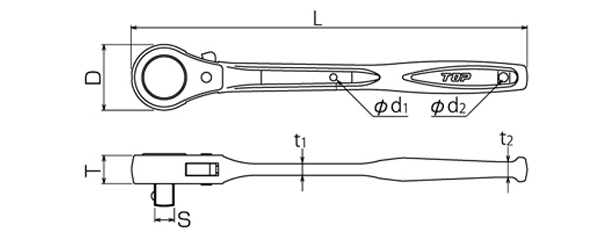

RATCHET HANDLEDrawings

  • Light weight design

    Light weight designEfficient performance with reducing weight and fatigue.

Use

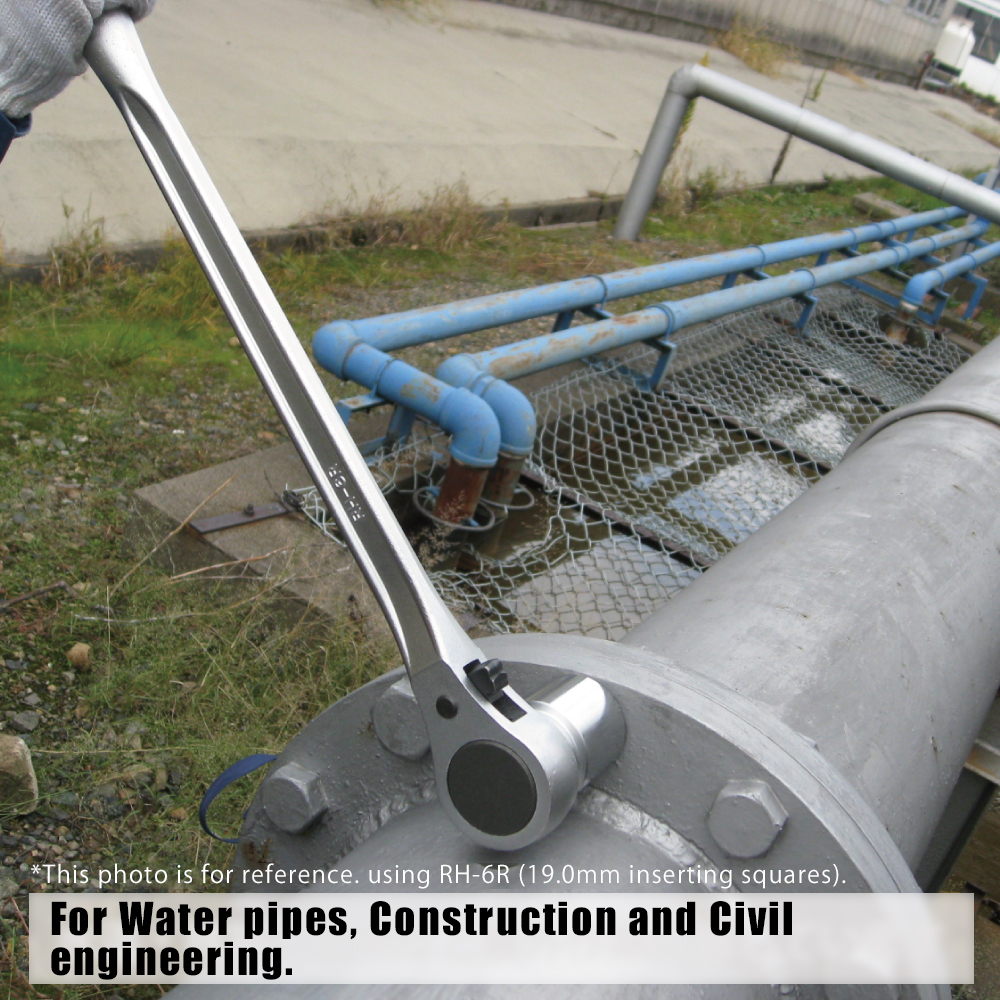

  • For plumbing, architecture, construction.

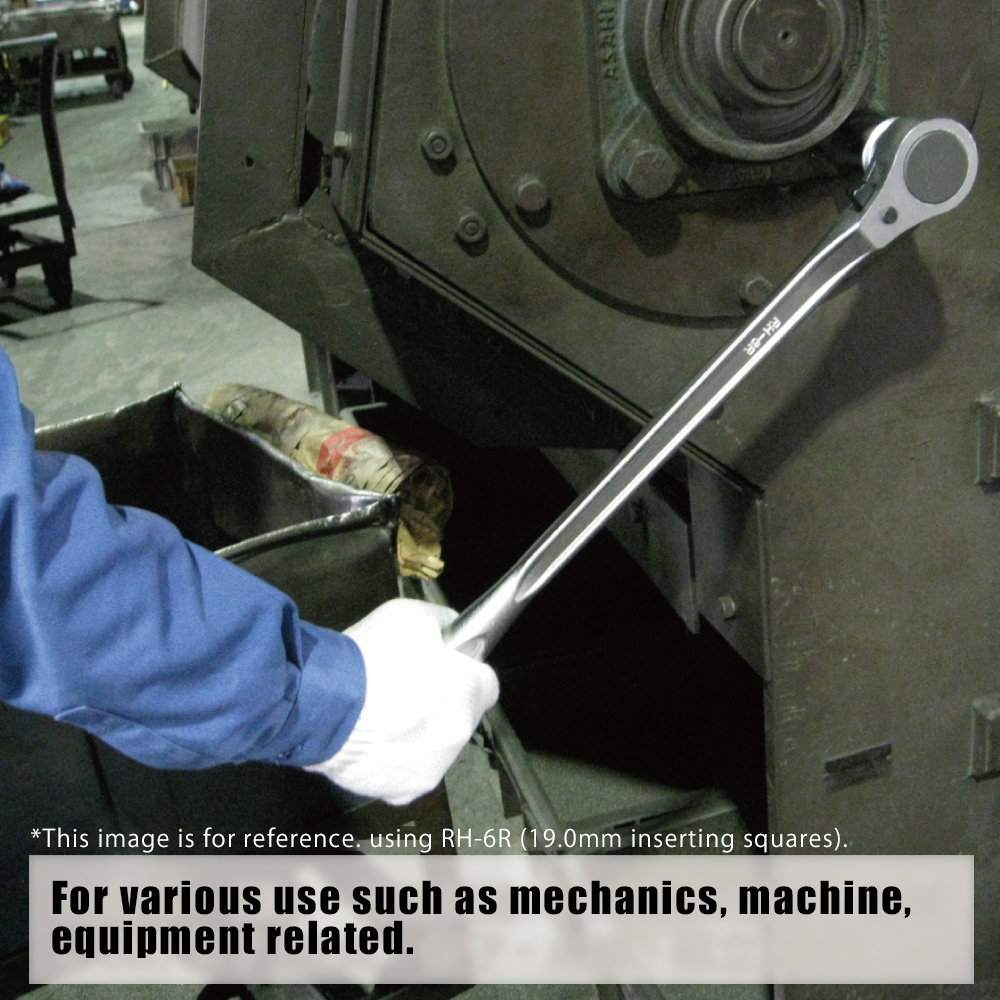

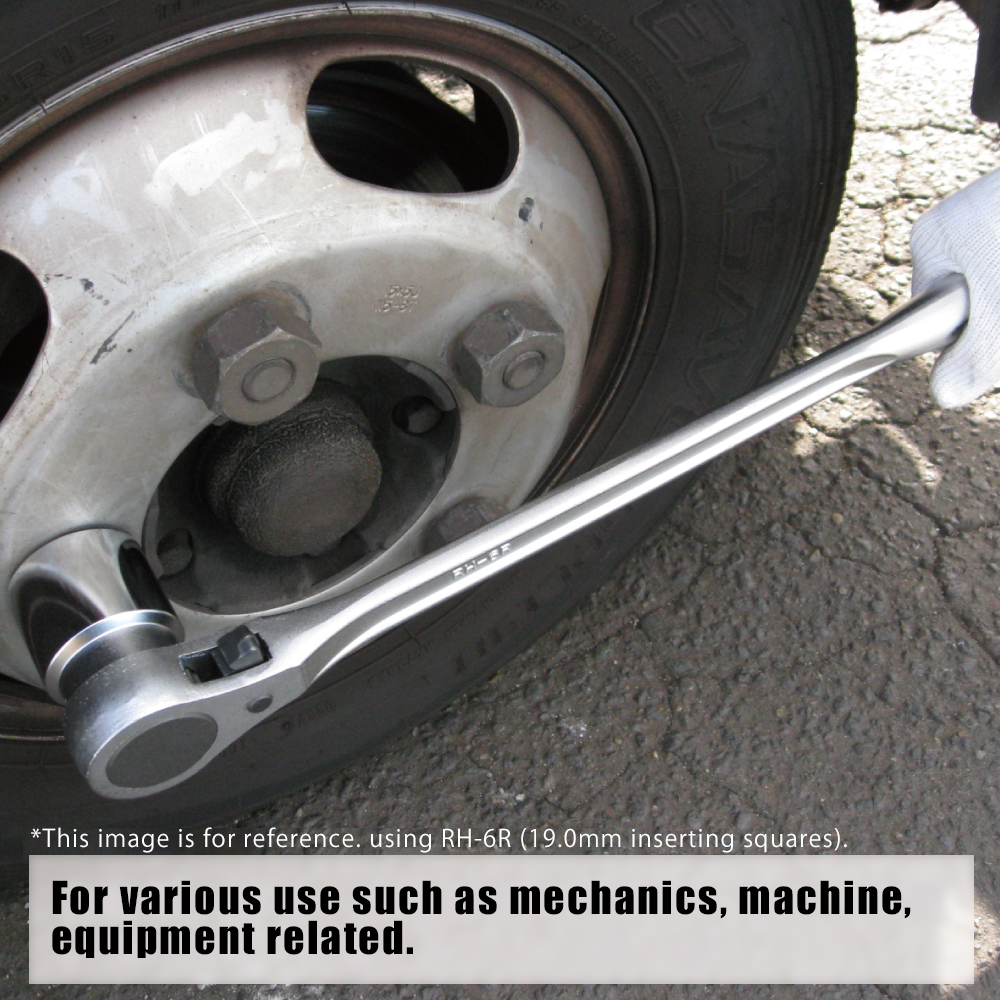

  • Various use

Caution

  • DO NOT add over power by installing pipe.
  • Install socket deeply.
  • Please use safety code at high place. We recommend using our safety code. Be careful not to drop parts of socket.
  • Do not use for any purposes than as hand tool
  • RH-6R has one ring for safety code.
