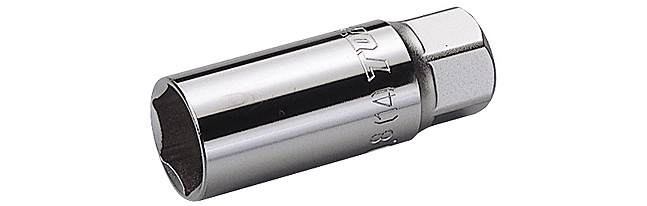

PLUG SOCKET

PLUG SOCKET(Square drive 9.5mm, 12.7mm)

  • Basic Hexagon Surface Socket. Less damage on bolt/nut. High Safety.
  • For attaching/detaching Spark plugs.
  • Insertion Square 9.5mm(3/8″)
  • Insertion Square 12.7mm(1/2″)

Material:SCM435

差込角9.5mm
■ℓ:11.5mm

Item No. List Price (¥) Insertion Square(mm) Opposite side Dimension
S(mm)
L(mm) H(mm) D1(mm) D2(mm) W(g) Inner Box JAN code
PS-316 2,400 9.5(3/8″) 16 70 19 21 17 100 5 790330
PS-320 2,700 9.5(3/8″) 20.8 70 27 27 22 140 5 790309

12.7mm角

■ℓ:16mm

Item No. List Price(¥) Insertion Square(mm) Opposite side Dimension
S(mm)
L(mm) H(mm) D1(mm) D2(mm) W(g) Inner Box JAN code
PS-416 2,200 12.7(1/2″) 16 70 19 21 21 100 5 790521
PS-420 2,600 12.7(1/2″) 20.8 70 27 27 22 135 5 790491

※JAN codes are shown without maker code (4975180)
※List Price is for each unit.
Item No. PS-316 PS-320 PS-416 PS-420

  • 6 points (round corners)

    6 points (round corners)6 points (round corners) socket has surface fit design which prevents damaging of bolts or nuts. 6 points sockets are standard for electric impact screw driver accessories.
