Screw Clamp

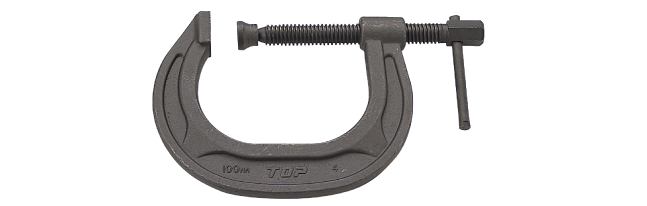

Screw Clamp(C-shaped)

  • As it is C shaped, able to use in place where there is depth.
  • Flame part is special form. No twist, No bend.  Able to use safely.
Item No. List Price
(¥)
Nominal Dimension
(mm)
Jse Opening
(mm)
Proof Load
(ton)
W
(g)
Inner Box JANcode
CC-50 4,400 50 50 2 540 6 352460
CC-75 6,000 75 75 2.5 1,150 2 352545
CC-100 8,150 100 100 3 1,990 2 352620
CC-125 11,550 125 125 3.5 3,300 2 352705
CC-150 17,200 150 150 4 4,650 2 352897
CC-200 39,500 200 200 4.5 8,600 1 352972
Item No. L
(mm)
D
(mm)

(mm)

(mm)

(mm)
CC-50 122 91 122.5 50 14
CC-75 165 125 160.5 75 17
CC-100 207 160 200.5 100 19
CC-125 247 200 239 125 22
CC-150 302 234 282 150 24
CC-200 394 303 356.5 200 26
※JAN codes are shown without maker code(4975180)
※List Price is for each unit.

Item No. CC-50 CC-75 CC-100 CC-125 CC-150 CC-200

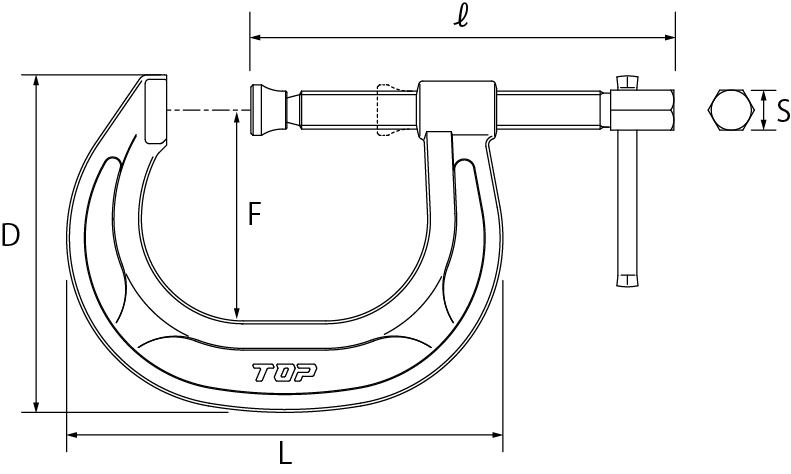

Screw ClampDrawings

  • It can be used by hand operation.

    It can be used by hand operation.This item can be used for not only electric impact screw drivers but also hand tools.

Use

  • For mounting, fixing.

Caution

  • DO NOT use as suspention tool/Pull metal fitting.
  • Use within proof load.
  • DO NOT use as scaffolding. Also NOT as connector of scaffolds.
  • Make sure to tighten screw properly.
  • DO NOT bit by hammer.
