| Item No. | List Price（￥） | Size of object（mm） | Loads （ton） | W
（ｇ） |
Inner Box (pcs) | JAN code | |
|---|---|---|---|---|---|---|---|
| Diameter | Thickness (with maximum diameter) | ||||||
| GP3-75 | 8,750 | 40～75 | 40 | 2 | 470 | 1 | 360809 |
| GP3-100 | 11,750 | 50～100 | 45 | 4 | 1,050 | 1 | 360991 |
| GP3-150 | 17,250 | 60～150 | 60 | 6 | 2,630 | 1 | 361028 |
| Item No. | H （mm） | S （mm） | t （mm） |
|---|---|---|---|
| GP3-75 | 95 | 14 | 2 |
| GP3-100 | 140 | 17 | 3 |
| GP3-150 | 220 | 19 | 3.5 |
※Set Screw of GP3-75 is without Adapter.

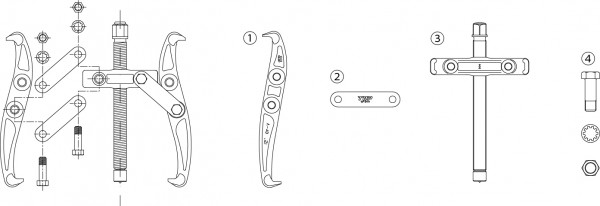

Reparing Parts
■①Claw (1 pce)
| Item No. | List Price （￥） |
JANcode | Specification |
|---|---|---|---|
| GP-75-N | 1,750 | 937001 | For GP-75・GP3-75 |
| GP-100-N | 2,300 | 937018 | For GP-100・GP3-100 |
| GP-150-N | 3,750 | 937025 | For GP-150・GP3-150 |
| GP-200-N | 7,950 | 937032 | For GP-200 |
| GP-250-N | 12,400 | 937049 | For GP-250 |
| GP-300-N | 17,000 | 937056 | For GP-300 |
■②Clip（2 pcs）
| Item No. | List Price （￥） |
JAN code | Specificcation |
|---|---|---|---|
| GP-75-C | 375 | 937186 | For GP-75・GP3-75 |
| GP-100-C | 425 | 937193 | For GP-100・GP3-100 |
| GP-150-C | 650 | 937209 | For GP-150・GP3-150 |
| GP-200-C | 1,500 | 937216 | For GP-200 |
| GP-250-C | 2,100 | 937223 | For GP-250 |
| GP-300-C | 2,750 | 937230 | For GP-300 |
■③Set of Set screw・Steel plate・Adapter (1 each)
| Item No. | List Price （￥） |
JAN code | Specification |
|---|---|---|---|
| GP-75-S | 3,950 | 937346 | For GP-75 （I set screw・1 steel plate） |
| GP-100-S | 6,250 | 937353 | For GP-100 |
| GP-150-S | 9,350 | 937360 | For GP-150 |
| GP-200-S | 18,950 | 937377 | For GP-200 |
| GP-250-S | 26,800 | 937384 | For GP-250 |
| GP-300-S | 33,500 | 937391 | For GP-300 |
| GP3-75-S | 6,650 | 937407 | For GP3-75 No adapter （1 set screw・1 steel plate） |
| GP3-100-S | 9,350 | 937414 | For GP3-100 |
| GP3-150-S | 13,100 | 937421 | For GP3-150 |
■④Set of Bolt・Nut・Washer（1 each）
| Item No. | List Price （￥） |
JAN code | Specification |
|---|---|---|---|
| GP-75-W | 225 | 937438 | For GP-75・GP3-75 |
| GP-100-W | 275 | 937445 | For GP-100・GP3-100 |
| GP-150-W | 500 | 937452 | For GP-150・GP3-150 |
| GP-200-W | 875 | 937469 | For GP-200 |
| GP-250-W | 1,850 | 937476 | For GP-250 |
| GP-300-W | 2,200 | 937483 | For GP-300 |
※JAN codes are shown without the first 7 digital maker code（4975180）.
※List Price is for each unit.

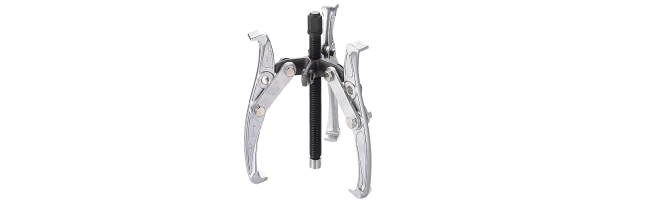

Item No. GP3-75 GP3-100 GP3-150 GP-75-N GP-100-N GP-150-N GP-75-C GP-100-C GP-150-C GP3-75-S GP3-100-S GP3-150-S GP-75-W GP-100-W GP-150-W Gear Puller
Use
- For removing gears of each machines/cars/vessels.
Caution

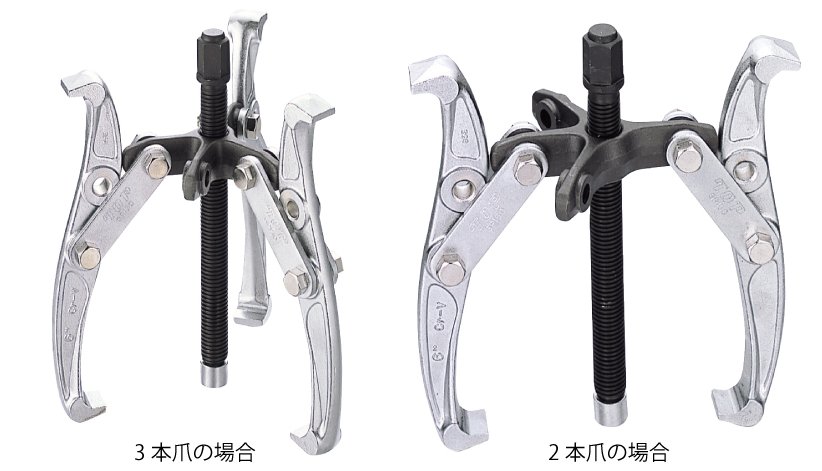

- GP3-75 is only for 3claws use.
- No adapter is attached to set screw of GP-75.
- hang claws to gear/pulley firmly. Set the tool parallel to the axis.
- DO NOT impact the tool by hammer.
- DO NOT use when you see crack/chip/abration/strain.
- DO NOT remodel the tool.
- Use only as a hand tool.
