Gear Puller

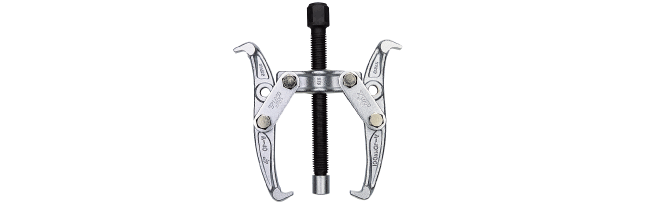

Gear Puller(2-claws)

  • 2 connecting holes on claw for  drawing gear・bearing・pulley. Able to catch wide object/object in deep point.
    (GP-75 has one connecting hole.)
  • Set screw is 30° trapezodial. Easy to draw gears. Withstand heavy loads.



Item No. List Price
(¥)
Size of object(mm) Load
(ton)
W
(g)
Inner Box (pcs) JANcode
Diameter Thickness

(with maximum diameter)

GP-75 5,800 40~75 40 2 350 1 360137
GP-100 8,100 50~100 45 4 755 1 360212
GP-150 12,700 60~150 60 6 1,820 1 360489
GP-200 27,000 80~200 100 10 3,730 1 360564
GP-250 49,500 100~250 120 12 6,100 1 360724
GP-300 61,750 120~300 130 15 8,500 1 360649
Item No. L
(mm)
H
(mm)
S
(mm)
T
(mm)
GP-75 68 95 14 2
GP-100 74 140 17 3
GP-150 106 220 19 3.5
GP-200 154 300 22 4
GP-250 190 339 30 5
GP-300 240 380 32 5

※No adapter is attached on Set screw of GP-75.

Reparing Parts

GP-部品

■①Claw (1 pce)

Item No. List Price
(¥)
JANcode Specification
GP-75-N 1,750 937001 For GP-75・GP3-75
GP-100-N 2,300 937018 For GP-100・GP3-100
GP-150-N 3,750 937025 For GP-150・GP3-150
GP-200-N 7,950 937032 For GP-200
GP-250-N 12,400 937049 For GP-250
GP-300-N 17,000 937056 For GP-300

■②Clip(2 pcs)

Item No. List Price
(¥)
JAN code Specificcation
GP-75-C 375 937186 For GP-75・GP3-75
GP-100-C 425 937193 For GP-100・GP3-100
GP-150-C 650 937209 For GP-150・GP3-150
GP-200-C 1,500 937216 For GP-200
GP-250-C 2,100 937223 For GP-250
GP-300-C 2,750 937230 For GP-300

■③Set of Set screw・Steel plate・Adapter  (1 each)

Item No. List Price
(¥)
JAN code Specification
GP-75-S 3,950 937346 For GP-75
(I set screw・1 steel plate)
GP-100-S 6,250 937353 For GP-100
GP-150-S 9,350 937360 For GP-150
GP-200-S 18,950 937377 For GP-200
GP-250-S 26,800 937384 For GP-250
GP-300-S 33,500 937391 For GP-300
GP3-75-S 6,650 937407 For GP3-75  No adapter
(1 set screw・1 steel plate)
GP3-100-S 9,350 937414 For GP3-100
GP3-150-S 13,100 937421 For GP3-150

■④Set of Bolt・Nut・Washer(1 each)

Item No. List Price
(¥)
JAN code Specification
GP-75-W 225 937438 For GP-75・GP3-75
GP-100-W 275 937445 For GP-100・GP3-100
GP-150-W 500 937452 For GP-150・GP3-150
GP-200-W 875 937469 For GP-200
GP-250-W 1,850 937476 For GP-250
GP-300-W 2,200 937483 For GP-300

※JAN codes are shown without the first 7 digital maker code(4975180).
※List Price is for each unit.

Item No.  GP-75 GP-100 GP-150 GP-200 GP-250 GP-300 GP-75-N GP-100-N GP-150-N GP-200-N GP-250-N GP-300-N GP-75-C GP-100-C GP-150-C GP-200-C GP-250-C GP-300-C GP-75-S GP-100-S GP-150-S GP-200-S GP-250-S GP-300-S GP-75-W GP-100-W GP-150-W GP-200-W GP-250-W GP-300-W  Gear Puller

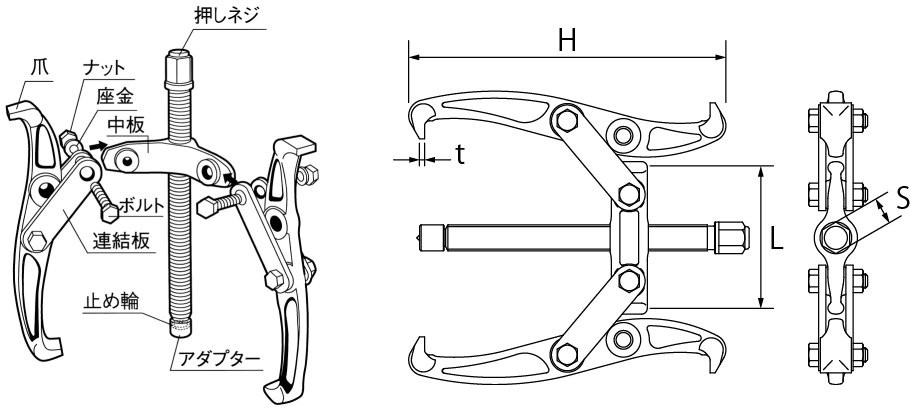

Gear PullerDrawings

Use

  • For removing gears of each machines/cars/vessels.

Caution

  • No adapter is attached to set screw of GP-75.
  • hang claws to gear/pulley firmly. Set the tool parallel to the axis.
  • DO NOT impact the tool by hammer.
  • DO NOT use when you see crack/chip/abration/strain.
  • DO NOT remodel the tool.
  • Use only as a hand tool.
