Screw Clamp

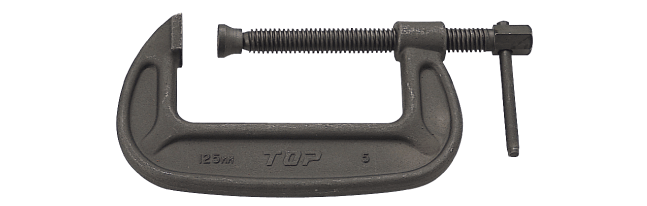

Screw Clamp(Bahco Shaped )

  • Set-screw is made by form rolling method. Able to resist long term use.
  • Flame part is special form. No twist, No bend.  Able to use safely.
Item No. List Price
(¥)
Nominal Dimension

(mm)

Jaw Opening
(mm)
Proof Load
(ton)
W
(g)
Inner Box JAN code
SC-25 2,250 25 25 2.4 220 6 350176
SC-38 2,600 38 40 2.5 320 6 350251
SC-50 3,050 50 52 2.6 450 6 350336
SC-75 3,950 75 77 2.8 800 6 350411
SC-100 5,950 100 102 3 1,200 6 350688
SC-125 7,950 125 126 3.3 2,000 2 350763
SC-150 9,850 150 153 3.6 2,860 2 350848
SC-200 15,350 200 200 4 3,900 2 350923
SC-250 28,000 250 252 6 5,500 1 351142
SC-300 49,500 300 305 7 10,500 1 351227
Item No. L
(mm)
D
(mm)

(mm)

(mm)

(mm)
SC-25 82 57 80 25 12
SC-38 100 66.5 98 32 12
SC-50 116 74.5 112.5 37 14
SC-75 155 92 150 45 14
SC-100 194 111.5 185.5 56 17
SC-125 233 128.5 218 65 19
SC-150 273 146 258 76 22
SC-200 332 168 311.5 96 24
SC-250 402 197 382.5 111 26
SC-300 480 233.5 458.5 125 27
※JAN codes are shown without maker code(4975180)
※List Price is for each unit.

Item No. SC-25 SC-38 SC-50 SC-75 SC-100 SC-125 SC-150 SC-200 SC-250 SC-300

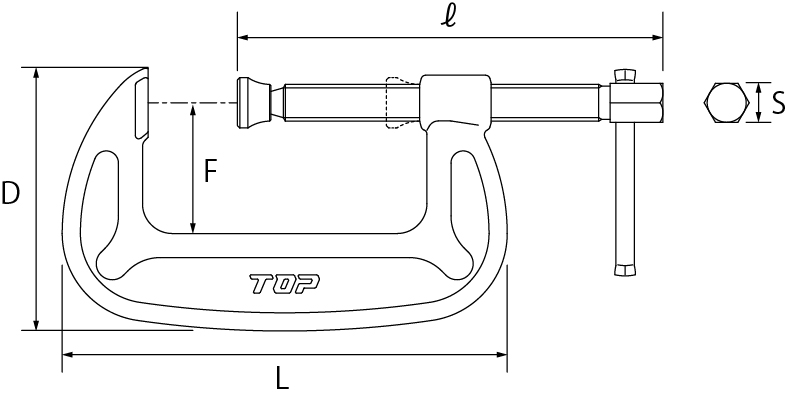

Screw ClampDrawings

  • It can be used by hand operation.

    It can be used by hand operation.This item can be used for not only electric impact screw drivers but also hand tools.

Use

  • For mounting, fixing.

Caution

  • DO NOT use as suspention tool/Pull metal fitting.
  • Use within proof load.
  • DO NOT use as scaffolding. Also NOT as connector of scaffolds.
  • Make sure to tighten screw properly.
  • DO NOT bit by hammer.
