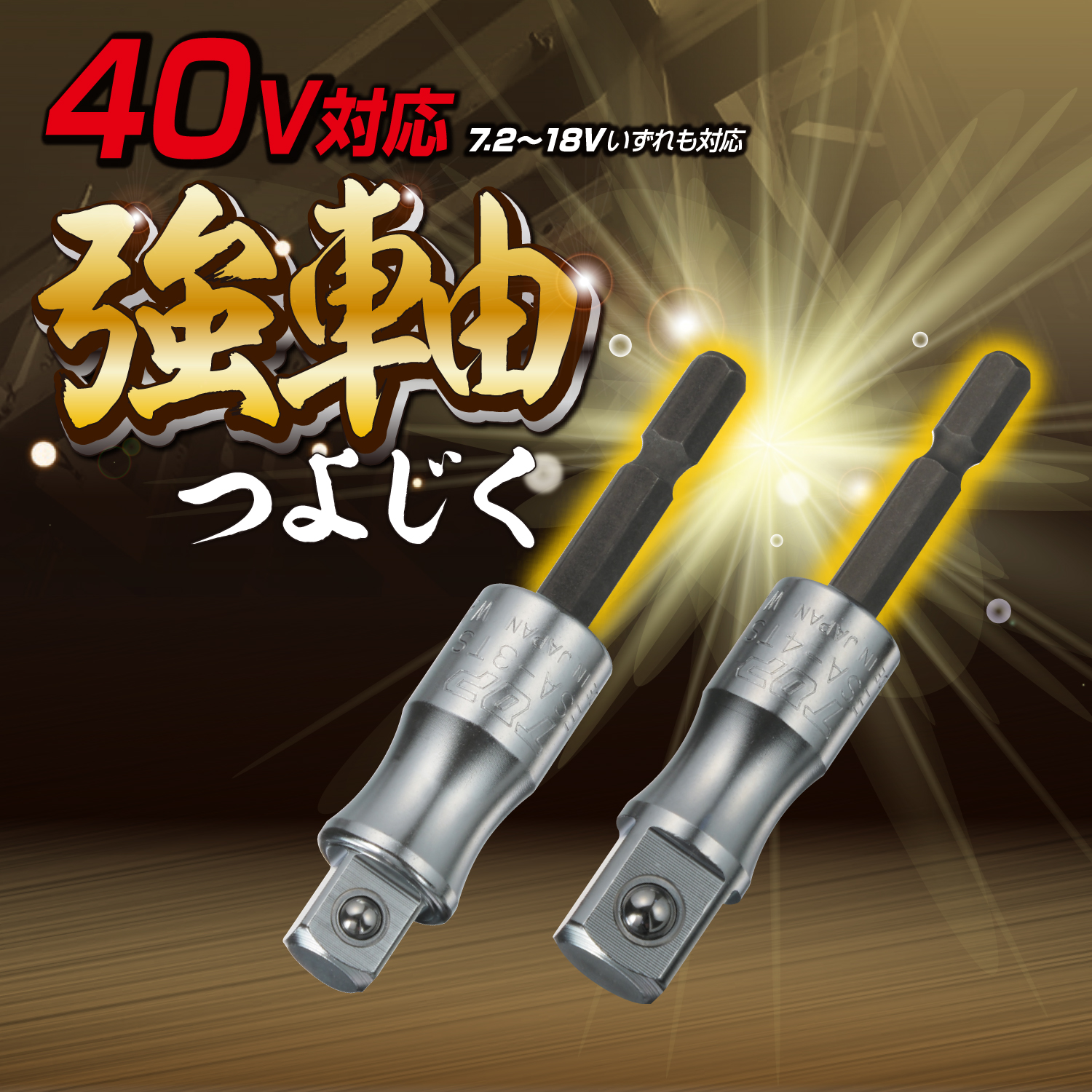

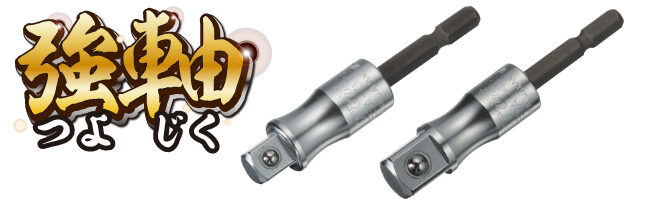

STRONG BIT SOCKET ADAPTER

STRONG BIT SOCKET ADAPTER(For Electric drill up to 40VInsert square 9.5mm/12.7mm ball stopper)

  • Up to 40V
  • Durability is more than 5 times compare with our EDS-C (when use with 40V)
  • Long Shank relieving torsional stress and prevent breaking.
  • Material of hex shank is high durability special steel.





差込角9.5mm 12.7mm角 ボール止めタイプ

Material:SCM435

Item No. List Price
(¥)
Insert Square
S(mm)
Weight
(g)
Inner Box JANcode
ESA-3TS 1,530 9.5(3/8″) 62 6 228963
ESA-4TS 1,580 12.7(1/2″) 72 6 228970
Item No. L(mm) ℓ(mm) Torque
(N・m)
Package(mm)
H×W
ESA-3TS 12.7 12 75 131×35
ESA-4TS 14.5 15 75 135×35
・JAN codes are start from 4975180.
・List price is for each unit.
ESA3TS ESA4TS つよじくソケットアダプター きょうじくソケットアダプター

STRONG BIT SOCKET ADAPTERDrawings

  • electric impact screw drivers

    electric impact screw driversIt can be used by ordinary electric impact screw drivers.

  • impact drill driver

    impact drill driverimpact drill driver which is more powerful than ordinary electric impact screw drivers.

  • 18V acceptable

    18V acceptableIt can be used for more torqueful 18V electric impact screw drivers.

Use

  • For attaching and detaching each bolt and nut
  • Ideal for high torque impact drivers.

Caution

  • Please use electric drill which has clutch or impact.
  • DO NOT apply too much pressure on bolt and nut.
  • Use only as a hand tool.
  • Use safely and properly within descripted torque.
