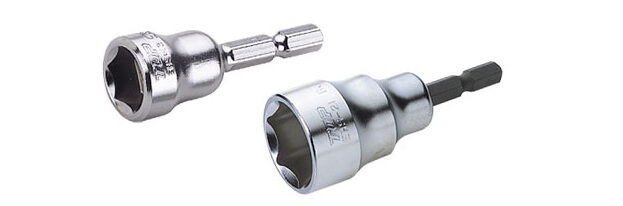

Short Socket for Electric Drill

Short Socket for Electric Drill

  • Depth dimension of Socket is designed to fit with bolt/nut.
  • EHS-17, Bigger sizes are press fitting type. Compatible 18V
  • TOP’s original stream-line form. Lightweight. Absorb shocks.
  • Hexagon shank is 6.35mm. Quick set to Impact driver.
  • Socket is hexagonal surface not to damage bolt/nut.
  • Depth dimension of Socket is designed to fit to bolt/nut.
  • Adopt selected materials. 100% made in Japan.
Item No. JAN code List Price
（￥）		 Opposite-side dimension
（㎜）		 L（㎜） W
（ｇ）		 Inner Box (Pcs)
EHS-5.5 220554 500 5.5 55 20 6
EHS-6 220547 550 6 55 22 6
EHS-7 220561 550 7 55 25 6
EHS-8 220578 570 8 55 25 6
EHS-10 220585 620 10 55 30 6
EHS-12 220592 640 12 55 30 6
EHS-13 220608 670 13 55 35 6
EHS-14 220615 700 14 55 35 6
EHS-17 220622 1,030 17 70 70 6
EHS-19 220639 1,290 19 70 80 6
EHS-21 220646 1,390 21 70 85 6
EHS-22 220660 1,520 22 70 85 6
EHS-24 220653 1,830 24 75 125 6
Item No. Socket outside diameter
D（mm）		 Hexagon Depth
H（mm）		 Socket Depth
ℓ（mm）		 Package（mm） Material Torque
（N・m）
H×W
EHS-5.5 9 3.5 20 107×35 SCM435 47
EHS-6 10 5 20 107×35 SCM435 47
EHS-7 13 5 20 107×35 SCM435 47
EHS-8 13 5 20 107×35 SCM435 47
EHS-10 16 6 20 107×35 SCM435 47
EHS-12 18 9 20 107×35 SCM435 47
EHS-13 20 9 20 107×35 SCM435 47
EHS-14 20 9 20 107×35 SCM435 47
EHS-17 23.5 10.5 27 122×35 SCM435 75
EHS-19 26 13 27 122×35 SCM435 75
EHS-21 28.5 14 27 122×35 SCM435 75
EHS-22 29.5 14 27 122×35 SCM435 75
EHS-24 32.8 17 32 122×35 SCM435 75
※JAN codes are shown without the first 7 digital number of maker code (4975180).
※List Price is for each unit.
Item No. EHS-5.5 EHS-6 EHS-7 EHS-8 EHS-10 EHS-12 EHS-13 EHS-14 EHS-17 EHS-19 EHS-21 EHS-22 EHS-24

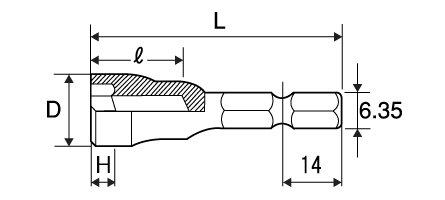

Short Socket for Electric DrillDrawings

  • electric impact screw drivers

    electric impact screw driversIt can be used by ordinary electric impact screw drivers.

  • Inserted shank

    Inserted shankThe shank is heat treated and inserted into socket by force. It endures twist and breakage.

  • impact drill driver

    impact drill driverimpact drill driver which is more powerful than ordinary electric impact screw drivers.

  • Light weight design

    Light weight designEfficient performance with reducing weight and fatigue.

  • 6 points (round corners)

    6 points (round corners)6 points (round corners) socket has surface fit design which prevents damaging of bolts or nuts. 6 points sockets are standard for electric impact screw driver accessories.

Use

  • For attaching/loosing each bolt/nut.

Caution

  • EHS-14, Smaller sizes ; Use within torque 47N・m
  • EHS-17, Bigger sizes ;  Use within torque 75Ｎ・m
  • Hexagon shank may be broken by too heavy loads.
  • Grab bolt/nut firmly to avoid breaking it.
  • Use Electric drill with clutch/impact.
  • DO NOT use as any other purposes than as hand tool.
