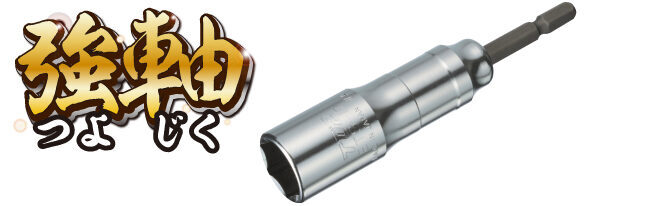

STRONG BIT SOCKET

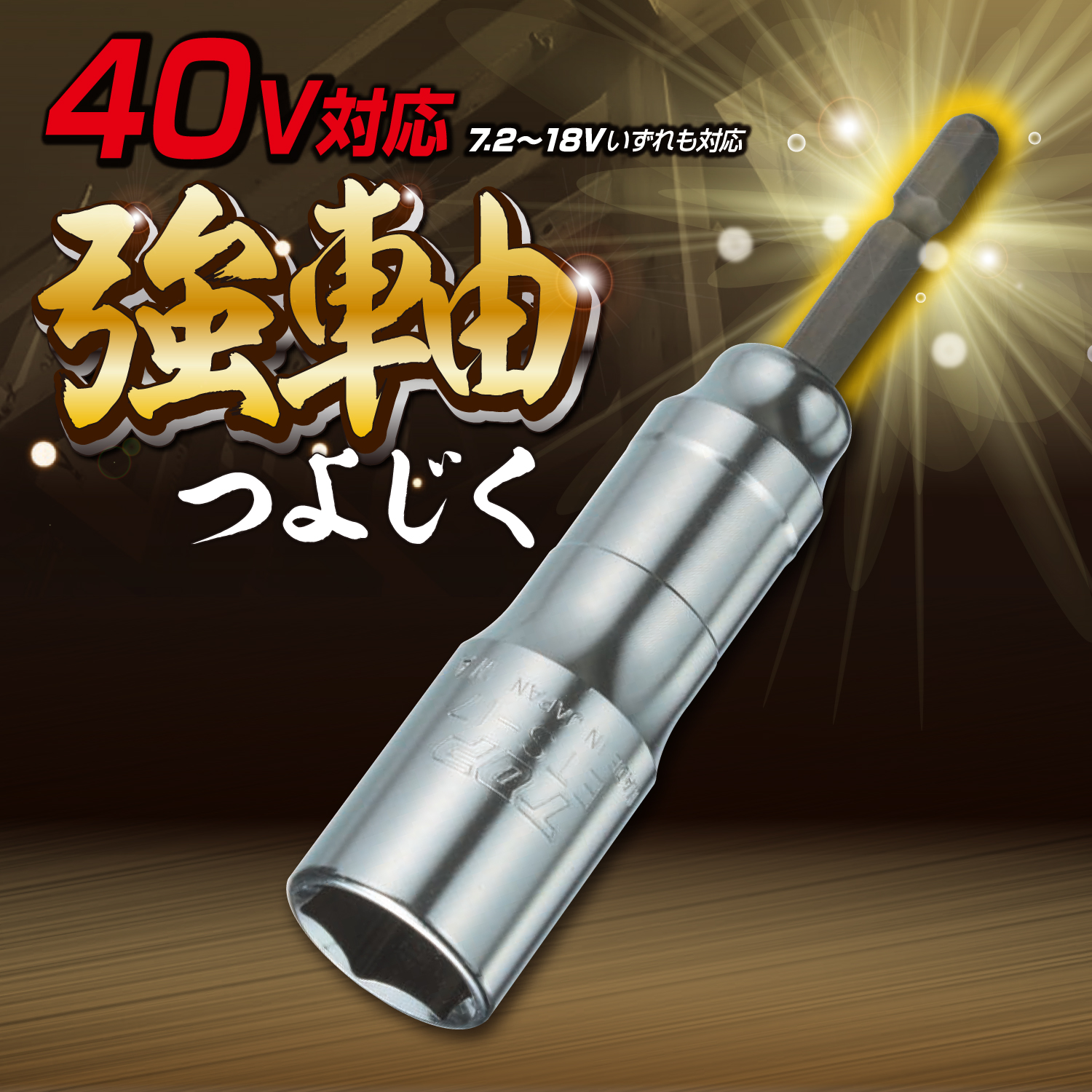

STRONG BIT SOCKET(40V)

  • Up to V40.  Supports 7.2~18V as well.
  • 5 times higher durability. ( Used 40V) (Compare to EDS-C)
  • The durability will be higher when you use it by 18V.

Up to 40V,  5 times higher durability.

  • Supported 40V impact drivers. ( Used 40V, Compare to EDS-C)

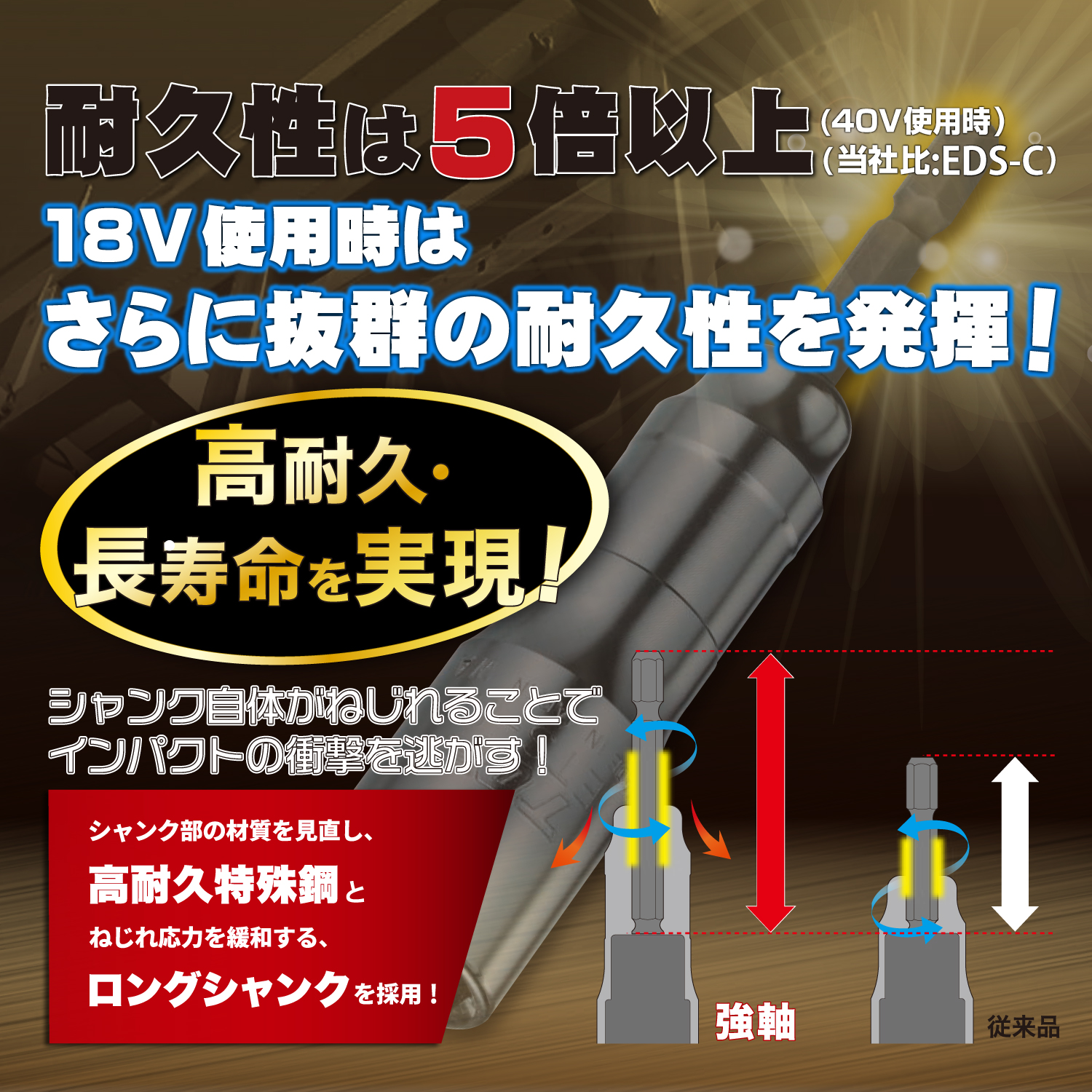

  • Due to adapted a long shank, ease  torsional stress and prevent breaking the shaft leads a high durability.
  • Changed shank’s material to highly durable special steel.
  • Hexagon surface

Material：SCM435

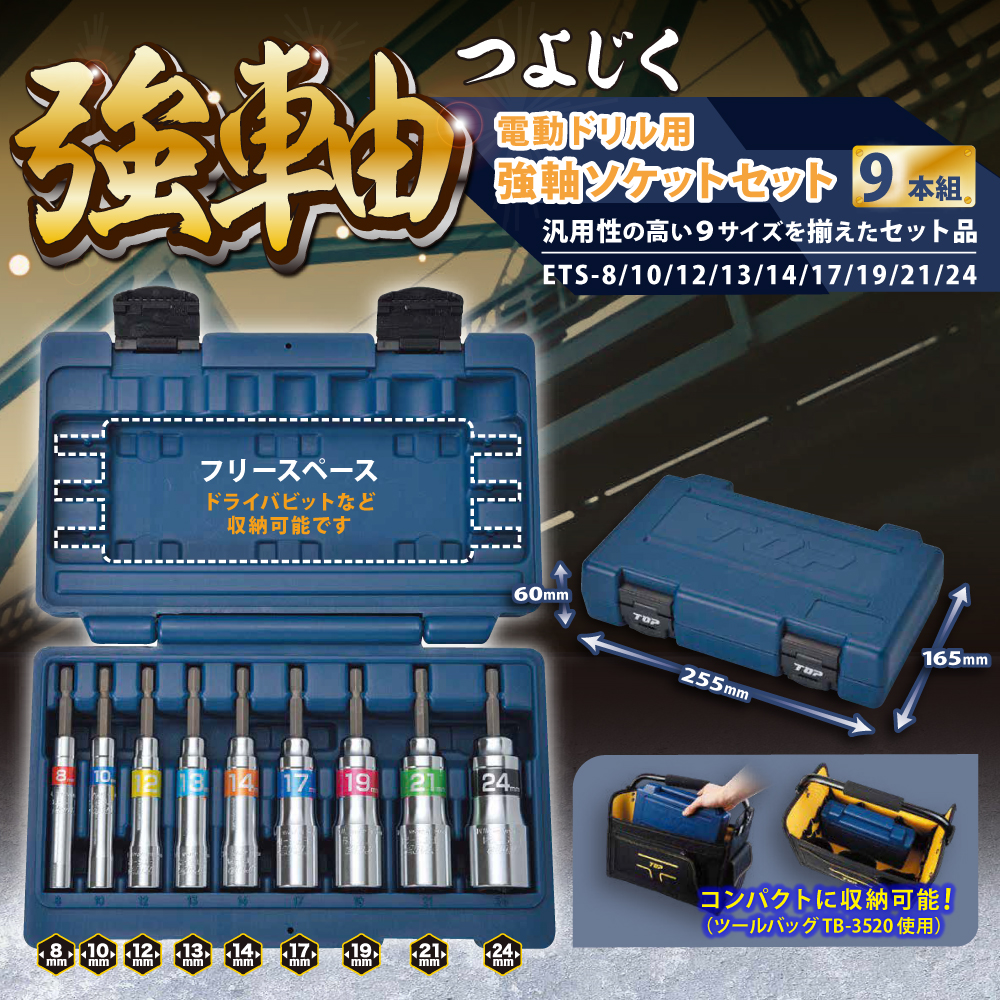

STRONG BIT SOCKET SET

Item No. List Price
（￥）		 Contains Case Color Weight
（g）		 Case Size（mm）
H×W×D		 JAN code
ETS-824S 22,750 ETS-8/10/12/13/14/17/19/21/24 NAVY BLUE 1.470 60×255×165 229106

STRONG BIT SOCKET

Item No. List Price
（￥）		 Width across flats
S（mm）		 Weight
（g）		 Inner Box JAN code
ETS-8 1,750 8 62 6 228703
ETS-10 1,750 10 65 6 228710
ETS-12 1,850 12 78 6 228727
ETS-13 1,980 13 85 6 228734
ETS-14 1,980 14 95 6 228741
ETS-16 2,050 16 120 6 228758
ETS-17 2,050 17 125 6 228765
ETS-18 2,180 18 140 6 228772
ETS-19 2,180 19 148 6 228789
ETS-21 2,330 21 170 6 228796
ETS-22 2,600 22 175 6 228802
ETS-24 3,500 24 230 6 228819
Item No. D（mm） H（mm） d（mm） Torque
（N・m）		 Box（mm）
H×W
ETS-8 12.7 12 8 75 160×35
ETS-10 14.5 15 10 75 160×35
ETS-12 17.5 20 12 75 160×35
ETS-13 17.9 20 13 75 160×35
ETS-14 19.7 20 14 75 160×35
ETS-16 22.5 30 16 75 160×35
ETS-17 23.5 30 17 75 160×35
ETS-18 25 30 18 75 160×35
ETS-19 26 30 19 75 160×35
ETS-21 28.5 30 21 75 160×35
ETS-22 29.5 30 22 75 160×35
ETS-24 32.8 30 24 75 160×35
・JAN Codes are shown by 6 digits numbers, which removed maker code (4975180).
・The List price is for each unit.
ETS8　ETS10　ETS12　ETS13　ETS14　ETS16　ETS17　ETS18　ETS19　ETS21　ETS22　ETS24　つよじくソケット　きょうじくソケット

  • electric impact screw drivers

    electric impact screw driversIt can be used by ordinary electric impact screw drivers.

  • Inserted shank

    Inserted shankThe shank is heat treated and inserted into socket by force. It endures twist and breakage.

  • impact drill driver

    impact drill driverimpact drill driver which is more powerful than ordinary electric impact screw drivers.

  • 6 points (round corners)

    6 points (round corners)6 points (round corners) socket has surface fit design which prevents damaging of bolts or nuts. 6 points sockets are standard for electric impact screw driver accessories.

  • 18V acceptable

    18V acceptableIt can be used for more torqueful 18V electric impact screw drivers.

Use

For attaching and detaching a bolt and a nut.
Best for high torque impact driver.



Caution

  • Please chose a screw driver with clutch and impact as you use.
  • DO NOT use it to be slantingl and shallowly.
  • DO NOT use for purposes other than as hand tool.
  • Please use within the level of guaranteed torque.
