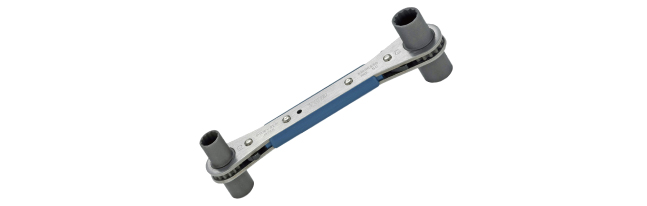

STEEL LONG 4-SIZE PLATE RATCHET WRENCH

The socket part is long and it can be used in 4 sizes (10, 12, 13, 14mm).

Pursuing achieving the lightweight and handy grip, we use reinforced plastic for its body.

Body plate is made of stainless steel with high strength and durability.

Ratchet is driven at 20° with 18 gears.

With a hole 3.5φ for connecting safety code on the body plate.

Material：SUS420J2（Body Plate）、Cr-V（Socket）

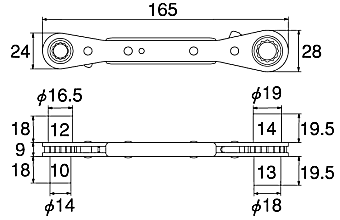

Item No.	JAN Code	List price （￥）	Width Across Flats （mm）	Length （mm）	Weight （ｇ）	Inner Box
PRW-4LK	414755	8,800	10×12×13×14	165	200	6丁

Item No.	Guaranteed Torque　N・ｍ				Package（mm） H×W
Item No.	10mm	12mm	13mm	14mm	Package（mm） H×W
PRW-4LK	47.1	82.4	94.1	129.4	223×83

*JAN Codes are shown by 6 digits numbers which removed as maker code (4975180).
*List Price is for each unit.

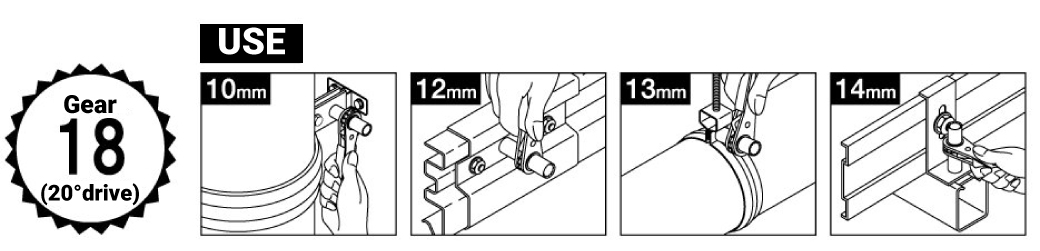

Use

Suitable for installing various racks.
Suitable for attaching and detaching piping band・electric circuit support fittings.

Please be careful when storing as damaging the gear will impair smooth rotation.
Chose proper size witch match with the width across flats or bolt or nut.
Using this tool slantly and shallowly to bolt and nut might be the cause of breakage.
Connect to safety code for fall prevention to use at height.
DO NOT use for purposes other than as hand tool.
