STAINLESS RATCHET WRENCH

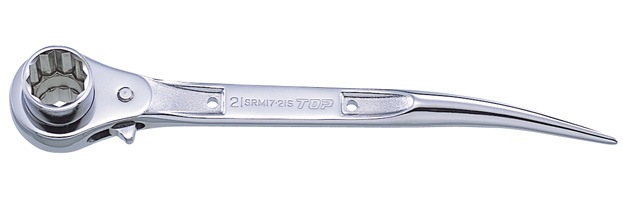

STAINLESS RATCHET WRENCH(Short type)

  • Body, Socket, claw, each parts are all made of stainless steel.
  • Special plating processing on stainless steel for high corrosion resistance.
  • Passed 48 hours of salt spray test.
  • Excellent durability by forged body, socket, and claw.
  • Hand polished surface by craftsmen.
  • 2 holes for safety code.
  • Designed podger for processing wires.

Material：SUS420JS



Item No. JAN Code List Price

（¥）

 Range

（mm）

 Length

（mm）

 Weight

（ｇ）

 Inner Box
SRM-17×19S 384584 16,950 17・19 250 390 1
SRM-17×21S 384591 16,600 17・21 250 390 1
Item No. Head Diameter（mm） Socket Diameter

（mm）

 Head Thickness

（mm）

 Socket Length

（mm）

 Guaranteed Torque
（N・m）
D Smaller Bigger T  ℓ1  ℓ2 Smaller Bigger
SRM-17×19S 41.0 23.5 26.0 18.0 16.0 16.0 308.9 367.7
SRM-17×21S 41.0 23.5 28.5 18.0 16.0 16.0 308.9 426.6
*JAN Codes are shown by 6 digits numbers which removed as maker code (4975180).
*The price is for each unit.

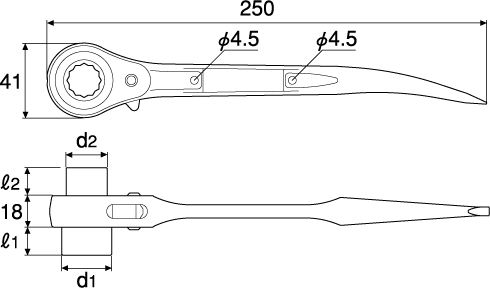

STAINLESS RATCHET WRENCHDrawings

  • Made of Stainless Steel

    Made of Stainless SteelMore durable for heat or acid than ordinary wrench.

  • 12 points (round corners)

    12 points (round corners)12 points (round corners) sockets are easier to insert nut. This surface fit design prevents damaging of bolts or nuts.

Use

  • For scaffold assembling and formwork.
  • Also, suitable for maintenance and repair work of ships, etc.
  • For hygiene-related work to prevent rust.

Caution

  • Rinse up with flesh water after use, wipe up with cloth and pour oil to ratchet part.
  • Stainless steel ratchet is not Non-magnetic material.
  • Chose proper size witch match with the width across flats or bolt or nut.
  • DO NOT extend the handle by inserting a pipe.
  • Please DO NOT use this item as a hammer.
  • Connect to safety code for fall prevention to use at height.
  • DO NOT use for purposes other than as hand tool.
