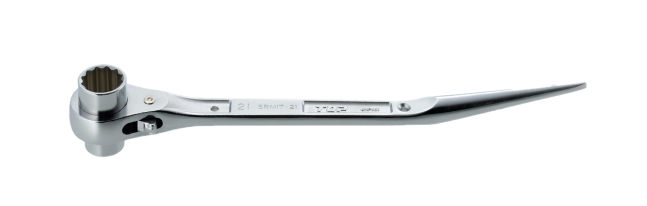

SCAFFOLD STAINLESS RATCHET WRENCH

SCAFFOLD STAINLESS RATCHET WRENCH(With podger)

  • The main body, socket, claws, and parts are all made of stainless steel and are specially plated for excellent corrosion resistance.
  • No abnormality after 48 hours of continuous salt spray test
  • The luster on the surface is hand-polished by craftsmen, giving it a luxurious feel.
  • The podger is a straight line shape with 17°bent, based on a idea form a scaffolders.
  • The podger is shaped that easy to set the fixing position as you coil the wire.
  • Socket shape is dodecagon surface that insert a bolt and nut quickly.

Material：SUS420J2

Item No. JAN Code List Price
（￥）		 Range
（mm）		 Length
L（mm）		 Weight
（ｇ）		 Inner Box
SRM-17×21BT 384393 17,500 17・21 305 445 1
Item No. Head Outside Diameter（mm） Socket Outside Diameter（mm） Head Thickness（mm） SocketLength（mm） Guaranteed Torque（N・m） Package
D Small d1 Large d2 T Small ℓ1 Small ℓ2 Small Large H×W(mm)
SRM-17×21BT 41 23.5 28.5 18 16 16 308.9 426.6 375×55
*JAN Codes are shown by 6 digits numbers which removed maker code (4975180).
*The price is for each unit.



  • Made of Stainless Steel

    Made of Stainless SteelMore durable for heat or acid than ordinary wrench.

  • 12 points (round corners)

    12 points (round corners)12 points (round corners) sockets are easier to insert nut. This surface fit design prevents damaging of bolts or nuts.

Use

  • Suitable for assembling scaffold or concrete formwork.
  • For scaffolders, farmers, and DIY.

Caution

  • Adjust to the width across flats of object.
  • DO NOT extend the handle by inserting a pipe.
  • Please DO NOT use this item as a hammer.
  • Connect to safety code for fall prevention to use at height.
  • DO NOT use for purposes other than as hand tool.
