Item No. | List price (¥) |
Width Across Flats (mm) |
Length (mm) |
Weight (g) |
Inner Box | JAN Code |
---|---|---|---|---|---|---|
RG-17×21N-S | 4,750 | 17×21 | 310 | 470 | 6 | 376350 |

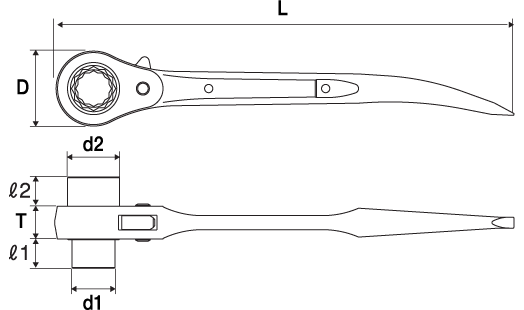

Item No. | Head Outside Diameter
D |
Socket Diameter(mm) | Head Thickness T (mm) |
Socket Length(mm) | Guaranteed Torque (N・m) | |||
---|---|---|---|---|---|---|---|---|
d1 | d2 | ℓ1 | ℓ2 | Small | Large | |||
RG-17×21N-S | 41.0 | 23.5 | 28.5 | 18.0 | 16.0 | 16.0 | 308.9 | 426.6 |
*JAN Codes are shown by 6 digits numbers which removed as maker code (4975180).
*The price is for each unit.
*The price is for each unit.
Use
- Suitable for assembling scaffold or concrete formwork.
- For scaffolders, farmers, and DIY.
Caution
- Chose proper size which suits to the size of bolt and nut.
- DO NOT extend the handle by inserting a pipe.
- Please DO NOT use this item as a hammer.
- Connect to safety code for fall prevention to use at height.
- DO NOT use for purposes other than as hand tool.
