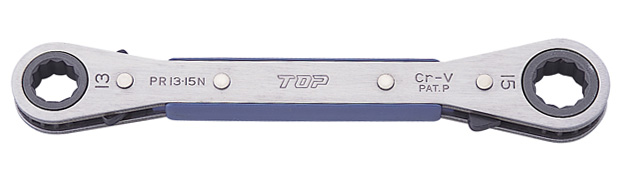

PLATE RATCHET WRENCH

PLATE RATCHET WRENCH

  • Pursuing the lightweight and gripping properly, use a reinforced plastic to its body.
  • The body plate is made of stainless steel.
  • 18 gears and ratchet drive 20°.
  • Ratchet part is strong enough for final tightening.
  • 2 sizes in one.

Material:SUS420J2/ Cr-V

Item No. JAN Code List Price(¥) Range(mm) Length(mm) Weight(g) Inner Box
PR-5.5×7N 412546 2,550 5.5・7 115 50 6 pcs
PR-6×7N 412621 2,550 6・7 115 50 6 pcs
PR-8×9N 412706 2,750 8・9 120 65 6 pcs
PR-8×10N 412898 2,850 8・10 120 65 6 pcs
PR-10×12N 412973 3,450 10・12 140 95 6 pcs
PR-10×13N 413000 3,650 10・13 146 110 6 pcs
PR-11×13N 413192 3,650 11・13 165 125 6 pcs
PR-12×14N 413277 3,850 12・14 165 120 6 pcs
PR-13×15N 413352 4,100 13・15 190 195 6 pcs
PR-13×17N 413437 4,800 13・17 190 190 6 pcs
PR-14×17N 413512 4,800 14・17 190 185 6 pcs
PR-17×19N 413604 5,100 17・19 215 255 3 pcs
PR-17×21N 413789 5,200 17・21 215 250 3 pcs
PR-19×21N 413864 5,350 19・21 226 310 3 pcs
PR-19×22N 413949 5,350 19・22 226 310 3 pcs
PR-19×24N 414007 5,950 19・24 240 300 3 pcs
PR-21×23N 414083 5,950 21・23 240 300 3 pcs
PR-22×24N 414168 6,700 22・24 240 295 3 pcs
Item No. Head  Diameter

D (mm)

Head Thickness

T (mm)

Handle Thickness

(mm)

Guaranteed Torque

(N・m)

Package(mm)
Smaller Bigger Smaller Bigger t Smaller Bigger H×W
PR-5.5×7N 16.0 17.0 8.6 8.6 8.6 7.1 16.7 160×50
PR-6×7N 16.0 17.0 8.6 8.6 8.6 9.4 16.7 160×50
PR-8×9N 18.0 22.0 8.6 8.6 8.6 23.5 44.1 165×50
PR-8×10N 18.0 22.0 8.6 9.6 8.6 23.5 47.1 165×50
PR-10×12N 22.0 24.0 9.6 9.6 9.6 47.1 82.4 185×50
PR-10×13N 22.0 28.0 9.6 9.6 9.6 47.1 94.1 190×50
PR-11×13N 24.0 28.0 9.6 9.6 9.6 64.7 94.1 215×57
PR-12×14N 24.0 28.0 9.6 9.6 9.6 82.4 129.4 215×57
PR-13×15N 28.0 32.0 11.6 11.6 11.6 94.1 146.1 240×58
PR-13×17N 28.0 32.0 11.6 11.6 11.6 94.1 211.8 240×58
PR-14×17N 28.0 32.0 11.6 11.6 11.6 129.4 211.8 240×58
PR-17×19N 32.0 39.0 11.6 11.6 11.6 211.8 258.9 267×63
PR-17×21N 32.0 39.0 11.6 11.6 11.6 211.8 317.7 267×63
PR-19×21N 39.0 40.0 11.6 11.6 11.6 258.9 317.7 280×63
PR-19×22N 39.0 40.0 11.6 11.6 11.6 258.9 353.0 280×63
PR-19×24N 39.0 42.0 11.6 11.6 11.6 258.9 402.0 292×63
PR-21×23N 40.0 42.0 11.6 11.6 11.6 317.7 372.2 292×63
PR-22×24N 40.0 42.0 11.6 11.6 11.6 353.0 402.0 292×63
*JAN Codes are shown by 6 digits numbers which removed as maker code (4975180).
*The price is for each unit.

Item No. PR-10×12N PR-10×13N PR-11×13N PR-12×14N PR-13×15N PR-13×17N PR-14×17N PR-17×19N PR-17×21N PR-19×21N PR-19×22N PR-19×24N PR-21×23N PR-22×24N PR-5.5×7N PR-6×7N PR-8×10N PR-8×9NPR-10x12N PR-10x13N PR-11x13N PR-12x14N PR-13x15N PR-13x17N PR-14x17N PR-17x19N PR-17x21N PR-19x21N PR-19x22N PR-19x24N PR-21x23N PR-22x24N PR-5.5x7N PR-6x7N PR-8x10N PR-8x9N

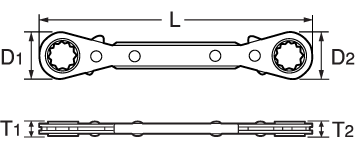

PLATE RATCHET WRENCHDrawings

  • PAT

    PATPATENTED

  • Made of Stainless Steel

    Made of Stainless SteelMore durable for heat or acid than ordinary wrench.

  • Light weight design

    Light weight designEfficient performance with reducing weight and fatigue.

  • 12 points (round corners)

    12 points (round corners)12 points (round corners) sockets are easier to insert nut. This surface fit design prevents damaging of bolts or nuts.

Use

  • For attaching and detaching a bolt and nut for a machining, equipment, vehicle, and etc.
  • Also for maintenance tool of electronics and vehicles.

Caution

  • Please store the tool carefully not to decreasing the smooth rotation by damage the gear part.
  • Chose proper size which suits to the size of bolt and nut.
  • DO NOT use this tool slant and shallowly to bolt and nut.
  • DO NOT use for purposes other than as hand tool.
