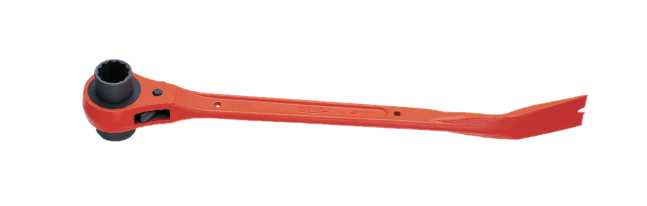

ALC RATCHET WRENCH

ALC RATCHET WRENCH

  • For assembling ALC extrusion molded plates and attaching and detaching scaffolding clamps.
  • Handle part is 27mm crowbar, and specially processed for extrusion cut nails.
  • Crowbar is suitable for gap alignment as incorporating  ALC extrusion molded plate.

For assembling ALC extrusion molded plates and attaching and detaching scaffolding clamps

  • The ratchet part 19mm is the ALC board mounting bolt size.
  • Not only the body, also the claw is forged. Excellent strength.
  • Filled with hole on the head part during processing, it maintains smooth ratchet drive.
  • Two φ4.5mm holea for safety code.
  • The surface has a conspicuous orange paint finish.

Material：S55C(Body )/Cr-V(Socket)

Item No. JAN Code List Price
（￥）		 Use Range
（mm）		 Length
（mm）		 Weight（ｇ） Inner Box
RM-17×19BL 389039 10,150 17・19 324 450 2
Item No. Head Outside Diameter
（mm）		 Socket Outside Diameter d
（mm）		 Head Thickness
（mm）		 Socket Length

ℓ
（mm）

 Guaranteed Torque
(N・m)
D Small Large T Small Large Small Large
RM-17×19BL 41.0 23.5 26.0 18.0 16.0 16.0 308.9 367.7
*JAN Codes are shown by 6 digits numbers which removed maker code (4975180).
*The price is for each unit.

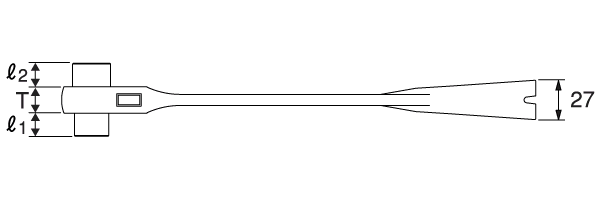

ALC RATCHET WRENCHDrawings

Use

  • Suitable for assembling ALC extrusion mold plate.

Caution

  • Chose proper size which suits to the size of bolt and nut.
  • DO NOT extend the handle by inserting a pipe.
  • Please DO NOT use this item as a hammer.
  • Connect to safety code for fall prevention to use at height.
  • DO NOT use for purposes other than as hand tool.
