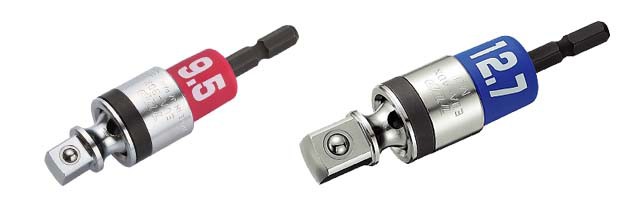

ALPHA UNIVERSAL SOCKET BIT ADAPTER

ALPHA UNIVERSAL SOCKET BIT ADAPTER

9.5㎜ type release.

High resistance of broken.

●Buffer torsional stress. 2 times higher resistance (in our company’s comparison). For 18V

●Oscillation angle is 30°. Smooth work.

●Hexagon shank is 6.35mm. Quick installing to impact driver.

●Hexagon shank is press-fit. High resistance.

●with safety ball for install socket safely.

●100 % Made in Japan. Selected materials.

●Hanger type only.

Item No. JAN code List Price(¥) Inserting Square(㎜) L(㎜) W(g) Inner Box
EUA-3DX 225030 3,800 9.5 88.5 100 6 pcs
EUA-4DX 227591 4,830 12.7 92.5 115 6 pcs
Item No. Body outside diameter D(mm) Body Length ℓ(mm) Oscllation Angle (° ) Package(mm) Material Torque(N・m)
H×W
EUA-3DX 23.0 61.5 30 141×35 SCM435 75
EUA-4DX 23.0 65.5 30 145×35 SCM435 75
 ※JAN codes are shown without the first 7 digital number of maker code (4975180)

Item No.  EUA-3DX EUA-4DX

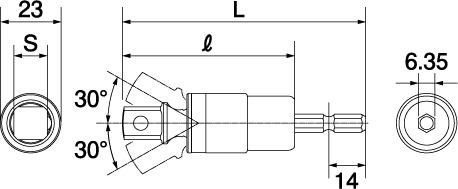

ALPHA UNIVERSAL SOCKET BIT ADAPTERDrawings

  • electric impact screw drivers

    electric impact screw driversIt can be used by ordinary electric impact screw drivers.

  • Inserted shank

    Inserted shankThe shank is heat treated and inserted into socket by force. It endures twist and breakage.

  • impact drill driver

    impact drill driverimpact drill driver which is more powerful than ordinary electric impact screw drivers.

Use

  • Suitable for high power electric tools (14.4V/18V)
  • For each maker’s impact driver
  • Easy attach/detach at corner.
  • For wall side work where you want to have angle.

Caution

  • Use properly within the torque.
  • It may broken by loading on shank.
  • Please use Electric Drill with clutch/impact.
  • DO NOT use as any other purposes than as hand tool.
