Material:SUS420J2
Item No. | JAN Code | List Price(¥) | Range(mm) | Length(mm) | Weight(g) | Inner box |
---|---|---|---|---|---|---|
SRM-17×19 | 384355 | 17,350 | 17・19 | 310 | 440 | 6 pcs |
SRM-17×21 | 384379 | 17,000 | 17・21 | 310 | 445 | 6 pcs |

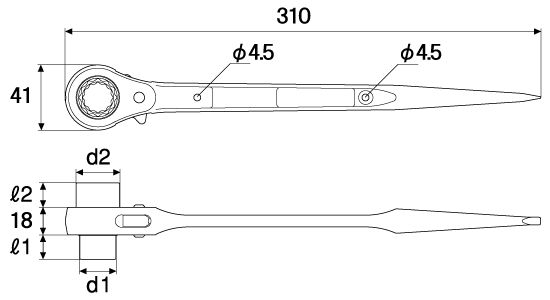

Item No. | Head Diameter(mm) | Socket Diameter(mm) | Head Thickness(mm) | Socket Length(mm) | Guaranteed Torque (N・m) |
|||
---|---|---|---|---|---|---|---|---|
D | Smaller | Bigger | T | Smaller | Bigger | Smaller | Bigger | |
SRM-17×19 | 41.0 | 23.5 | 26.0 | 18.0 | 16.0 | 16.0 | 308.9 | 367.7 |
SRM-17×21 | 41.0 | 23.5 | 28.5 | 18.0 | 16.0 | 16.0 | 308.9 | 426.6 |
*JAN Codes are shown by 6 digits numbers which removed as maker code (4975180).
*Price is for each unit.
*Price is for each unit.

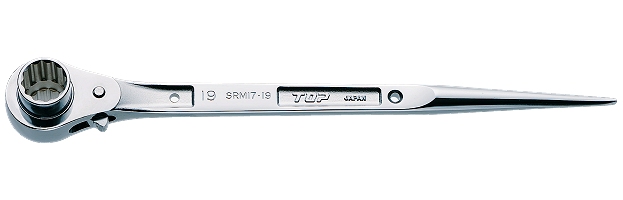

17×19 S-RM-17×21
Use
- For scaffold assembling and formwork.
- Also, suitable for maintenance and repair work of ships, etc.
- For hygiene-related work to prevent rust.
Caution
- Rinse up with flesh water after use, wipe up with cloth and pour oil to ratchet part.
- Stainless steel ratchet is not Non-magnetic material.
- Chose proper size witch match with the width across flats or bolt or nut.
- DO NOT extend the handle by inserting a pipe.
- Please DO NOT use this item as a hammer.
- Connect to safety code for fall prevention to use at height.
- DO NOT use for purposes other than as hand tool.
