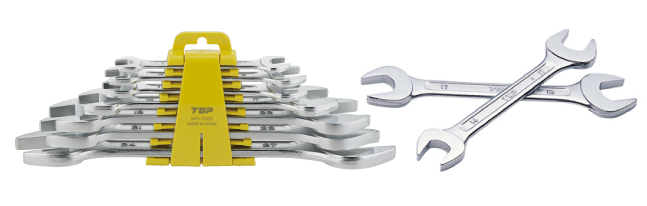

Light and Thin, A slim spearhead shape spanner with clamping force makes work effectively.
Material：Cr-V
| Item No. | JAN Code | List Price （￥） |
Contains | Weight （g） |
Inner Box （Set） |
|---|---|---|---|---|---|
| L-7000 | 620170 | 10,000 | 8×9・10×12・11×13・14×17 19×22・21×23・24×27 WH-7000Y |
945 | 2 |
| Item No. | Content | Outside Diameter S(mm) |
Mouth Depth (mm) |
Head Maximum Thickness (mm) |
Torque (N.m) |
Length （mm） |
Weight （g） |
Holder
Color |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Smaller | Bigger | Smaller | Bigger | Smaller | Bigger | ||||||
| L-7000 | 8×9 | 17.5 | 19.5 | 8.5 | 9.5 | 3.8 | 15 | 23 | 110 | 20 | Yellow |
| 10×12 | 21.5 | 26 | 11 | 13 | 4.8 | 30 | 50 | 128 | 40 | ||
| 11×13 | 23.5 | 28 | 12 | 14 | 5.3 | 39 | 62 | 131 | 50 | ||
| 14×17 | 30 | 36.5 | 15 | 18.5 | 6.8 | 76 | 132 | 166 | 100 | ||
| 19×22 | 40.5 | 47 | 20.5 | 24 | 7.7 | 169 | 255 | 205 | 180 | ||
| 21×23 | 45 | 49.0 | 23 | 25 | 8.2 | 226.0 | 265 | 216 | 220 | ||
| 24×27 | 51 | 57.5 | 26 | 29.5 | 8.7 | 319 | 412 | 244 | 295 | ||
*JAN Codes are shown by 6 digits numbers which removed as maker code (4975180).
*List Price is for each unit.
Use
- For attaching and detaching various industrial a bolt and nut.
- Various use for precision machine, Electrical parts, and Vehicles.
Caution
- Please adjust a jaw to width across flats of a bolt and nut.
- Do NOT install slantly and shallowly on a bolt and nut.
- DO NOT use by inserting pipe to the stick.
- Please DO NOT use this item as a hammer.
- DO NOT extend the handle by inserting a pipe.
