Combination Wrench Set

Combination Wrench Set(6 items Set・7 Items Set・10 Items Set)



  • CW-6000・7000 are in plastic holder.
  • CW-10000S is in tool bag.
  • CW-7000(7 units) has released on October 1, 2019.
  • Please see here for information of CW-7000 (1 unit ) holder

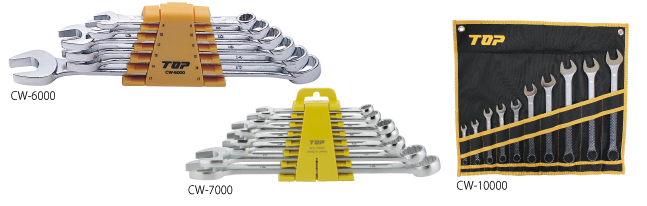

CW-6000(with Holder )

CW-7000(with Holder)

CW-10000S(with Tool Bag)


  • The box part has a 15 ° angle.
  • Able to complete fastening with the box part.
  • 12-sided surface type of the box  DO NOT damage bolt/ nut.
  • Combines Open-end spanner/Box-end spanner.
  • CW-6000 / 7000 are stored plastic holder (Holder type is different)
  • CW-10000S is in tool bag.
  • Combination Wrench ( Unit)  CLICK HERE
  • CW-7000’s Holder (Unit)  CKLICK HERE
Item No. JAN Code Price(¥) Contains Weight(g) Inner Box (Set)
CW-6000 700094 6,900 CW-8・10・12・13・14・17・with holder 442 2
CW-7000 700148 8,400 CW-8・10・12・13・14・17・19・WH-7000Y 580 2
CW-10000S 700186 17,000 CW-8・10・12・13・14・17・19・21・22・24・
RCW-10S-K(tool bag)
1,250 2



Item No. Contain Open Mouth D(㎜) Mouth F(㎜) Head T(㎜) Guaranteed Torque(N・m) Material
Spanner Box Wrench Spanner Box Wrench Spanner Box Wrench
CW-6000 CW-8 17.5 13.6 8.5 3.6 6 15 31 Cr-V
CW-10 21.5 16.5 11 4.6 7 30 62
CW-12 26 19.4 13 5.6 8 50 103
CW-13 28 20.7 14 6.1 8.5 62 124
CW-14 30 22.1 15 6.6 9 76 165
CW-17 36.5 26.1 18.5 7.6 10 132 268
CW-7000 CW-8 17.5 13.6 8.5 3.6 6 15 31 Cr-V
CW-10 21.5 16.5 11 4.6 7 30 62
CW-12 26 19.4 13 5.6 8 50 103
CW-13 28 20.7 14 6.1 8.5 62 124
CW-14 30 22.1 15 6.6 9.0 76 165
CW-17 36.5 26.1 18.5 7.6 10.0 132 268
CW-19 40.5 29.0 20.5 8.1 11.0 169 330
CW-10000S CW-8 17.5 13.6 8.5 3.6 6 15 31 Cr-V
CW-10 21.5 16.5 11 4.6 7 30 62
CW-12 26 19.4 13 5.6 8 50 103
CW-13 28 20.7 14 6.1 8.5 62 124
CW-14 30 22.1 15 6.6 9.0 76 165
CW-17 36.5 26.1 18.5 7.6 10.0 132 268
CW-19 40.5 29.0 20.5 8.1 11.0 169 330
CW-21 47 32.5 23 8.8 12.0 226 402
CW-22 47 32.5 24 8.8 12.0 255 443
CW-24 51 35.8 26 8.8 12.0 255 443
※JAN Codes are shown with 6 digital numbers which removed maker code (4975180).
※The price is for each Set.

Item No.  CW-6000 CW-7000 CW-10000S片目片口スパナ

Combination Wrench SetDrawings

  • 12 points (round corners)

    12 points (round corners)12 points (round corners) sockets are easier to insert nut. This surface fit design prevents damaging of bolts or nuts.

Use

  •  For detaching various industrial bolt/ nut.
  • For various use. Precision machine/Electrical parts/Vehicles.

Caution

  • Please adjust jaw to two-sided width of bolt/nut.
  • Do not use slantingly/shallowly.
  • Do not install pipes.
  • Do not use as a hammer.
  • Do not use for purposes other than as hand tool.
