Material：Cr-V
| Item No. | JAN code | List Price （￥） |
Contains | Weight （g） |
Inner Box （Set） |
|---|---|---|---|---|---|
| L-6000 (mm) |

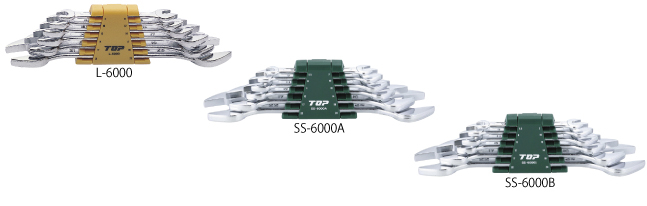

620149 | 7,000 | 8×9・10×12・12×14・ 14×17・17×19・21×23 |
615 | 2 |
| SS-6000A （ISO） |
625298 | 7,000 | 5.5×7・8×10・11×13・ 12×14・17×19・22×24 |
555 | 2 |
| SS-6000B （ISO） |
625106 | 7,000 | 6×7・8×10・11×13・ 12×14・17×19・22×24 |
560 | 2 |
| Item No. | Contains | Outer diameter（mm） | Jaw Depth（mm） | Head Thickness（mm） | Torque （N･m） |
Inner Package (mm) |
Color of Holder | |||
|---|---|---|---|---|---|---|---|---|---|---|
| Small | Big | Small | Big | Small | Big | H x W | ||||
| L-6000 (mm) |
8×9 | 17.5 | 19.5 | 8.5 | 9.5 | 3.8 | 15.0 | 23.0 | Yellow | |
| 10×12 | 21.5 | 26.0 | 11.0 | 13.0 | 4.8 | 30.0 | 50.0 | |||
| 12×14 | 26.0 | 30.0 | 13.0 | 15.0 | 5.8 | 50.0 | 76.0 | |||
| 14×17 | 30.0 | 36.5 | 15.0 | 18.5 | 6.8 | 76.0 | 132.0 | |||
| 17×19 | 36.5 | 40.5 | 18.5 | 20.5 | 7.2 | 132.0 | 169.0 | |||
| 21×23 | 45.0 | 49.0 | 23.0 | 25.0 | 8.2 | 226.0 | 265.0 | |||
| SS-6000A （ISO） |
5.5×7 | 12.5 | 15.5 | 6.0 | 7.5 | 2.9 | 4.9 | 9.8 | Green | |
| 8×10 | 17.5 | 21.5 | 8.5 | 11.0 | 4.3 | 15.0 | 30.0 | |||
| 11×13 | 23.5 | 28.0 | 12.0 | 14.0 | 5.3 | 39.0 | 62.0 | |||
| 12×14 | 26.0 | 30.0 | 13.0 | 15.0 | 5.8 | 50.0 | 76.0 | |||
| 17×19 | 36.5 | 40.5 | 18.5 | 20.5 | 7.2 | 132.0 | 169.0 | |||
| 22×24 | 47.0 | 51.0 | 24.0 | 26.0 | 8.2 | 255.0 | 319.0 | |||
| SS-6000B （ISO） |
6×7 | 13.5 | 15.5 | 6.5 | 7.5 | 2.9 | 5.9 | 9.8 | Green | |
| 8×10 | 17.5 | 21.5 | 8.5 | 11.0 | 4.3 | 15.0 | 30.0 | |||
| 11×13 | 23.5 | 28.0 | 12.0 | 14.0 | 5.3 | 39.0 | 62.0 | |||
| 12×14 | 26.0 | 30.0 | 13.0 | 15.0 | 5.8 | 50.0 | 76.0 | |||
| 17×19 | 36.5 | 40.5 | 18.5 | 20.5 | 7.2 | 132.0 | 169.0 | |||
| 22×24 | 47.0 | 51.0 | 24.0 | 26.0 | 8.2 | 255.0 | 319.0 | |||
-
PATPATENTED
-
It can be used by hand operation.This item can be used for not only electric impact screw drivers but also hand tools.
Use
- For various kind of bolt/nut.
- For maintaining electronics/vehicles.
Caution
- Use proper size. check both-side width of bolt/nut.
- Grasp the object firmly.
- Do not insert pipes to have longer handle.
- Do not use this item as a hammer.
- Do not use as any other purposes than as hand tool.
