UNIVERSAL IMPACT SOCKET ADAPTER

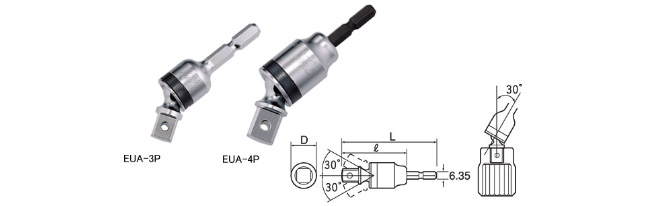

UNIVERSAL IMPACT SOCKET ADAPTER(EUA-3P・EUA-4P)

  • a ring for unite attached pin  for connecting socket of impact wrench safely
  • Maximum Oscillation angle: 30°.
  • Hexagon shank of EUA-4P is press-in type. strong resistance to shaft.
  • Hexagon shank is 6.35mm. quick attach to impact driver.
  • All the materials are from japan.
  • Available to order hexagon shank and horn drive as a parts.

差込角9.5mm 12.7mm角

Item No. JANcode List Price（￥） Inserting Square（mm） L（mm） W（ｇ） Inner Box
EUA-3P 222206 4,150 9.5 68 55 6 pcs
EUA-4P 222213 5,500 12.7 85.5 120 6 pcs
Item No. Outer Diameter（mm） Length ℓ（mm） Oscillation Angle（°　） Package（mm） Material Torque（N・m）
H×W
EUA-3P 18 42 30 120×35 SCM435 47
EUA-4P 23 59 30 137×35 SCM435 75

  • electric impact screw drivers

    electric impact screw driversIt can be used by ordinary electric impact screw drivers.

  • impact drill driver

    impact drill driverimpact drill driver which is more powerful than ordinary electric impact screw drivers.

  • impact wrench

    impact wrenchcan be used with impact wrench.

Use

  • Able to attach to impact driver to use sockets of each makers.
  • Suitable for working at narrow space.

Caution

  •  O-ring・Pin type
    （Not for socket of socket wrench）
  • Use properly within torque (EUA-3P: 47N・m, EUA-4P: 75N・m)
  • Hexagon shank may be broken by too much loads.
  • Please use Electric Drill with clutch or impact.
  • Usage is only as hand tools.
