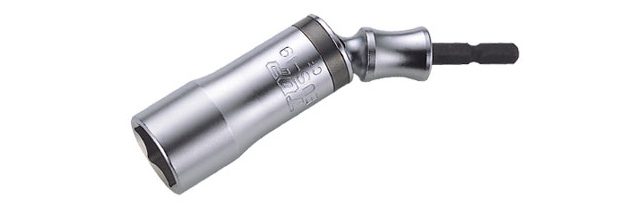

UNIVERSAL SOCKET BIT

UNIVERSAL SOCKET BIT

Oscillation angle 30°. Easy to use at narrow space.

●length of the socket is 40 mm. fit to each bolt.

●Hexagon shank is 6.35 mm. quick attach to impact driver.

●Hexagon Surfaace not to damage bolt/nut.

●Deep socket. drop off prevention. quick tightening.

●100% made in Japan to provide safety. use only selected materials.

Item No.  JAN code List Price（￥） Opposite side　Dimension（㎜） L（㎜） W（ｇ） Inner Box
EUS-8 222367 3,620 8 110 86 6 pcs
EUS-10 222374 3,620 10 110 95 6 pcs
EUS-12 222381 3,620 12 110 95 6 pcs
EUS-13 222398 3,640 13 110 95 6 pcs
EUS-14 222404 3,640 14 110 95 6 pcs
EUS-17 222411 3,950 17 115 145 6 pcs
EUS-19 222428 4,070 19 115 145 6 pcs
EUS-21 222435 4,190 21 115 155 6 pcs
EUS-24 222442 4,540 24 115 175 6 pcs
Item No. Socket Outside

D（mm）

 Hexagon Depth

H（mm）

 Socket Depth

ℓ（mm）

 Package（mm） Material Torque （N・m）
H×W
EUS-8 12.7 12 40 162×35 SCM435 75
EUS-10 15.5 15 40 162×35 SCM435 75
EUS-12 17.5 20 40 162×35 SCM435 75
EUS-13 18.2 20 40 162×35 SCM435 75
EUS-14 19.7 20 40 162×35 SCM435 75
EUS-17 23.5 20 40 167×35 SCM435 75
EUS-19 26 20 40 167×35 SCM435 75
EUS-21 28.5 20 40 167×35 SCM435 75
EUS-24 32.8 20 40 167×35 SCM435 75
※JAN codes are shown without the first 7 digital number of maker code （4975180）.
※List Price is for each unit.

Item No.  EUS-8 EUS-10 EUS-12 EUS-13 EUS-14 EUS-17 EUS-19 EUS-21 EUS-24

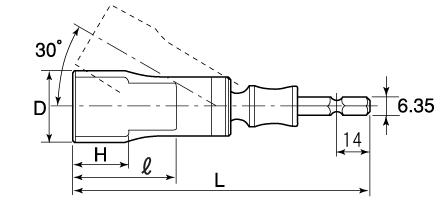

UNIVERSAL SOCKET BITDrawings

  • PAT

    PATPATENTED

  • electric impact screw drivers

    electric impact screw driversIt can be used by ordinary electric impact screw drivers.

  • Inserted shank

    Inserted shankThe shank is heat treated and inserted into socket by force. It endures twist and breakage.

  • impact drill driver

    impact drill driverimpact drill driver which is more powerful than ordinary electric impact screw drivers.

  • 6 points (round corners)

    6 points (round corners)6 points (round corners) socket has surface fit design which prevents damaging of bolts or nuts. 6 points sockets are standard for electric impact screw driver accessories.

  • shank

    shank

Use

  • For construction work/demolition work.
  • For attaching/loosing bbolt/nut at wallside.

Caution

  • DO NOT bent more than 30°.
  • Use properly within the torque （75Ｎ・m）
  • Hexagon shank may be broken by heavy loads.
  • DO NOT use the item shallowly/diagonally.
  • Use electric dorill with clutch/impact.
  • DO NOT use as any other purposes than as hand tools.
