COMPACT SOCKET BIT

COMPACT SOCKET BIT

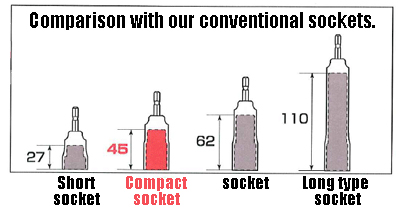

“Length 45mm” is a  New standard.

  • Higher efficiency by the length.
  • 20% lighter weight.  Long-last battery.
  • Impact absorbing and lightweight Streamlined Original shape.
  • Hexagon shank
  • Hexagon surface socket to not damage bolt and nut.
  • Deep socket for quick turning double nut and drop prevention.
  • 45 mm length socket fit perfectly to each bolts.
  • 100% made in japan. only of selected materials.
Item No. JANCode Price(¥) Widths across Flats(mm) Length(mm) Weight(g) Inner Box (Pcs.)
EDS-7C 740540 1,130 7 88 50 6
EDS-8C 740557 1,130 8 88 50 6
EDS-9C 740472 1,200 9 88 45 6
EDS-10C 740564 1,200 10 88 55 6
EDS-11C 740489 1,230 11 88 50 6
EDS-12C 740571 1,230 12 88 60 6
EDS-13C 740588 1,330 13 88 60 6
EDS-14C 740595 1,330 14 88 70 6
EDS-15C 740700 1,380 15 88 85 6
EDS-16C 740731 1,380 16 88 91 6
EDS-17C 740601 1,380 17 88 95 6
EDS-18C 740748 1,450 18 88 106 6
EDS-19C 740618 1,450 19 88 115 6
EDS-21C 740625 1,550 21 88 130 6
EDS-22C 740632 1,700 22 88 140 6
EDS-24C 740649 2,450 24 88 180 6
Item No. Socket D(mm) Hexagon H(mm) Socket  ℓ(mm) Package(mm) Material Guaranteed Torque (N・m)
H×W
EDS-7C 11 8 45 140×35 SCM435 75
EDS-8C 12.7 12 45 140×35 SCM435 75
EDS-9C 13.5 12 45 140×35 SCM435 75
EDS-10C 14.5 15 45 140×35 SCM435 75
EDS-11C 16 15 45 140×35 SCM435 75
EDS-12C 17.5 20 45 140×35 SCM435 75
EDS-13C 17.9 20 45 140×35 SCM435 75
EDS-14C 19.7 20 45 140×35 SCM435 75
EDS-15C 21.5 25 45 140×35 SCM435 75
EDS-16C 22.5 25 45 140×35 SCM435 75
EDS-17C 23.5 30 45 140×35 SCM435 75
EDS-18C 25 30 45 140×35 SCM435 75
EDS-19C 26 30 45 140×35 SCM435 75
EDS-21C 28.5 30 45 140×35 SCM435 75
EDS-22C 29.5 30 45 140×35 SCM435 75
EDS-24C 33.0 30 45 140×35 SCM435 75
※JAN Codes are shown with 6 digital numbers which removed maker code (4975180). The price is for each unit.

Item No. EDS-7C EDS-8C EDS-9C EDS-10C EDS-11C EDS-12C EDS-13C EDS-14C EDS-15C EDS-16C EDS-17C EDS-18C EDS-19C EDS-21C EDS-22C EDS-24C

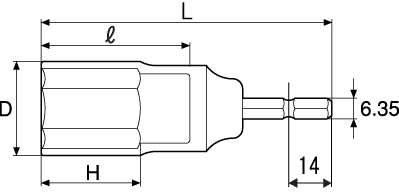

COMPACT SOCKET BITDrawings

  • electric impact screw drivers

    electric impact screw driversIt can be used by ordinary electric impact screw drivers.

  • Inserted shank

    Inserted shankThe shank is heat treated and inserted into socket by force. It endures twist and breakage.

  • impact drill driver

    impact drill driverimpact drill driver which is more powerful than ordinary electric impact screw drivers.

  • Light weight design

    Light weight designEfficient performance with reducing weight and fatigue.

  • 6 points (round corners)

    6 points (round corners)6 points (round corners) socket has surface fit design which prevents damaging of bolts or nuts. 6 points sockets are standard for electric impact screw driver accessories.

  • shank

    shank

Use

Caution

  • Use within torque 75N/M
  • Hexagon shank may be broken by too much pressure.
  • Use drill with clutch/impact.
  • Use drill with clutch/impact.
  • Please use only as a hand tool.
