3 LAYERED FLAT NOSE CUTTING PLIERS

3 LAYERED FLAT NOSE CUTTING PLIERS

  • 3 layered mechanism reduce chance to get backlash.
  • Thin flat shape blade.
  • Grip parts which touch hands are elastomer processed to provide softness.
  • A ring for attaching safety code on grip.
  • Spring is leaf spring which has high durability and elastic.

Material:S58C

Item No. JAN code List Price
(¥)
Length
(mm)
Weight
(g)
Inner Box
FN3-130 433763 5,050 126 80 6 pcs
Item No. Head width
(mm)
Tip width
(mm)
Head thickness
(mm)
Tip thickness
(mm)
Grip width
(mm)
Package(mm)
H×W
FN3-130 11.0 2.0 7.0 3.5 52 205×70
・JAN codes are shown without the first 7 digital numbers of maker code(4975180).
・The list price is for each unit.
FN3130 FN-3-130 三枚合わせフラットノーズプライヤ 三枚合わせフラットノーズプライヤー 三枚合せフラットノーズプライヤー

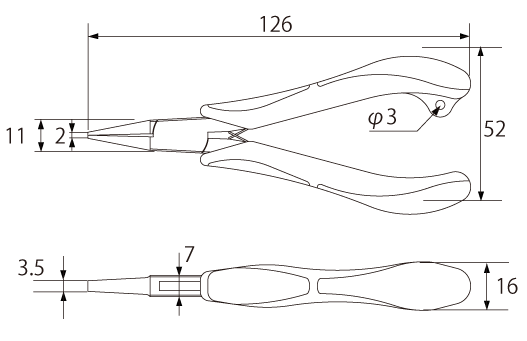

3 LAYERED FLAT NOSE CUTTING PLIERSDrawings

  • 3 layered

    3 layered3 layered construction is more rigid and durable than ordinary type.

Use

  • Able to process flat materials without damaging.
  • For hobby, jewelry make and repair.

Caution

  • The tip is thin. It might be broken by heavy load.
  • Grip is not insulation. Be aware of electrification.
  • Do not use for any other purposes than as hand tool.
