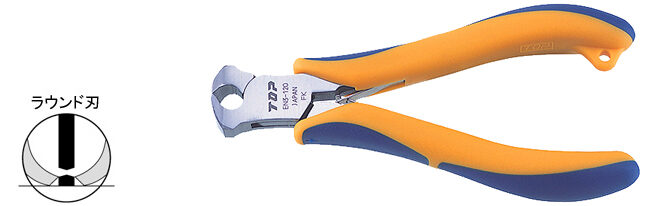

3 LAYERED DIAGONAL EDGE CUTTING PLIERS

3 LAYERED DIAGONAL EDGE CUTTING PLIERS

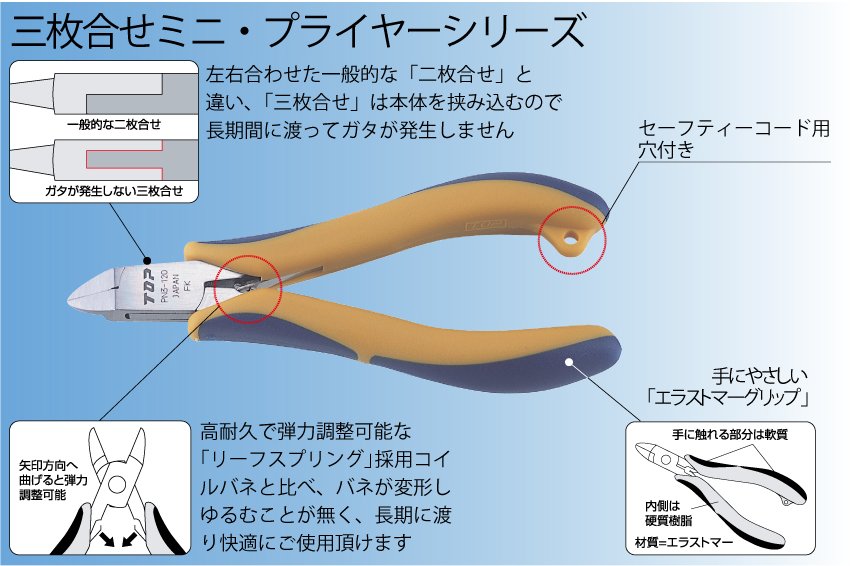

  • 3 layered mechanism reduce chance to get backlash.
  • Tip is thin flat shape.
  • Grip parts which touch hands are elastomer processed to provide softness.
  • A ring for attaching safety code on grip.
  • Spring is leaf spring which has high durability and elastic.

Material:S58C

Item No. JAN code List Price(¥) Range of use Length(mm) Weight(g) Inner Box
EN3-120 433817 6,400 φ1.2(soft wire)
φ2.0(copper wire)
2.0㎟(strand wire【VSF】)
113 80 6 pcs
Item No. Head width(mm) Head Thickness(mm) Blade length(mm) Grip width(mm) Package(mm)
Height×Width
EN3-120 18.0 18.0 13.0 52 205×70
・JAN codes are shown without the first 7 digital numbers of maker code(4975180).
・The list price is for each unit.
EN3120 EN-3-120 三枚合わせエンドニッパ 三枚合わせエンドニッパー 三枚合せエンドニッパー

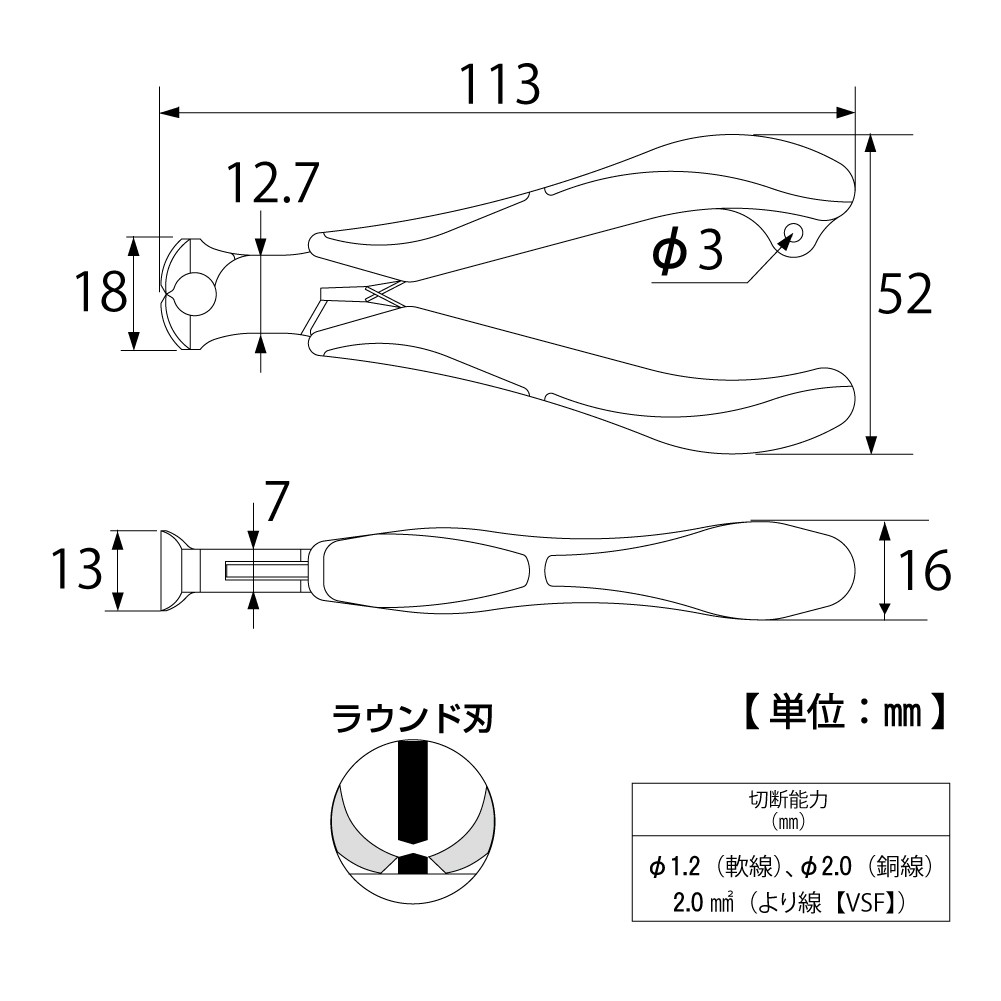

3 LAYERED DIAGONAL EDGE CUTTING PLIERSDrawings

  • 3 layered

    3 layered3 layered construction is more rigid and durable than ordinary type.

Use

  • For  cutting projection on circuit.
  • For assembling, repairing and disassembling light currents.

Caution

  • Please check cutting ability before use.
  • Wear eyes protection.
  • Grip is not insulation. Be aware of electrification.
  • Do not use for any other purposes than as hand tool.
