3 LAYERED CUTTING PLIER

3 LAYERED CUTTING PLIER

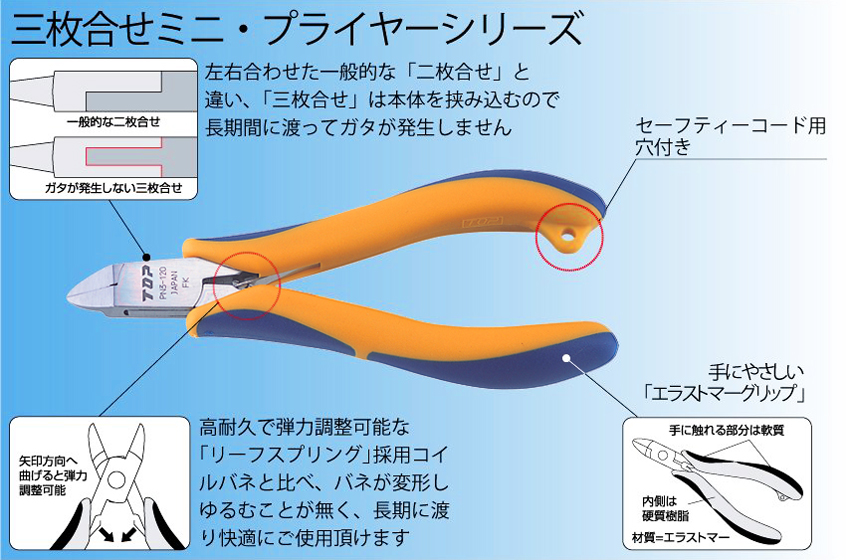

  • 3 layered mechanism reduce chance to get backlash.

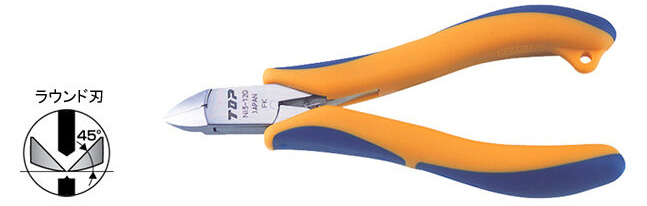

  • Round shape blade.
  • For cutting metallic wires.
  • Grip parts which touch hands are elastomer processed to provide softness.
  • A ring for attaching safety code on grip.
  • Spring is leaf spring which has high durability and elastic.

Material:S58C

Item No. JAN code List Price
(¥)
Cutting ability
(mm)
length
(mm)
weight
(g)
Inner box
NI3-120 433701 5,500 φ0.5(soft wire)
φ1.0(copper wire)
strand wire(VSF)1.25mm²
120 80 6 pcs
Item No. Head width
(mm)
Head thickness
(mm)
Blade length
(mm)
Grip width
(mm)
Package(mm)
Height×Width
Material
NI3-120 11.0 7.0 13 52 205×70 S58C
・JAN codes are shown without the first 7 digital numbers of maker code(4975180).
・The list price is for each unit.
NI3120 NI-3-120 三枚合わせニッパ

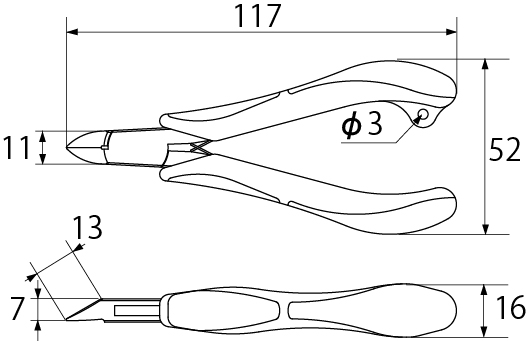

3 LAYERED CUTTING PLIERDrawings

  • 3 layered

    3 layered3 layered construction is more rigid and durable than ordinary type.

Use

  • For cutting metallic wires.

Caution

  • Please check cutting ability before use.
  • Wear eyes protection.
  • Grip is not insulation. Be aware of electrification.
  • Do not use for any other purposes than as hand tool.
