Material:S55C(Body)/Cr-V(Socket)
Item No. | JAN Code | List Price (¥) |
Width Across Flats (mm) |
Length (mm) |
Weight (g) |
Inner Box |
---|---|---|---|---|---|---|
RG-17×19S | 376305 | 5,550 | 17×19 | 250 | 370 | 6 |
RG-17×21S | 376312 | 5,250 | 17×21 | 250 | 370 | 6 |

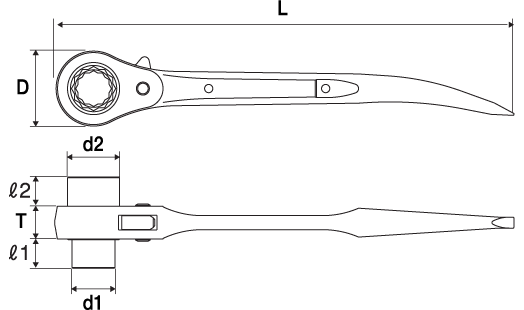

Item No. | Head Outside Diameter (mm) |
Socket Outside Diameter (mm) |
Head Thickness (mm) |
Socket Length (mm) |
Guaranteed Torque (N・m) |
|||
---|---|---|---|---|---|---|---|---|
D | d1 | d2 | T | ℓ1 | ℓ2 | Small | Large | |
RG-17×19S | 41.0 | 23.5 | 26.0 | 18.0 | 16.0 | 16.0 | 308.9 | 367.7 |
RG-17×21S | 41.0 | 23.5 | 28.5 | 18.0 | 16.0 | 16.0 | 308.9 | 426.6 |
*JAN Codes are shown by 6 digits numbers which removed as maker code (4975180).
*The price is for each unit.
*The price is for each unit.
Use
- Suitable for assembling scaffold or concrete formwork.
- For scaffolders, farmers, and DIY.
Caution
- Adjust to the width across flats of object.
- DO NOT extend the handle by inserting a pipe.
- Please DO NOT use this item as a hammer.
- Connect to safety code for fall prevention to use at height.
- DO NOT use for purposes other than as hand tool.
