SCAFFOLD RATCHET WRENCH

SCAFFOLD RATCHET WRENCH(With podger)

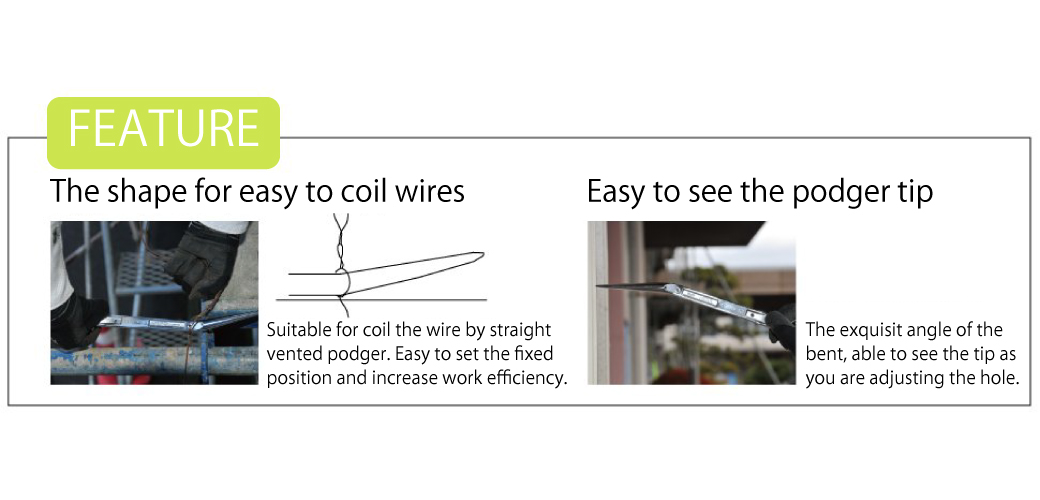

  • The podger is a straight line shape with 17° bent, based on a idea form a scaffolders.
  • Easy to coil wires.
  • Not only body, gear is also forged.
  • Prevent rust with plated coating.



Material：S55C/Cr-V



Item No. JAN Code List price

（￥）

 Range

（mm）

 Length

（mm）

 Weight

（g）

 Inner Box
RM-17×19N-BT 377371 5,450 17×19 305 430 6pcs
RM-17×21N-BT 377456 5,150 17×21 305 430 6pcs
RM-19×24N-BT 377609 5,550 19×24 305 430 6pcs
Item No. Head Dimension

（mm）

 Socket Dimension

（mm）

 Head Thickness（mm） Socket Length

（mm）

 Guaranteed Torque

（N・m）
D  d1  d2 T  ℓ1  ℓ2 Smaller Bigger
RM-17×19N-BT 41 23.5 26.0 18 16 16 308.9 367.7
RM-17×21N-BT 41 23.5 28.5 18 16 16 308.9 426.6
RM-19×24N-BT 41 26 32.5 18 16 16 367.7 426.6
*JAN Codes are shown by 6 digits numbers which removed maker code (4975180).
*The price is for each unit.



SCAFFOLD RATCHET WRENCHDrawings

Use

  • Suitable for assembling scaffold or concrete formwork.
  • For scaffolders, farmers, and DIY.

Caution

  • Adjust to the width across flats of object.
  • DO NOT extend the handle by inserting a pipe.
  • Please DO NOT use this item as a hammer.
  • Connect to safety code for fall prevention to use at height.
  • DO NOT use for purposes other than as hand tool.
