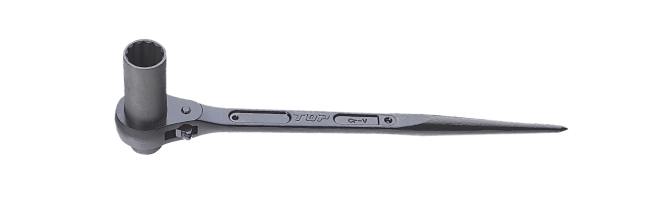

SUPER LONG RATCHET WRENCH

SUPER LONG RATCHET WRENCH

  • One side of the socket is particularly long type.

One side of the socket is particularly long type

  • Not only the body, also the claw is forged. Excellent strength.
  • Filled with hole on the head part during processing, it maintains smooth ratchet drive.
  • The φ4.5mm hole for safety code.
  • The surface has a rust-resistant cation finish.

Material：Cr-V

Item No. JAN Code List Price
（¥）		 Use Range
（mm）		 Length
（mm）		 Weight
（ｇ）		 Inner Box
RM-13×17SL 374868 7,750 13・17 278 340 6
RM-14×17SL 374943 7,750 14・17 278 325 6
RM-17×19SL 375018 8,850 17・19 312 510 6
RM-17×21SL 375087 8,850 17・21 312 515 6
RM-19×24SL 375162 10,750 19・24 311 640 2
RM-21×26SL 375209 11,300 21・26 358 980 2
RM-24×27SL 375247 11,300 24・27 358 990 2
RM-24×30SL 375322 14,450 24・30 415 1,390 2
RM-27×32SL 375407 14,700 27・32 415 1,400 2
Item No. Head Outside Diameter
（mm）		 Socket Outside

d
（mm）

 Head Thickness
（mm）		 Socket Length

ℓ
（mm）

 Guaranteed Torque
N・m
D Small Large T Small Large Small Large
RM-13×17SL 35.0 18.0 23.0 16.0 14.0 52.0 125.5 180.4
RM-14×17SL 35.0 19.0 23.0 16.0 14.0 52.0 141.2 180.4
RM-17×19SL 41.0 23.5 26.0 18.0 16.0 52.0 247.1 294.2
RM-17×21SL 41.0 23.5 28.5 18.0 16.0 52.0 247.1 341.3
RM-19×24SL 44.0 27.0 33.5 18.0 16.0 64.0 294.2 411.9
RM-21×26SL 52.0 21.0 26.0 20.0 18.0 72.0 426.6 459.0
RM-24×27SL 52.0 32.5 36.5 20.0 18.0 72.0 411.9 478.6
RM-24×30SL 59.0 35.0 41.0 22.0 20.5 76.0 411.9 537.4
RM-27×32SL 59.0 36.5 43.0 22.0 20.5 82.0 478.6 576.6
*JAN Codes are shown by 6 digits numbers which removed as maker code (4975180).
*The price is for each unit.

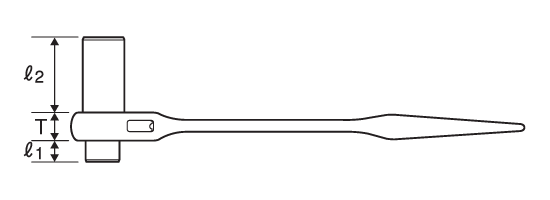

SUPER LONG RATCHET WRENCHDrawings

  • 12 points (round corners)

    12 points (round corners)12 points (round corners) sockets are easier to insert nut. This surface fit design prevents damaging of bolts or nuts.

Use

  • Suitable for tightening bolts connecting steel frames such as H beam.
  • Suitable for installing uneven guardrails, etc as well.

Caution

  •  The large nominal size size is suoer ling socket type.
  • Chose proper size which suits to the size of bolt and nut.
  • Adjust to the width across flats of object.
  • DO NOT extend the handle by inserting a pipe.
  • Please DO NOT use this item as a hammer.
  • Connect to safety code for fall prevention to use at height.
  • DO NOT use for purposes other than as hand tool.
