PORTABLE SOCKET HOLDER

PORTABLE SOCKET HOLDER

  • Best for carrign and keeping a bit (6.35mm).
  • It is able to store a shank quickly beause it has round hole.
  • It is a safety design that does not come off unless the slide part is pulled up.
  • Accomplished the weight reduction to make it compact and use alminum alloy.
  • Depending on the size and the type, we have a wide variety of 5 colors to choose from, and  A Three Colors Portable Socket Holder Set.
  • Prepared a type with a swivel and a type without a swivel in each color.
  • It can use for a key and accessory to keep to combine ESH Key Adapter (sold separately).

esh_tokuchou

ESH_使用例_合わせ

esh_n_%e5%90%84%e8%89%b2_hp%e7%94%a8

Item No. JAN code Price
（￥）		 Use range Length

L
（mm）

 Weight
（ｇ）		 Inner box

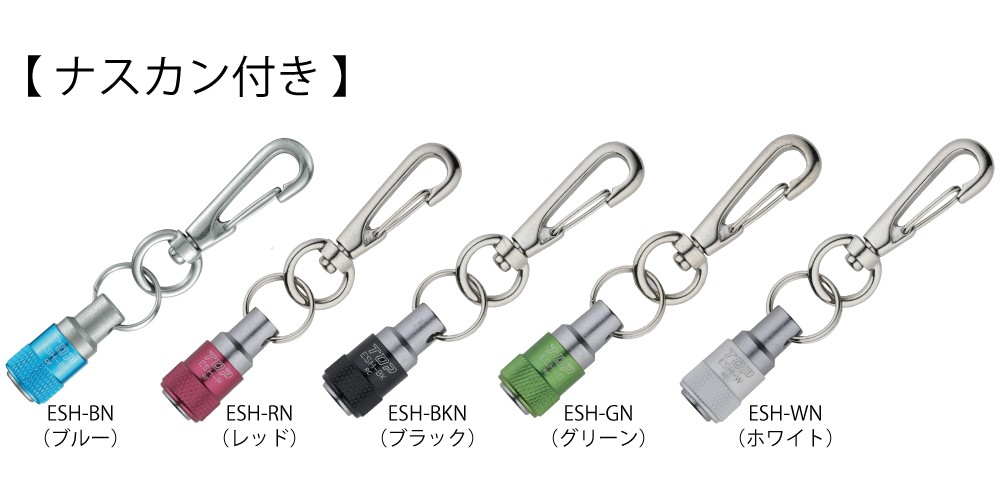

ESH-BN 931955 1,300 Under 500ｇ 100 33 6 pcs
ESH-RN 934161 1,300 Under 500ｇ 100 33 6 pcs
ESH-BKN 934178 1,300 Under 500ｇ 100 33 6 pcs
ESH-GN 934185 1,300 Under 500ｇ 100 33 6 pcs
ESH-WN 934192 1,300 Under 500ｇ 100 33 6 pcs
Item No. Body outer diameter

D
（mm）

 Attached ring inner diameter

φ
（mm）

 The maximum diameter

that swivel can hold

φ
（mm）

 Color Inner box（mm） Material
H×W
ESH-BN 15.6 16.0 6.5 Blue 115×40 Slide color: Aluminum alloy
Other : Alloy
ESH-RN 15.6 16.0 6.5 Red 115×40 Slide color: Aluminum alloy
Other : Alloy
ESH-BKN 15.6 16.0 6.5 Black 115×40 Slide color: Aluminum alloy
Other : Alloy
ESH-GN 15.6 16.0 6.5 Green 115×40 Slide color: Aluminum alloy
Other : Alloy
ESH-WN 15.6 16.0 6.5 White 115×40 Slide color: Aluminum alloy
Other : Alloy

esh_%e5%90%84%e8%89%b2_hp%e7%94%a8

Item JAN code Price
（￥）		 Use range Length

L
（mm）

 Weight
（ｇ）		 Inner box

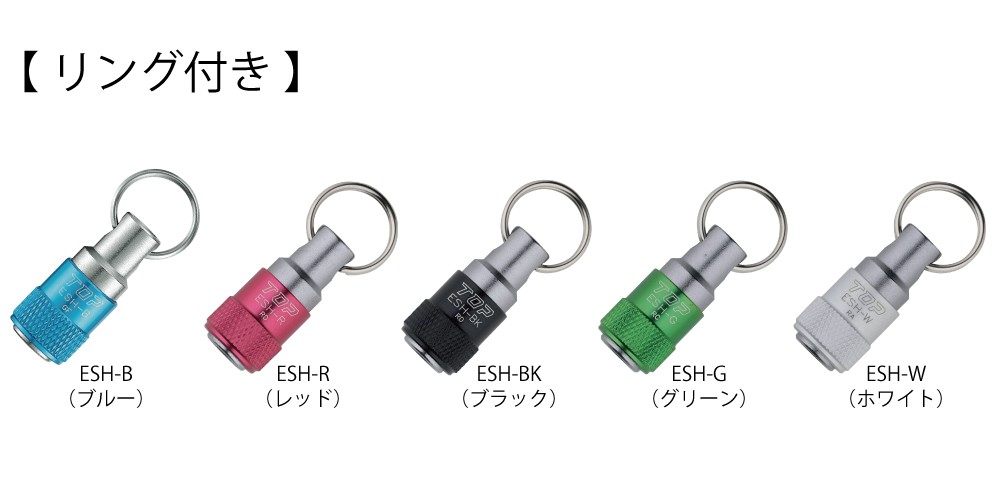

ESH-B 931900 1,100 Under 500ｇ 52 20 6 pcs
ESH-R 934086 1,100 Under 500ｇ 52 20 6 pcs
ESH-BK 934093 1,100 Under 500ｇ 52 20 6 pcs
ESH-G 934109 1,100 Under 500ｇ 52 20 6 pcs
ESH-W 934116 1,100 Under 500ｇ 52 20 6 pcs
Item No. Body outer diameter

D
（mm）

 Attached ring inner diameter

φ
（mm）

 Color Inner box（mm） Material
H×W
ESH-B 15.6 16.0 Blue 115×40 Slide color: Aluminum alloy
Other : Alloy
ESH-R 15.6 16.0 Red 115×40 Slide color: Aluminum alloy
Other : Alloy
ESH-BK 15.6 16.0 Black 115×40 Slide color: Aluminum alloy
Other : Alloy
ESH-G 15.6 16.0 Green 115×40 Slide color: Aluminum alloy
Other : Alloy
ESH-W 15.6 16.0 White 115×40 Slide color: Aluminum alloy
Other : Alloy

【 関連製品 Related Products】

esh_3%e8%89%b2_hp

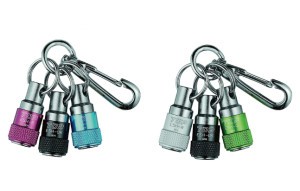

A Three Colors Portable Socket Holder Set

●There are “Blue, Red, and Black” set and Black, Green, and White” set.
● A set is cheaper than a single item.
 esh_a_%e5%8d%98%e5%93%81_hp

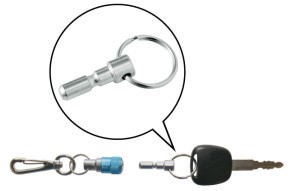

ESH Key Adaptor

● This Adapter can keep a key or a small item other than socket holder.
●It is easy to attach to a socket holder due to the compact and round shape.
・JAN Codes are shown by 6 digits numbers, which removed maker code (4975180).
・The List price is for each unit.
ESHBN　ESHB　ESHRN　ESHR　ESHBKN　ESHBK　ESHGN　ESHG　ESHWN　ESHW

PORTABLE SOCKET HOLDERDrawings

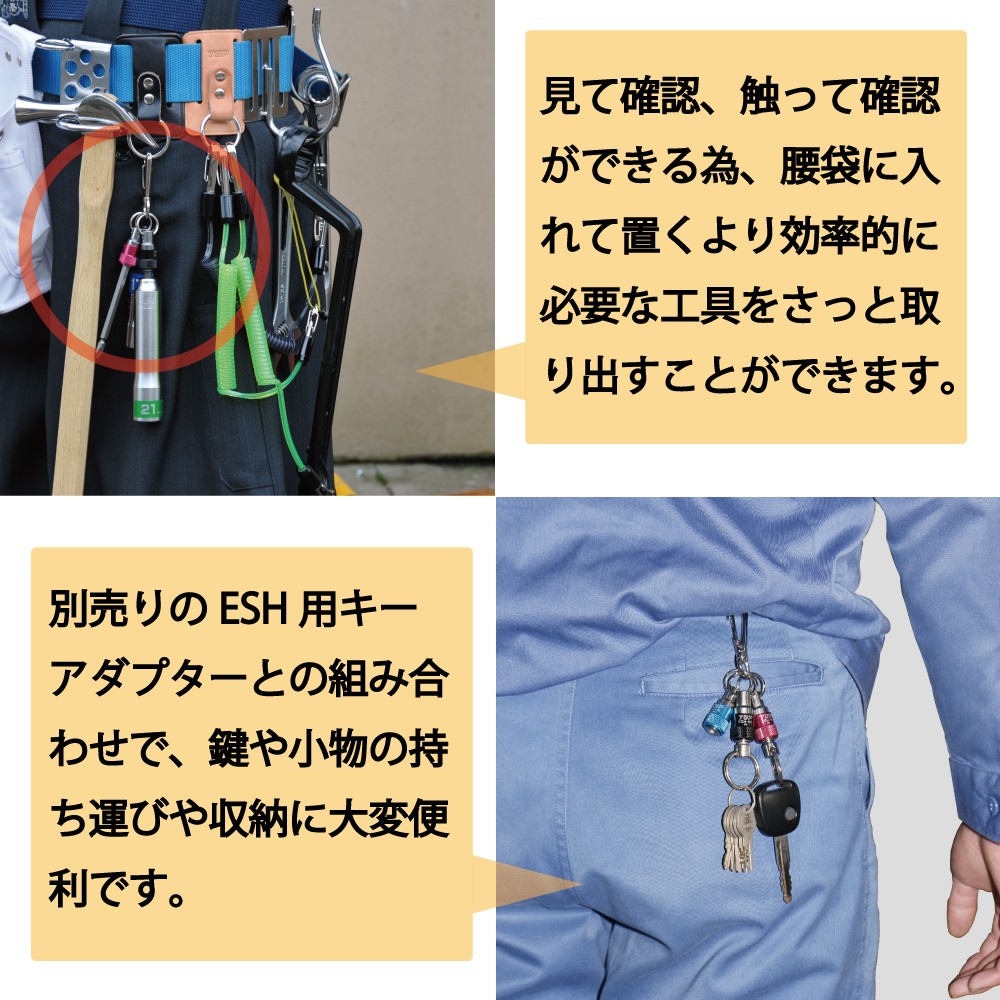

Use

  • Best for working to keep socket bits at height place.
  • Keeping a small item around your waist, it gives you a safety working place.



Caution

  • DO NOT hang over 500g items to the one holder.
  • DO NOT attach sharp tip tools such as iron drills to the holder.
  • Please be careful losing a key or valuables to use the Key Adaptor.
  • DO NOT use for purposes other than as hand tool.
