- A telescopic sliding handle.
- Able to switch the rotation direction by the claw.
- The number of gears is 24 teeth and it ratchet drives 15° angle finely.
Material：S55C/Cr-V
| Item No. | JAN Code | List Price （¥） |
Range （mm） |
Length （mm） |
Weight （ｇ） |
Inner Box |
|---|---|---|---|---|---|---|

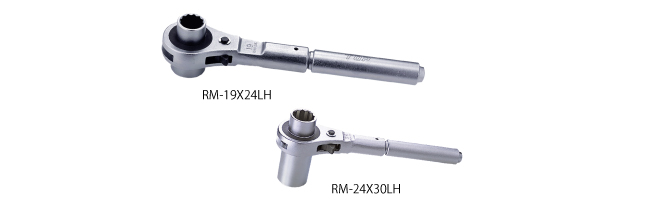

| RM-19×24LH | 389855 | 14,850 | 19・24 | 245～300 | 870 | 1 |
| RM-24×30LH | 389862 | 17,150 | 24・30 | 250～305 | 1,230 | 1 |
| Item No. | Head Outside Diameter （mm） |
Socket Outside Diameter
d |
Head Thickness （mm） |
Socket Length
ℓ |
Guaranteed Torque
|
||
|---|---|---|---|---|---|---|---|
| D | Small | Large | T | Small | Large | N・ｍ | |
| RM-19×24LH | 52.0 | 27.0 | 33.5 | 20.0 | 18.0 | 18.0 | 411.9 |
| RM-24×30LH | 59.0 | 33.5 | 41.0 | 22.0 | 22.5 | 56.0 | 537.4 |
*JAN Codes are shown by 6 digits numbers which removed as maker code (4975180).
*The price is for each unit.
-
PATPATENTED
Use
- Suitable for tightening and loosen water main pipes.
Caution
- Please wash off with tap water if mud or dirt adheres to the product after use.
- Please use the size that matches the width across flats of the bolt and nut.
- DO NOT extend the handle by inserting a pipe.
- DO NOT use for purposes other than as a hand tool.
