Material:S55C
Item No. | JAN Code | List Price (¥) |
Range (mm) |
Length L (mm) |
Weight (g) |
Inner Box |
---|---|---|---|---|---|---|

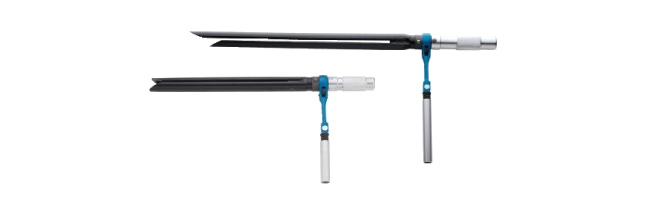

VR-300 | 408600 | 20,400 | ●Tube Size:Under φ125 ●Tube Length:Under 500mm |
500 | 1,900 | 1 PC |
VR-450 | 408785 | 28,900 | ●Tube Size:Under φ150 ●Tube Length:Under 660mm |
690 | 3,000 | 1PC |
Item No. | Fork Depth (mm) |
Fork Outside Diameter (mm) |
Fork Gap (mm) |
Handle Length (mm) |
---|---|---|---|---|
ℓ | φ | W | ||
VR-300 | 300 | 31 | 5 | 240 |
VR-450 | 450 | 37 | 7 | 240 |
*JAN Codes are shown by 6 digits numbers which removed maker code (4975180).
*The price is for each unit.
*The price is for each unit.
Use
- Suitable for removign the void tube after construct a concrete.
Caution
- Please drive the void tube all the way to the base of the fork before winding it up.
- It might break the fork if driving the void tube too shallowly.
- The tip of the fork is sharp, so please be careful when handling it.
- DO NOT use it for anything other than removing void tubes.
- The tip of fork is plated a cation.
