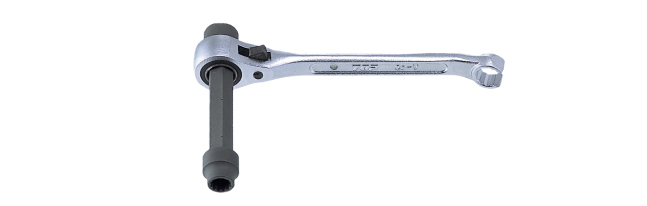

- Socket slydes in 3 stages.
- Box end wrench part (12mm and 17mm) can be used tigtening suspended pipe band turn.
- Even if you insert the tip of thebox ed wrench the turn and leave your hand, it will not fall off and can be rotated quickly.
- The tip of box end wrench part bends 15°, and it make easier to work from an underneath of object.
- Not only the body, the claw is also forged and excellent strength.
- 13mm of PHW-1013L can connect multi sockets.
- With a 4.0φ hole for connecting safety code.
Material：Cr-V
| Item No. | JAN Code | List Price （¥） |
Use Range （mm） |
Length （mm） |
Weight （ｇ） |
Inner Box |
|---|---|---|---|---|---|---|
| PHW-1013L | 393579 | 11,350 | 10・13・12 | 174 | 240 | 6 |
| Item No. | Head Outside Diameter （mm） |
Socket Outside Diameter
d |
Socket Width Across Flats （mm） |
Head Thickness （mm） |
Socket Length
ℓ |
|||
|---|---|---|---|---|---|---|---|---|
| D | Small | Large | S1 | S2 | T | Small | Large | |
| PHW-1013L | 30.5 | 20.0 | 20.0 | 10 | 13 | 15.5 | 19～75 | 14～70 |
| Item No. | Handle Outside Diameter
S4 |
Handle Thickness （mm） |
Box End Wrench
S3 |
Guaranteed Torque N・m |
Card | |
|---|---|---|---|---|---|---|
| Small | Large | |||||
| PHW-1013L | 21.0 | 10.0 | 12.0 | 78.5 | 94.1 | 235×125 |
*JAN Codes are shown by 6 digits numbers which removed as maker code (4975180).
*Price is for each unit.
*Price is for each unit.
-
PATPATENTED
-
12 points (round corners)12 points (round corners) sockets are easier to insert nut. This surface fit design prevents damaging of bolts or nuts.
Use
- Suitable for attaching large diameter suspended pipe band clamp and other pipe band clamp.
- Able to use for various piping work such as ducts.
Caution
- Please be careful not to pinch your fingers when sliding the socket.
- Please keep the box end part in close adhere with the turn as turning the turn quickly with the box end part.
- Chose proper size which suits to the size of bolt and nut.
- Connect to safety code for fall prevention to use at height.
- DO NOT work at heights with the multi socket installed. There is a risk of falling.
- DO NOT use for purposes other than as hand tool.
