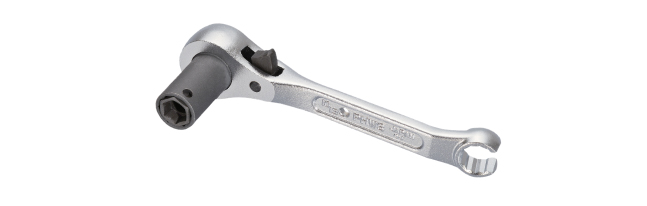

SHORT SUSPENDED PIPE BAND WRENCH

SHORT SUSPENDED PIPE BAND WRENCH

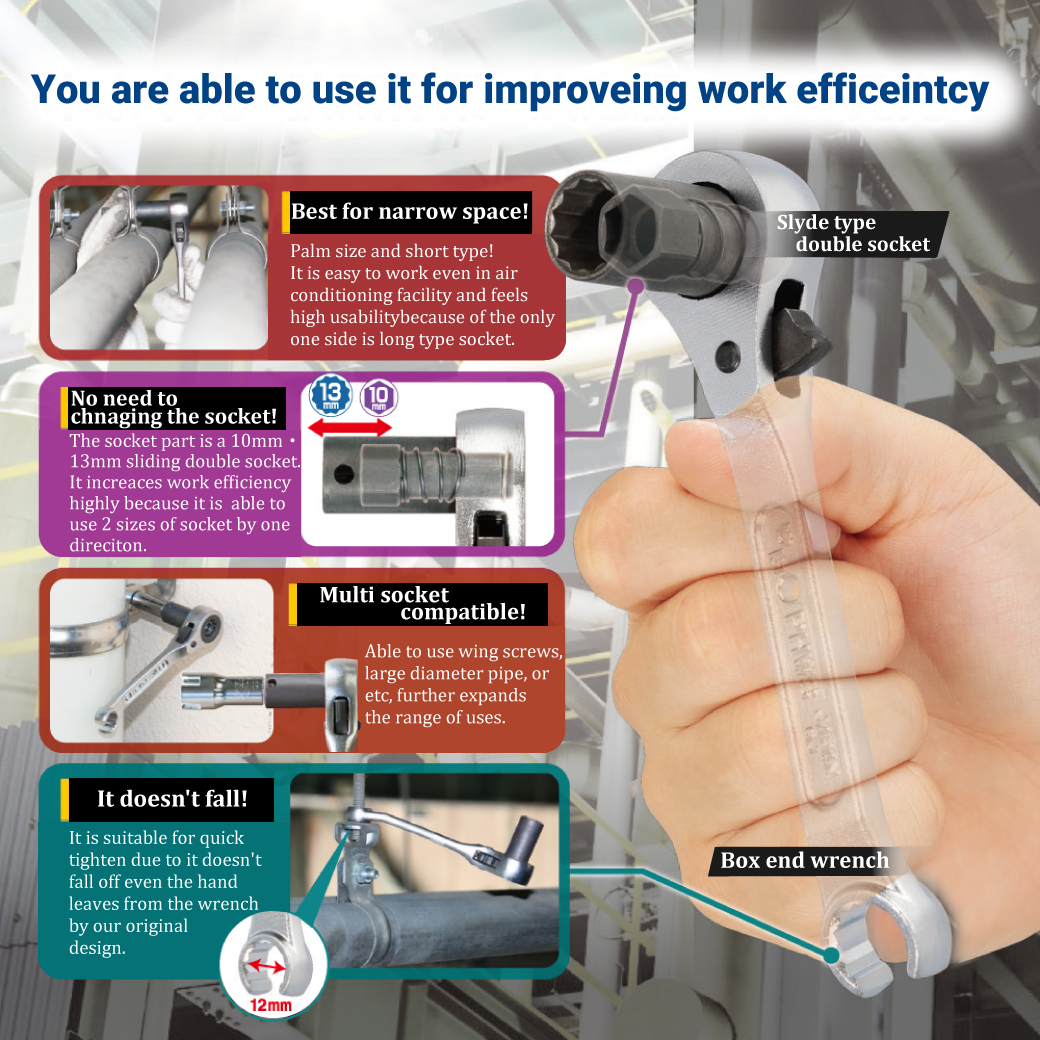

  • Best for narrow space! Palm size and short type! Works easily even in air conditioning facility.
  • No need to chnaging the socket! The socket part uses a 10mm・13mm sliding double socket.
  • Multi socket compatible! Able to use wing screws, large diameter pipe, or etc, further expands the range of uses.
  • It doesn’t fall! The box end wrench part at the tip is suitable for tightening suspended pipe band clamp with turn.

Material：Cr-V

Item No. JAN Code List Price
（￥）		 Width Across Flats
（mm）		 Length
（mm）		 Weight
（ｇ）		 Inner Box
PHWS-1013-3 392527 9,050 10×13 140 190 6
*JAN Codes are shown by 6 digits numbers which removed as maker code (4975180).
*Price is for each unit.

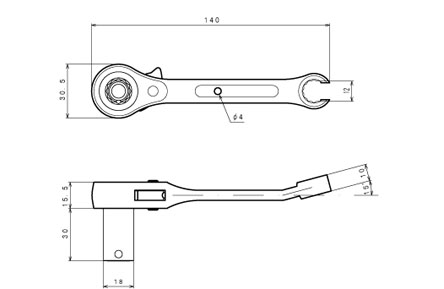

SHORT SUSPENDED PIPE BAND WRENCHDrawings

  • PAT

    PATPATENTED

Use

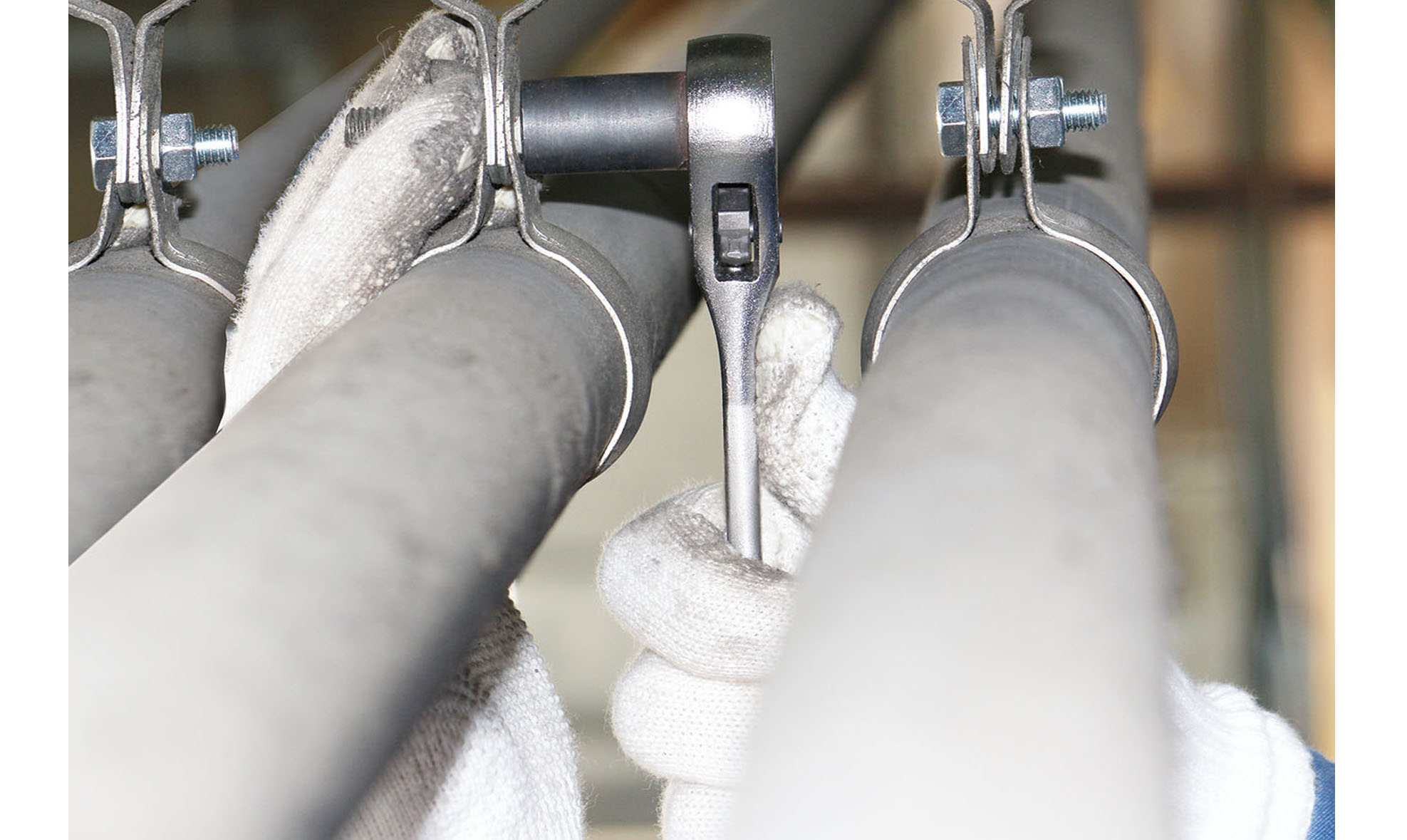

  • Suitable for attaching suspended pipe band clamp and other pipe band clamp(10A~100A)
  • Able to use for various piping work such as ducts.

Caution

  • As you inserting a multi socket which is sold separately, please make sure to align the positioning hole on the socket of this product with the ball of multi socket which preventing falling.
  • Connect to safety code for fall prevention to use at height.
  • Do not work at heights with the multi socket installed. There is a risk of falling.
  • Chose proper size which suits to the size of bolt and nut.
  • DO NOT use for purposes other than as hand tool.
