Material：Cr-V
| Item No. | JAN Code | List Price （￥） |
Width Across Flats （mm） |
Length （mm） |
Weight （ｇ） |
Inner Box |
|---|---|---|---|---|---|---|
| RM-10×13S | 385406 | 5,500 | 10×13 | 180 | 180 | 2 |
| RM-12×14S | 385413 | 6,000 | 12×14 | 180 | 180 | 2 |
| RM-13×17S | 385420 | 6,000 | 13×17 | 200 | 240 | 2 |
| RM-14×17S | 385437 | 6,500 | 14×17 | 200 | 240 | 2 |
| RM-17×19S | 385444 | 5,500 | 17×19 | 250 | 360 | 6 |
| RM-17×21S | 385475 | 5,000 | 17×21 | 250 | 360 | 6 |
| RM-19×21S | 385505 | 5,500 | 19×21 | 250 | 360 | 6 |
| RM-19×24S | 384805 | 5,850 | 19×24 | 250 | 360 | 6 |

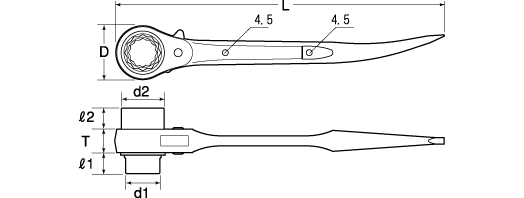

| Item No. | Head Outside Diameter （mm） |
Socket Outside Diameter （mm） |
Head Thickness （mm） |
Socket Length （mm） |
Guaranteed Torque (N・m) |
|||
|---|---|---|---|---|---|---|---|---|
| D | d1 | d2 | T | ℓ1 | ℓ2 | Small | Large | |
| RM-10×13S | 30.5 | 14.0 | 18.0 | 15.5 | 11.0 | 11.0 | 98.1 | 117.7 |
| RM-12×14S | 30.5 | 16.4 | 19.0 | 15.5 | 11.0 | 11.0 | 98.1 | 132.4 |
| RM-13×17S | 35.0 | 18.0 | 23.0 | 16.0 | 14.0 | 14.0 | 117.7 | 225.6 |
| RM-14×17S | 35.0 | 19.0 | 23.0 | 16.0 | 14.0 | 14.0 | 132.4 | 225.6 |
| RM-17×19S | 41.0 | 23.5 | 26.0 | 18.0 | 16.0 | 16.0 | 308.9 | 367.7 |
| RM-17×21S | 41.0 | 23.5 | 28.5 | 18.0 | 16.0 | 16.0 | 308.9 | 426.6 |
| RM-19×21S | 41.0 | 26.0 | 28.5 | 18.0 | 16.0 | 16.0 | 367.7 | 426.6 |
| RM-19×24S | 41.0 | 26.0 | 32.5 | 18.0 | 16.0 | 16.0 | 367.7 | 426.6 |
*JAN Codes are shown by 6 digits numbers which removed as maker code (4975180).
*The price is for each unit.
*The price is for each unit.
Use
- Suitable for assembling scaffold or concrete formwork.
- For scaffolders, farmers, and DIY
Caution
- Adjust to the width across flats of object.
- DO NOT extend the handle by inserting a pipe.
- Please DO NOT use this item as a hammer.
- Connect to safety code for fall prevention to use at height.
- DO NOT use for purposes other than as hand tool.
