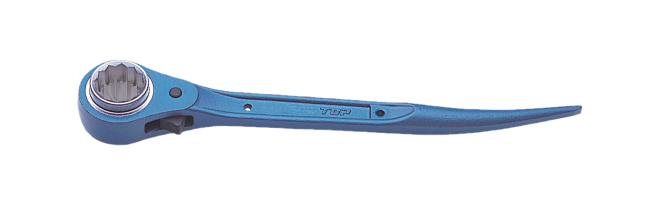

COMPACT RATCHET WRENCH

COMPACT RATCHET WRENCH(For residential construction)

  • Socket part is thin, it is suitable for working in narrow spaces at residence construction sites.
  • Suitable for 2×4 construction method or precut construction method.

For 2×4 method or precut method

    • Socket part is thin, it is suitable for working in narrow spaces at residence construction sites.
    • A compact short type that pursues workability.
    • Not only the body, also the claw is forged. Excellent strength.
    • Filled with hole on the head part during processing, it maintains smooth ratchet drive.
    • Two φ4.5mm holes for safety code.
    • The surface has a rust-resistant paint finish.
    • Socket part are plated by metal plating to prevent rust.

Material：Cr-V

Item No. JAN Code

List Price
（¥）



Use Range
（mm）



Length
（mm）



Weight
（ｇ）



Inner Box
RM-17×19C 389756 6,200 17・19 250 360 2丁
RM-17×21C 389770 5,900 17・21 250 360 2丁
RM-19×21C 389800 6,200 19・21 250 360 2丁
RM-19×24C 385529 6,200 19・24 250 360 2丁
RM-21×24C 389817 6,500 21・24 250 360 2丁

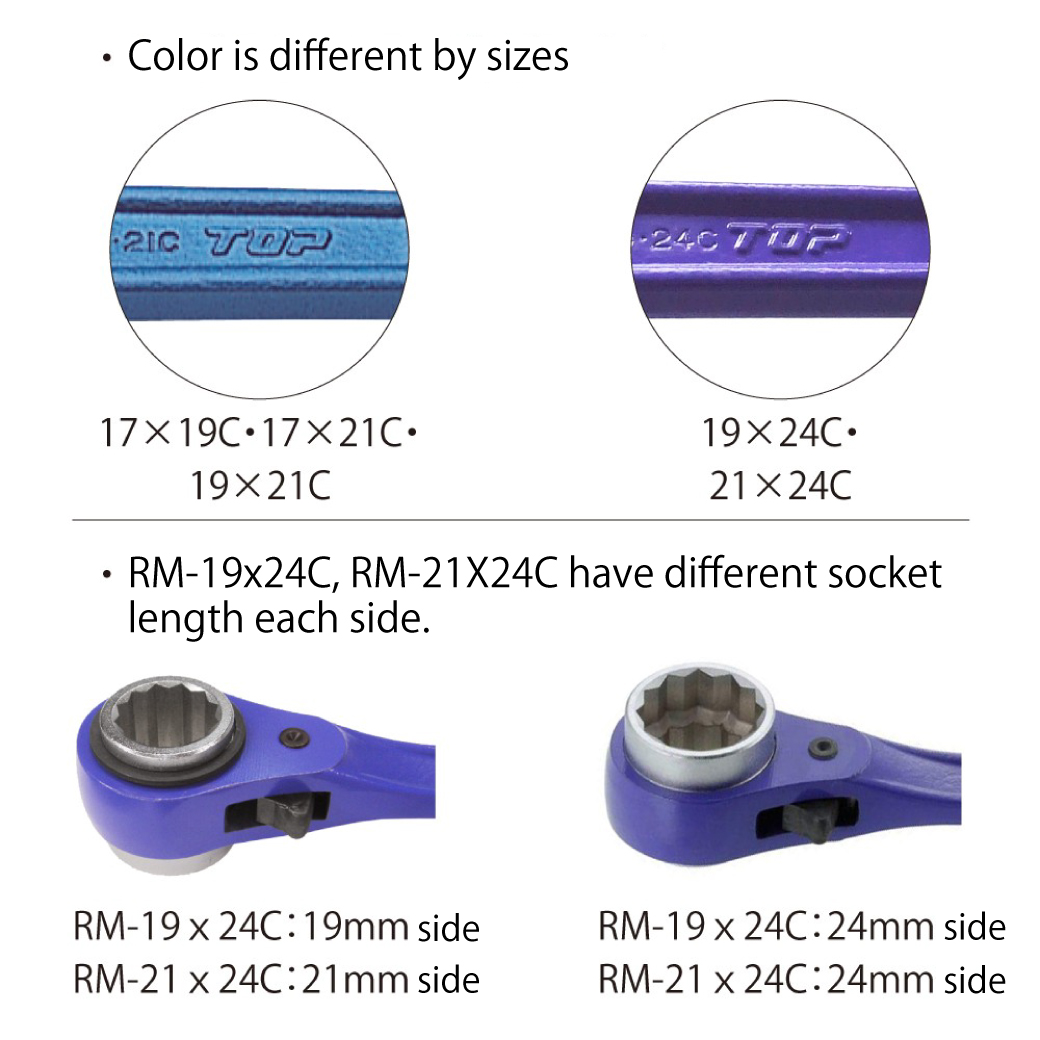

Item No. Head Outside Diameter
（mm）		 Socket Outside Diameter

d
（mm）

 Head Thickness
（mm）		 Socket Length

ℓ
（mm）

 Guaranteed Torque

N・m
D Small Large T Small Large Small Large
RM-17×19C 41.0 23.5 26.0 18.0 6.0 6.0 308.9 367.7
RM-17×21C 41.0 23.5 28.5 18.0 6.0 6.0 308.9 426.6
RM-19×21C 41.0 26.0 28.5 18.0 6.0 6.0 367.7 426.6
RM-19×24C 41.0 26.0 32.5 18.0 6.0 10.0 367.7 426.6
RM-21×24C 41.0 28.5 32.5 18.0 6.0 10.0 426.6 426.6
*JAN Codes are shown by 6 digits numbers which removed as maker code (4975180).
*The price is for each unit.

  • Light weight design

    Light weight designEfficient performance with reducing weight and fatigue.

  • 12 points (round corners)

    12 points (round corners)12 points (round corners) sockets are easier to insert nut. This surface fit design prevents damaging of bolts or nuts.

Use

  • Ideal for use when constructing Residences using the 2×4 construction method or precut construction method.
  • Suitable for attaching hole down metal fitting.

Caution

  • Adjust to the width across flats of object.
  • DO NOT extend the handle by inserting a pipe.
  • Please DO NOT use this item as a hammer.
  • Connect to safety code for fall prevention to use at height.
  • DO NOT use for purposes other than as hand tool.
