For temporary scaffolding work, With anti-slip grip
- The wide open claw switching part can quickly eliminate muddy water, sand, etc. that get in during work under harsh conditions, ensuring stable ratchet operation.
- The body is made of aluminum to achieve a lightweight.

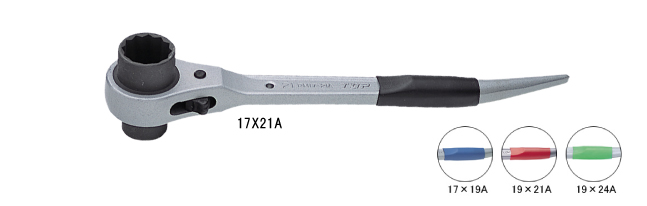

- The grip is non-slip and comes with a colored grip identify the size.
- It is compact short type which pursuing a workability.
- Off course the claw is forged and has excellent strength.
- A φ4.5mm hole for safety code.
Material：Aluminum Alloy (Body )/Cr-V(Socket)
| Item No. |
JAN Code |
List Price
（¥） |
Use Range
（mm） |
Length
（mm） |
Weight
（ｇ） |
Inner Box |
| RM-17×19A |
389114 |
7,500 |
17・19 |
241 |
235 |
6 |
| RM-17×21A |
389206 |
7,250 |
17・21 |
241 |
235 |
6 |
| RM-19×21A |
389381 |
7,500 |
19・21 |
241 |
235 |
6 |
| RM-19×24A |
389404 |
7,950 |
19・24 |
241 |
235 |
6 |

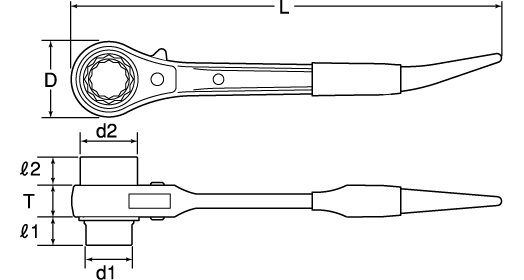

| Item No. |
Head Outside Diameter
（mm） |
Socket Outside Diameter
d
（mm） |
Head Thickness
（mm） |
Socket Length
ℓ
（mm） |
Guaranteed Torque
N・m |
| D |
Small |
Large |
T |
Small |
Large |
Small |
Large |
| RM-17×19A |
42.0 |
23.5 |
26 |
18 |
16 |
16 |
196.1 |
196.1 |
| RM-17×21A |
42.0 |
23.5 |
28.5 |
18 |
16 |
16 |
196.1 |
196.1 |
| RM-19×21A |
42.0 |
26.0 |
28.5 |
18 |
16 |
16 |
196.1 |
196.1 |
| RM-19×24A |
42.0 |
26.0 |
32.5 |
18 |
16 |
16 |
196.1 |
196.1 |
*JAN Codes are shown by 6 digits numbers which removed maker code (4975180).
*The price is for each unit.
-
PAT.PPATENT PENDING
-
Light weight designEfficient performance with reducing weight and fatigue.
-
12 points (round corners)12 points (round corners) sockets are easier to insert nut. This surface fit design prevents damaging of bolts or nuts.
Use
- Suitable for working at heights such as construction sites.
- For scaffolders, farmers, and DIY.
Caution
- The main body is made of aluminum, so please be careful not to hit or pry it as it may break.
- DO NOT extend the handle by inserting a pipe.
- Please DO NOT use this item as a hammer.
- Connect to safety code for fall prevention to use at height.
- DO NOT use for purposes other than as hand tool.
