Material：Cr-Mo
| Item No. | JAN Code | List Price （￥） |
Range （mm） |
Length（mm） | Weight （ｇ） |
Inner Box |
|---|---|---|---|---|---|---|
| VP-125 | 820075 | 3,450 | 0～20 | 135 | 140 | 6 pcs |
| VP-175 | 820150 | 3,600 | 0～35 | 180 | 300 | 6 pcs |
| VP-200 | 820310 | 3,700 | 0～35 | 210 | 400 | 6 pcs |
| VP-250 | 820235 | 3,850 | 0～40 | 230 | 520 | 6 pcs |

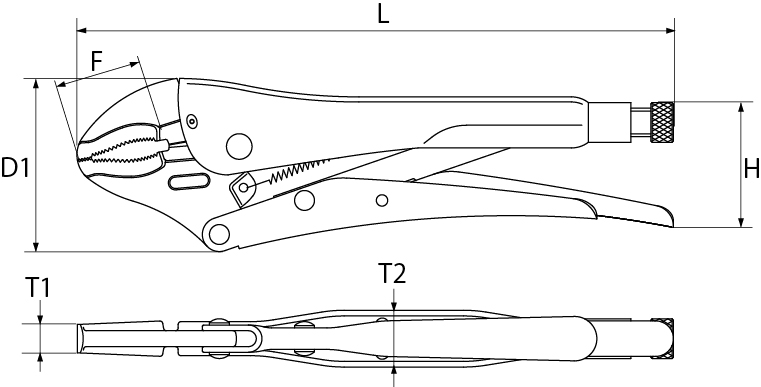

| Item No. | F （mm） |
D1 （mm） |
T1 （mm） |
T2 (mm) |
H (mm) |
Torque (N・m) |
Package（mm） H×W |
|---|---|---|---|---|---|---|---|
| VP-125 | 23 | 40 | 8 | 14.5 | 37 | 82 | 185×60 |
| VP-175 | 31 | 56 | 10.6 | 17 | 41 | 94 | 235×75 |
| VP-200 | 34 | 61 | 10.5 | 20 | 44 | 118 | 265×80 |
| VP-250 | 37 | 66 | 10.8 | 19 | 47 | 141 | 295×90 |
*JAN Codes are shown by 6 digits numbers, which removed as maker code (4975180).
*The price is for each unit.
Use
- Use as a holding tool for temporal fixing.
Caution
- Please use a proper clumps for fixing work.
- Please use a proper cutting pliers for cutting work as well.
- Must wear eyes protector to cut.
- DO NOT use as any other purposes than as hand tool.
