THREE LAYERS WATER PUMP PLIERS

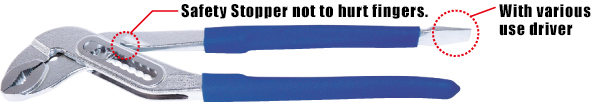

THREE LAYERS WATER PUMP PLIERS(With slotted screwdriver)

  • The three-layers structure prevents backlash and grasps strong.
  • The rhombus-shaped jaw can be tightened firmly without sliding the pipes etc.
  • The jaw processed a high-frequency induction hardening, excellent for abrasion resistance.
  • Suitable for attaching and detaching water pipe, gas pipe, and air pipe.

●Catch an object strongly! Added A New Size! (WP3-300)

“Three layers” mechanism

  • It won’t have a backlash over a long period of time by Three layered structure. No projection of caulking pin.

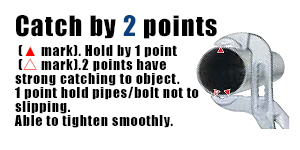

Rhombic mouth

  • 2 points (▲)catch the object strongly.
  • 1 point (△)hold pipe and bolt not to slipping. These points provide smooth tighten work.
  •  A high frequency induction hardeningon the jaw has abrasion resistance and it won’t have a backlash over a long period of time and continite the ability of catch.
  • Notchesd is fine, able to work with optimal size.
  • The soft grip reduce a pain in the hand, also, the emboss processing prevent slipping.

Material：Special Tool Steel

Item No. JAN Code List Price

（￥）

 Range

（mm）

 Length

（mm）

 Weight

（ｇ）

 Inner Box
WP3-250 490933 6,600 ●φ6～51（Round bar・Pipes）
●flat-to-flat distance of a hexagon　5.5～50		 253 305 6 pcs
WP3-300 490940 8,250 ●φ9.5～70（Round bar・Pipes）
●flat-to-flat distance of a hexagon　9～71		 316 535 6 pcs
Item No. Head Length

（mm）

 Head Thickness

（mm）

 Handle Width

（mm）

 Jaw Stage Torque

(N･m)

 Package（mm）
Heght×Widh
WP3-250 38 7 50 9 Steps 89.3 315×95
WP3-300 48 8.6 46 11 Steps 119.2 371×98
*JAN Codes are shown by 6 digits numbers, which removed as maker code (4975180).
*Price is for each unit.
300　WP-3300　WP3300　三枚合わせウォーターポンププライヤー

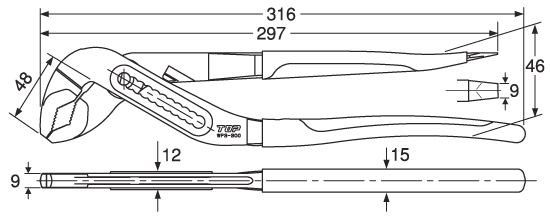

THREE LAYERS WATER PUMP PLIERSDrawings

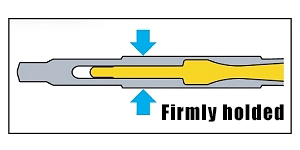

  • It can be used by hand operation.

    It can be used by hand operation.This item can be used for not only electric impact screw drivers but also hand tools.

  • 3 layered

    3 layered3 layered construction is more rigid and durable than ordinary type.

Use

  • Suitable for attaching and detaching water, gas, air or etc pipes and connectors of plumbing.
  • For an electrical installation and air conditioner work.
  • Able to use for attaching and detaching various bolts and nuts.

Caution

  • It catches an object properly and it act like a pipe wrench however, please use it only as pliers.
  • The grip is not insulation, Be aware not to get a electric shock.
  • DO NOT use as any other purposes than as hand tool.
