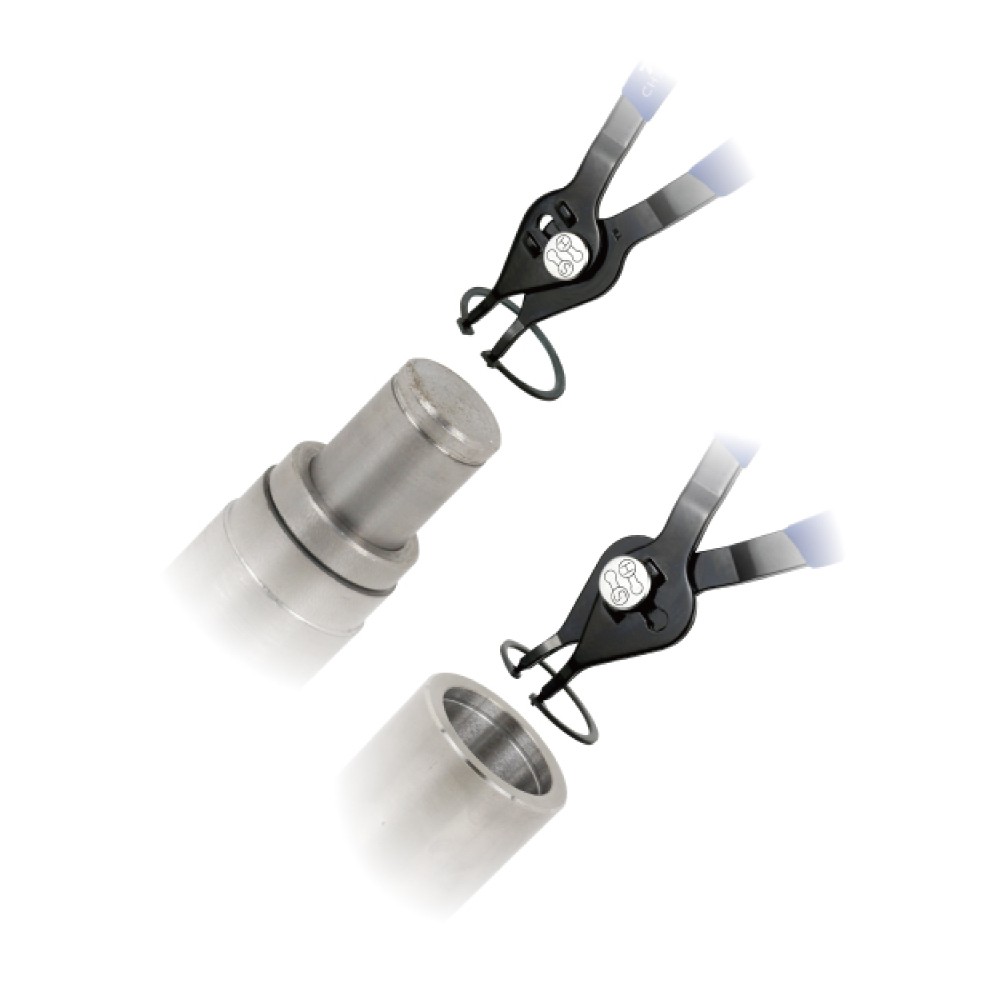

Easy switching! For attaching and detaching snap rings.
Watch the video that show to how to switching the patterns ⇒Click here
Watch the video that show to how to switching the patterns ⇒Click here
Item No. | List Price(¥) | Ring Size (mm) | JAN Code | Length L(mm) | Weight (g) | Inner Box | |
---|---|---|---|---|---|---|---|
Shaft | Hole | ||||||

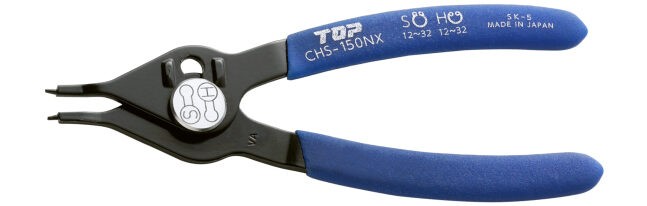

CHS-150NX | 4,650 | 12~32 | 12~32 | 532794 | 150 | 80 | 6pcs |
CHS-200NX | 5,800 | 19~40 | 19~65 | 532831 | 195 | 150 | 6pcs |

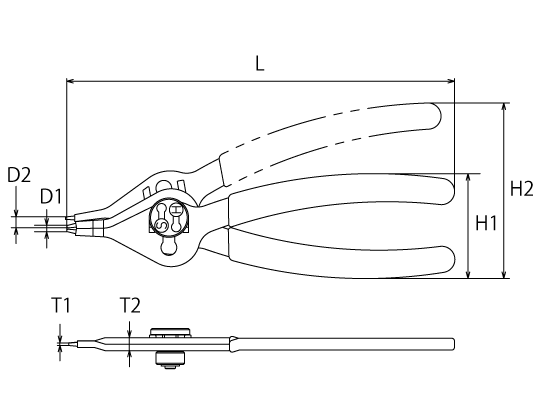

Item No. | D1(mm) | D2(mm) | H1(mm) | H2(mm) | T1(mm) | T2(mm) | Guaranteed Torque(N・m) | Package(mm) H×W |
---|---|---|---|---|---|---|---|---|
CHS-150NX | 3.2 | 3.4 | 40 | 68 | 1 | 5 | 11.8 | 197×70 |
CHS-200NX | 4.5 | 5.5 | 62 | 94 | 1.8 | 6.4 | 34.3 | 247×80 |
