VERTICAL WIDE PIPE WRENCH

VERTICAL WIDE PIPE WRENCH

  • Shape is same as Corner wrench, though jaw opening is same as pipe wrench.
  • Able to work as narrow space.
  • Able to turn large diameter pipes as well.
  • TPW-0832 is is same as JIS’s pipe wrench 300mm to catch maximum 32A.
  • TPW-1550-65 is same as JIS’s pipe wrench 600mm to catch maximum 65A and it is able to tighten a cap nut with the PP joint easily.
  • Shape is same as Corner wrench, though jaw opening is same as pipe wrench.
  • Able to work at narrow space where a conventional pipe wrench couldn’t work.
  • Able to turn large diameter pipes that could not be gripped with conventional corner wrenches as well.
  • The side of the head in the screw tightening direction has no protrusion such as the heads of caulking pins so, it is able to use 2 wrenches with zero gaps. Use with VERTICAL MOTOR WRENCH .
  • Short handle. Easy to use in drilling hole.
  • Made of Aluminum Alloy. Revolutionary Lightweight.







Material：Handle: Aluminum Alloy ／Jaw: Cr-V

Item No. List Price

（￥）

 Targets Guaranteed Torque

（N・m）

 Weight

（ｇ）

 Package

（H×W）

 Inner Box JAN Code
Nominal Dimension Diameter

（mm）
TPW-0832 16,800 8A～32A Φ8～50 392 630 – 6 293961
TPW-1550-65 21,450 15A～65A Φ20～88 758 1,100 – 6 293954

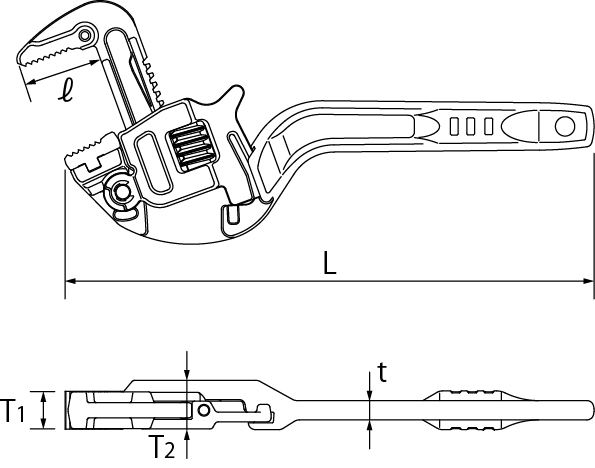

Item No. L

（mm）

 ℓ

（mm）

 T1

（mm）

 T2

（mm）

 t

（mm）
TPW-0832 275 41.6 19 25.5 10
TPW-1550-65 350 50.3 21 28 12
＊JAN Codes are shown by 6 digits numbers which removed as maker code (4975180).
＊List Price is for each unit.

TPW0832　TPW1550-65　TPW155065 縦型アルミワイドパイレン 立て型アルミワイドパイレン

VERTICAL WIDE PIPE WRENCHDrawings

  • PAT

    PATPATENTED

  • Light weight design

    Light weight designEfficient performance with reducing weight and fatigue.

Use

  • Recommend to use 2 of this product to connect a various piping pipe and joint.
  • Sutable for a polyethylene pipe metal joint for water supply or a cap nut.

Caution

  • Turn it slowly to prevent idling and injure.
  • NOT suitable for rusted existing pipe nor demolition work.
  • DO NOT extend the handle by inserting a pipe.
  • Please do not use this item as a hammer.
  • DO NOT use for purposes other than as a hand tool.
