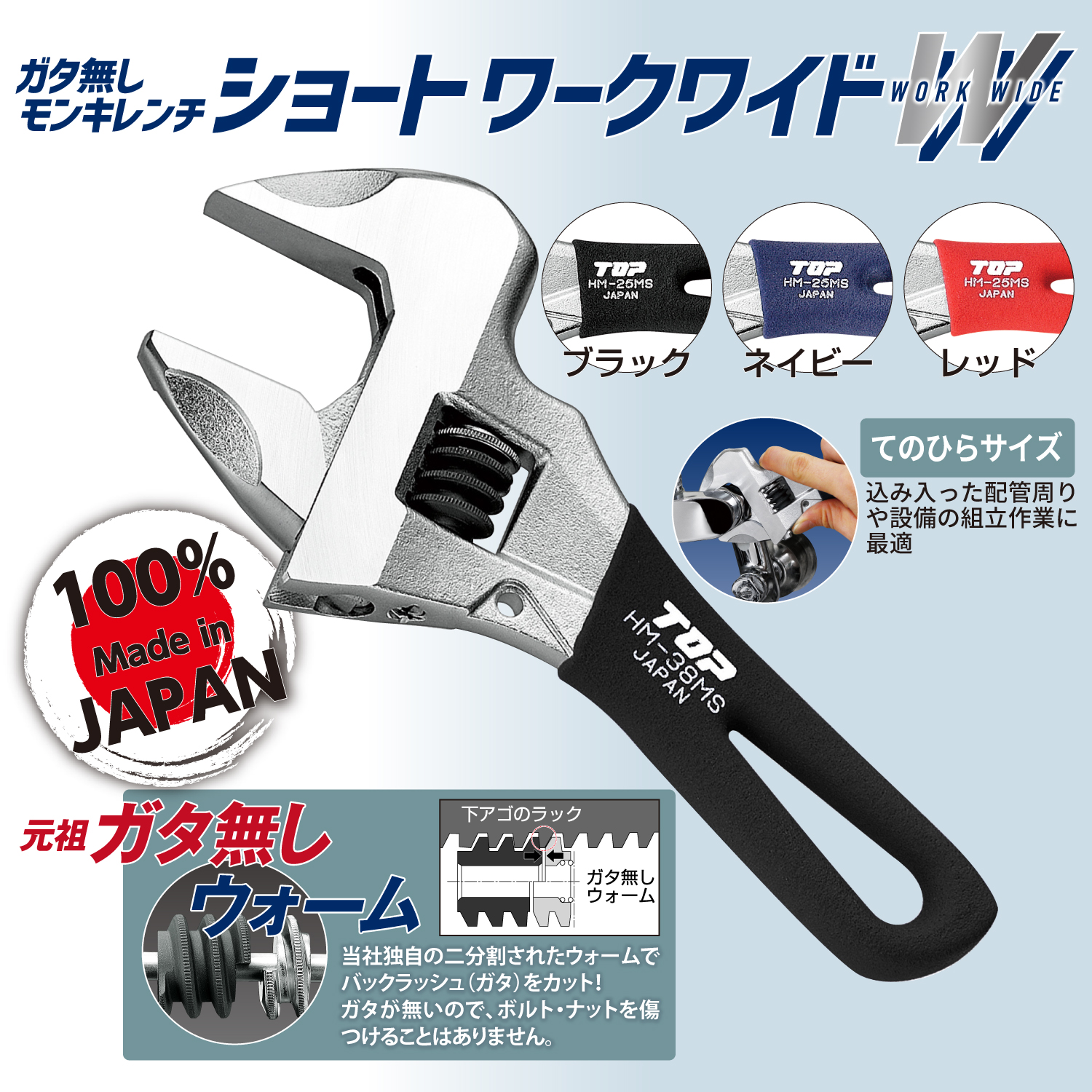

SHORT WORK WIDE WRENCH

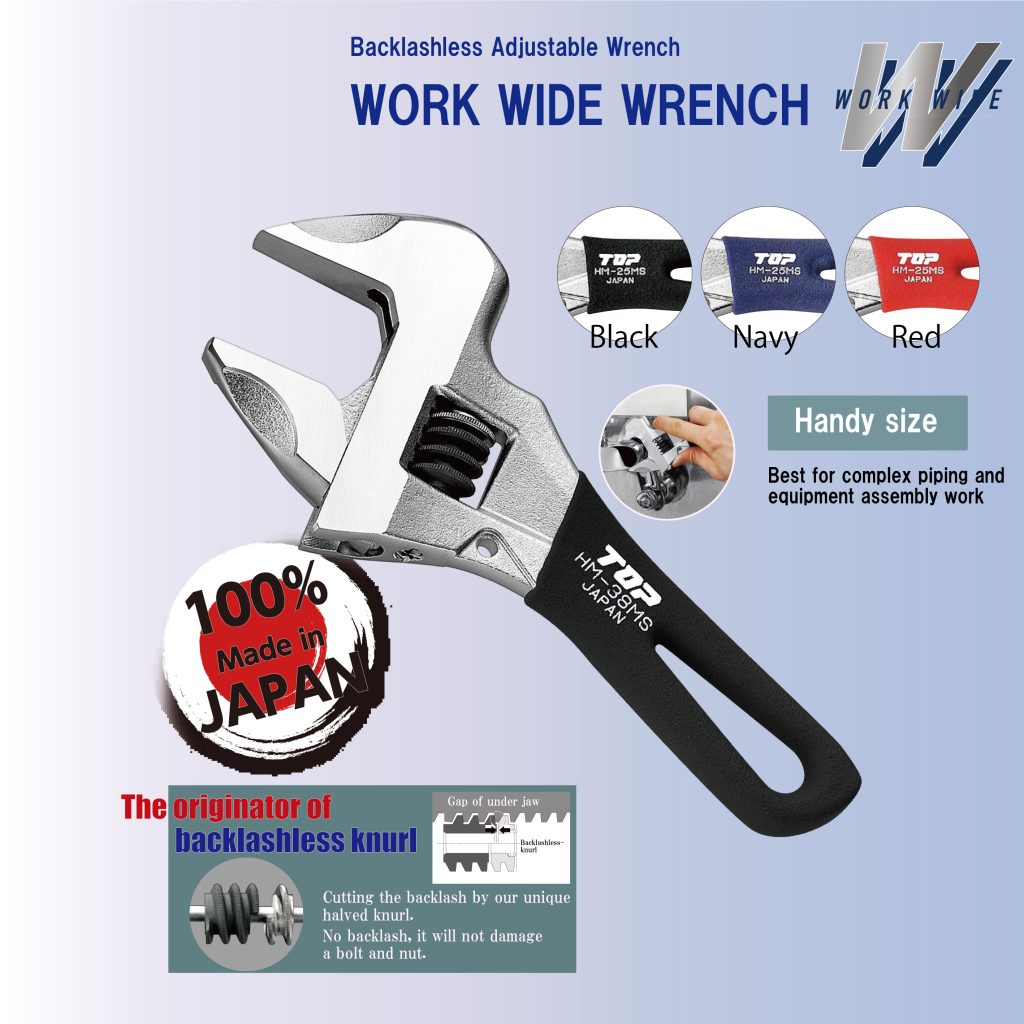

SHORT WORK WIDE WRENCH(Backlashless Adjustable Wrench)

  • Original backlashless knurl. Non damage on bolts and nuts.
  • For working around water and indoor work, and construction metal fitting.
  • Wide-open jaw.
  • A hole for a safety code.
  • Asymmetry handle for easy to apply the force.
  • In-house integrated product.
  • Original backlashless knurl. Non damage on bolts and nuts.
  • For working around water and indoor work, and construction metal fitting.
  • Wide-open jaw.
  • A hole for safety code.
  • Asymmetry handle for easy to apply the force.
  • In-house integrated product.
  • 3 colors of grips.
  • Hard and tough vinyl grip.

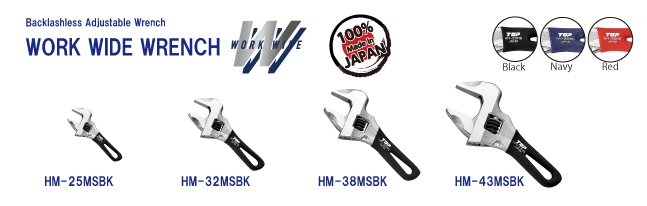

Lineup

Work Wide Wrench  Work Wide With Grip Wrench Short Work Wide Wrench



Material:Cr-V

Item No. List Price
(¥)
Grip Color Opening Width
(mm)
Weight
(g)
Guaranteed Torque
(N・m)
Inner Box JAN Code
HM-25MSBK 4,700 Black 0~25 120 163.9 6 133908
HM-32MSBK 5,350 0~32 200 305.1 6 133915
HM-38MSBK 6,800 0~38 330 508.5 6 133922
HM-43MSBK 8,250 0~43 470 864.4 6 133939
HM-25MSNB 4,700 Navy 0~25 120 163.9 6 133991
HM-32MSNB 5,350 0~32 200 305.1 6 134004
HM-38MSNB 6,800 0~38 330 508.5 6 134011
HM-43MSNB 8,250 0~43 470 864.4 6 134028
HM-25MSR 4,700 Red 0~25 120 163.9 6 134073
HM-32MSR 5,350 0~32 200 305.1 6 134080
HM-38MSR 6,800 0~38 330 508.5 6 134097
HM-43MSR 8,250 0~43 470 864.4 6 134103
Item No. L
(mm)
D
(mm)
T1
(mm)
T2
(mm)
t
(mm)
HM-25MSBK 120 52 6 10.5 9
HM-32MSBK 141 63 7.5 13 10.5
HM-38MSBK 165 76 9 15.4 11
HM-43MSBK 183 92 10 18.3 12
HM-25MSNB 120 52 6 10.5 9
HM-32MSNB 141 63 7.5 13 10.5
HM-38MSNB 165 76 9 15.4 11
HM-43MSNB 183 92 10 18.3 12
HM-25MSR 120 52 6 10.5 9
HM-32MSR 141 63 7.5 13 10.5
HM-38MSR 165 76 9 15.4 11
HM-43MSR 183 92 10 18.3 12

*JAN Codes are shown by 6 digits numbers which removed as maker code (4975180).

*The price is for each unit.

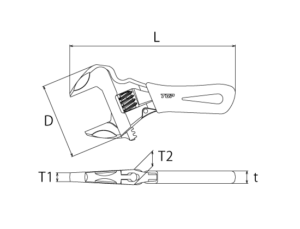

SHORT WORK WIDE WRENCHDrawings

Use

  • Attaching and detaching a bolt and nut.
  • For working around water and indoor work, and construction metal fitting.
  • For water service installations.
  • For air conditioners.
  • For architectural fittings.

Caution

  • DO NOT extend the handle by inserting a pipe.
  • DO NOT hit with a hammer.
  • DO NOT use for purposes other than as a hand tool.
